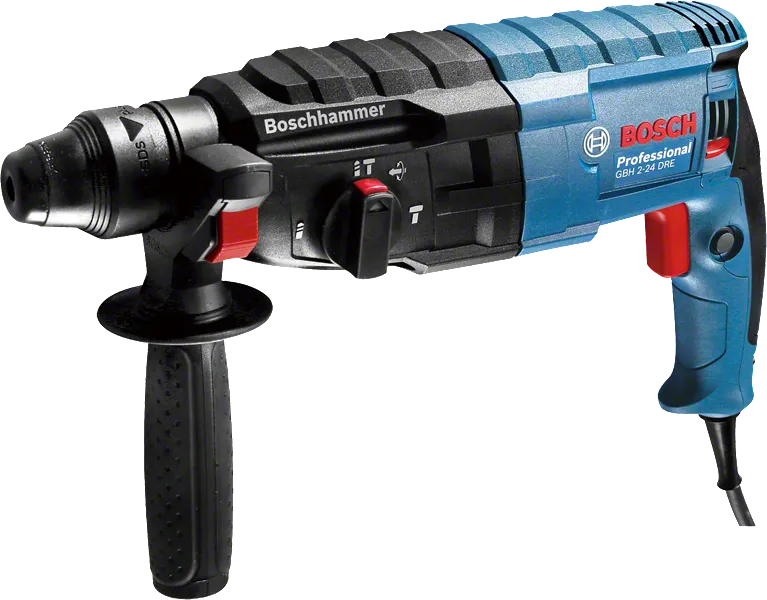

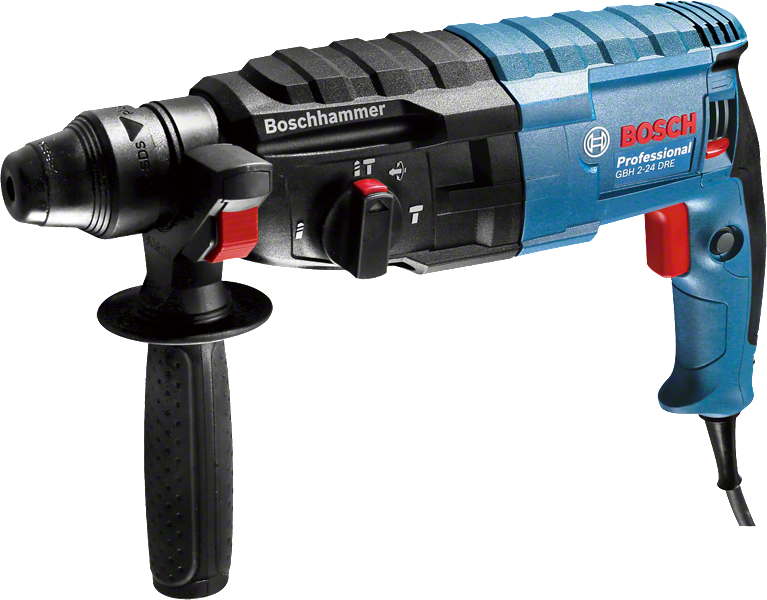

Rotary Hammer with SDS plus GBH 2-24 DRE Professional

The new standard in concrete drilling!

Technical data
Additional data
Rated input power 790   W
Impact energy 2.7   J
Impact rate at rated speed 0 – 4,200   bpm
Rated speed 0 – 930   rpm
Weight 2.8   kg

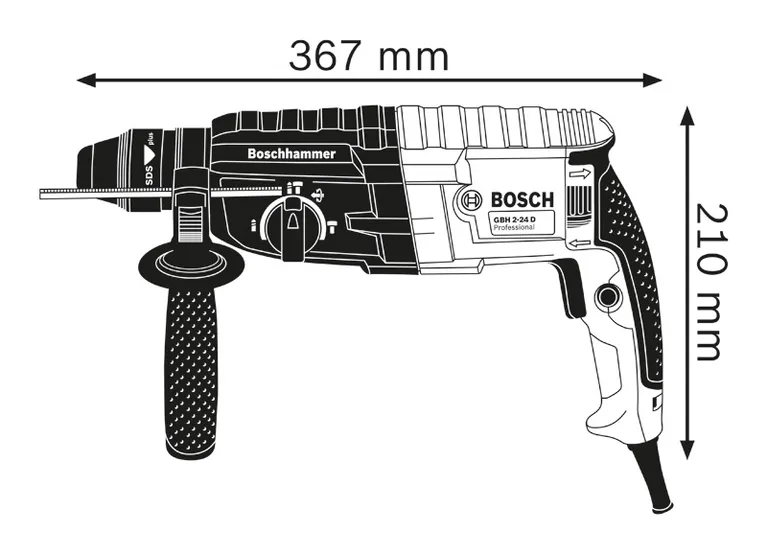

Tool dimensions (length) 367   mm
Tool dimensions (height) 210   mm
Tool holder SDS plus
Drilling range
Max. drilling diameter masonry, core cutters 68   mm
Max. drilling diameter in metal 13   mm
Max. drilling diameter in wood 30   mm

Advantages

The new standard in concrete drilling!

  • Best drilling speed in class due to optimized gear housing set
  • Enhanced durability and hard work due to powerful 790 W motor
  • Spare parts interchangeability and easy maintenance because of smart design

Functions

Construction The professional power tools for construction from Bosch.
What’s Included in this Package
in carrying case
in carrying case
Order number: 0 611 272 1K0
  • Carrying case
Product variations (2)
in carrying case

Selected variation

in carrying case

Order number: 0 611 272 1K0

This product includes:

  • Carrying case
Selected variation
with auxiliary handle

Selected variation

with auxiliary handle

Order number: 0 611 272 100

This product includes:

  • Carrying case 1 619 P10 938
  • Auxiliary handle 2 602 025 141
  • Depth stop 210 mm 1 613 001 010
Product details
The GBH 2-24 DRE in action!
