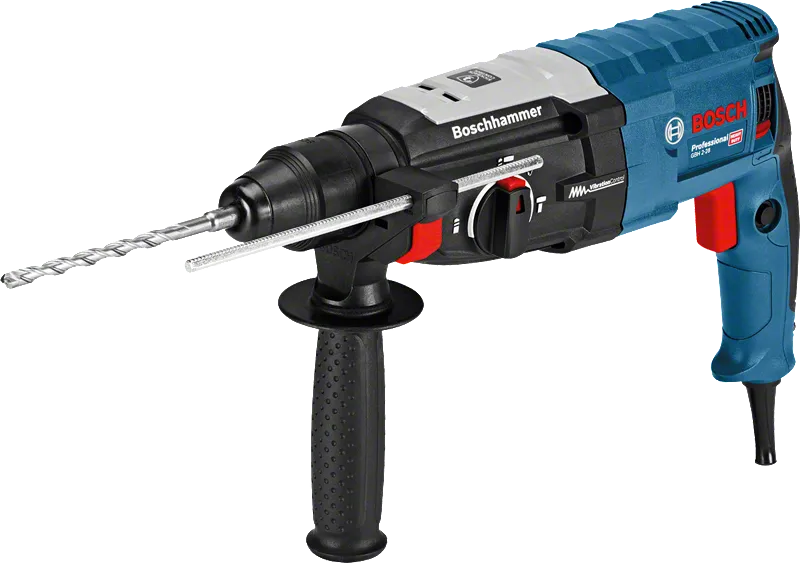

Rotary Hammer with SDS plus GBH 2-28 Professional

Top performance with intelligent KickBack Control

Technical data
Additional data
Rated input power* 880   W
Impact energy* 3.2   J
Impact rate at rated speed 0 – 4,000   bpm
Rated speed 0 – 900   rpm
Weight 2.9   kg

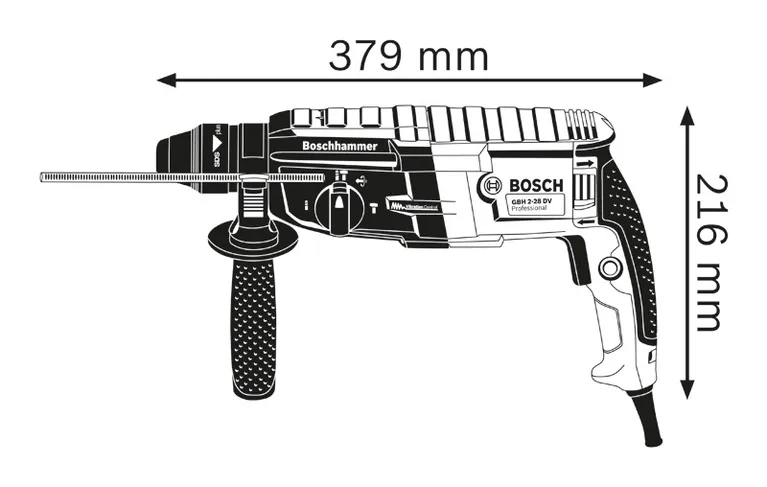

Tool dimensions (length) 379   mm
Tool dimensions (height) 216   mm
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits* 4 – 28   mm
Opt. appl. range concrete, hammer drill bits 8 – 16   mm
Drilling diameter in concrete with core cutters 68   mm
Max. drilling diameter masonry, core cutters 68   mm
Max. drilling diameter in metal 13   mm
Max. drilling diameter in wood 30   mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 11.5   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Chiselling)
Vibration emission value ah 11   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.

Advantages

Top performance with intelligent KickBack Control

  • Best performance in its class with improved power
  • Increased user protection with KickBack Control (KBC) in order to minimise the risk of injury
  • Active vibration damping with counter oscillator for minimal vibration levels

Functions

Optimal power transmission for small hammers
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Comfortable handling of the tool thanks to softgrip
Combi hammer with chisel function No rotary motion; impact effect only
Cable length 4.0 m
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Construction The professional power tools for construction from Bosch.

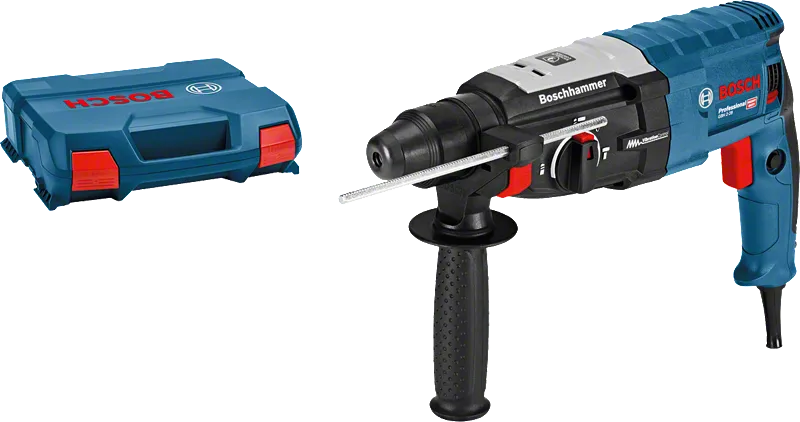

What’s Included in this Package
in carrying case with accessory set
in carrying case with accessory set
Order number: 0 611 267 500
  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth

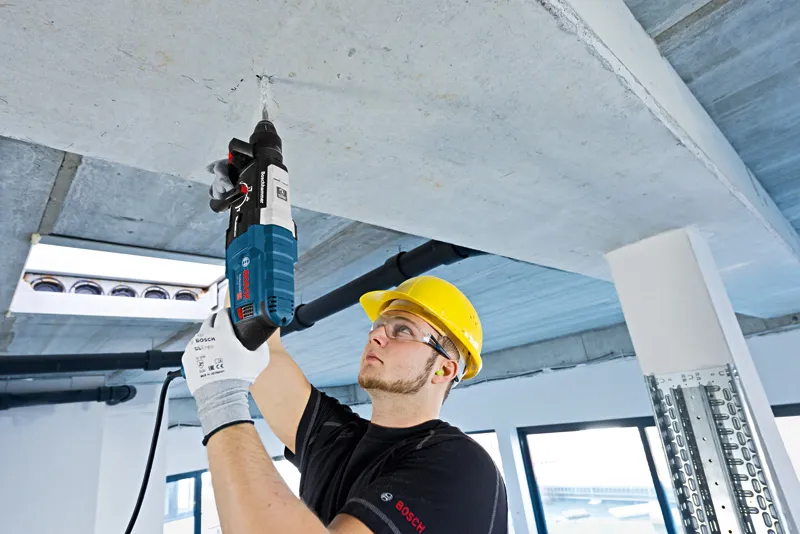

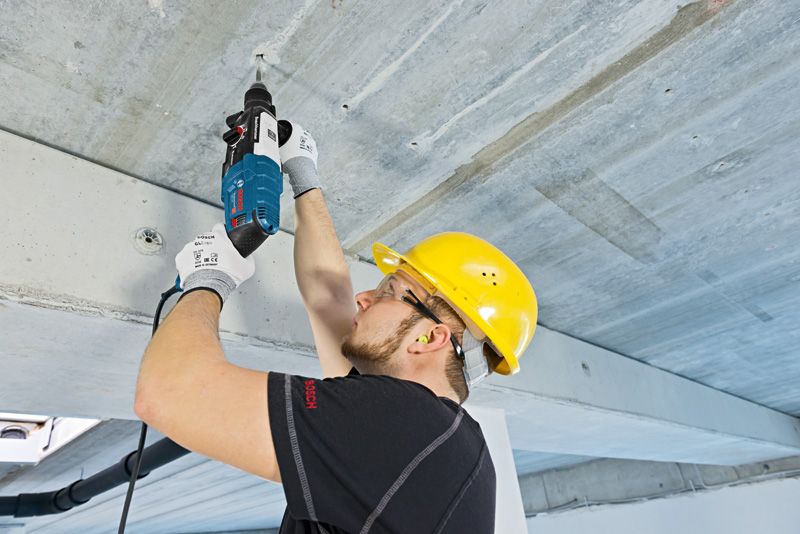

The GBH 2-28 in action!
