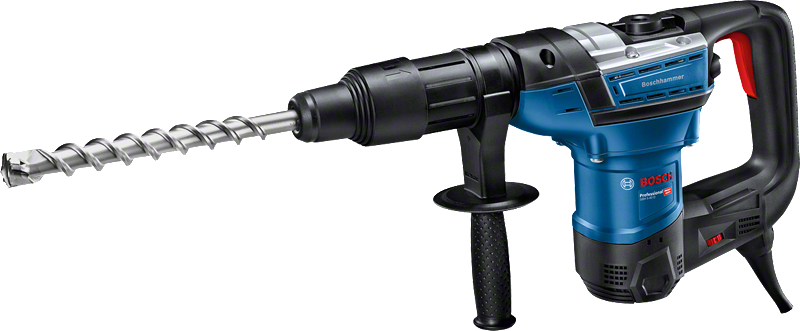

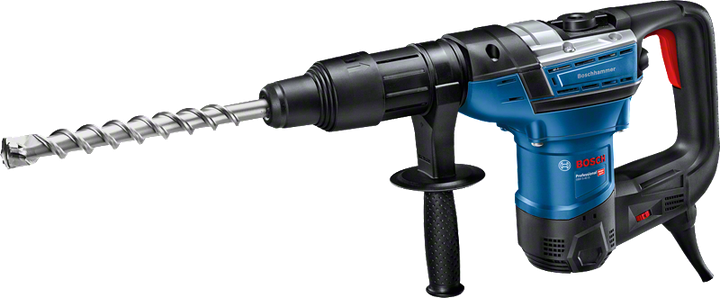

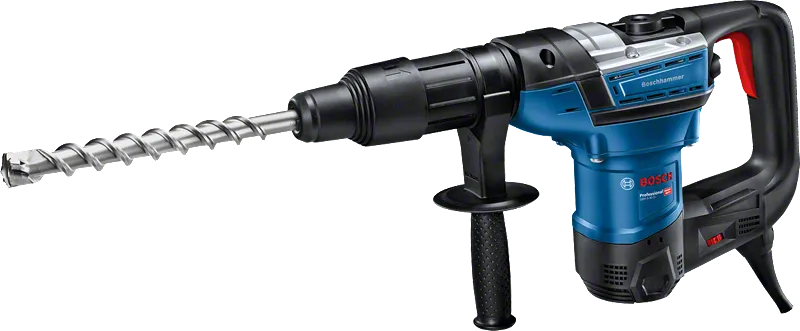

Rotary Hammer with SDS max GBH 5-40 D Professional

The powerful hammer with fastest drilling progress in its class

Technical data
Additional data
Rated input power* 1,100 W
Impact energy* 8.5 J
Impact rate at rated speed 1,500 – 2,900 bpm
Rated speed 170 – 340 rpm
Weight 6.8 kg
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits* 12 – 40 mm
Drilling dia. concrete, breakthrough drill bits 45 – 55 mm
Drilling diameter in concrete with core cutters 40 – 90 mm
Max. drilling diameter masonry, core cutters 90 mm
Max. drilling diameter concrete 40 mm
Opt. appl. range concrete, hammer drill bits 18 – 32 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 14 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Chiselling)
Vibration emission value ah 11.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93.5 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.

Advantages

The powerful hammer with fastest drilling progress in its class

  • Fastest drilling progress – 30% faster than its predecessor
  • High material removal rate – 50% more impact energy than existing GBH 5-38 D
  • Perfect handling – well balanced tool for all applications

Functions

Construction The professional power tools for construction from Bosch.
What’s Included in this Package
in carrying case with accessory set
in carrying case with accessory set
Order number: 0 611 269 000
  • Auxiliary handle
  • Carrying case
  • Cleaning cloth
  • Grease tube
  • Strap
