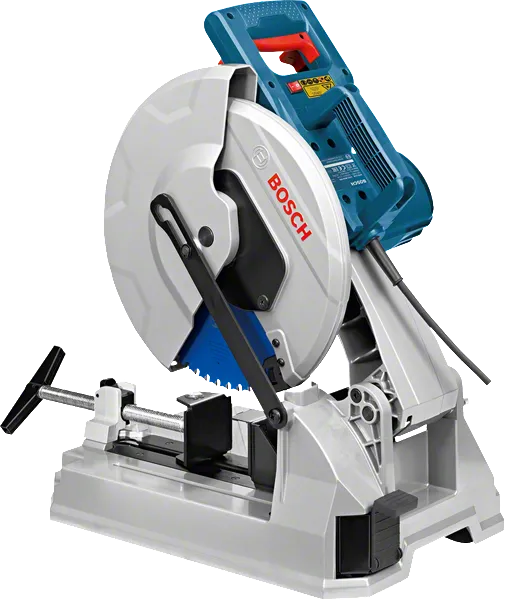

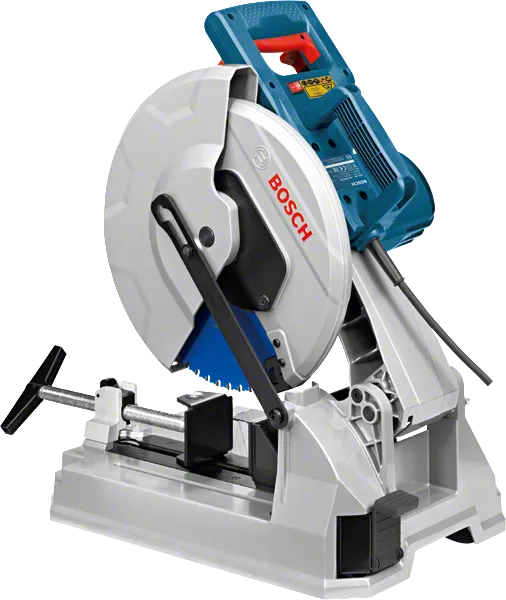

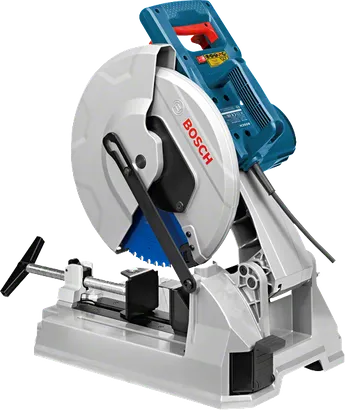

Metal Cut-off Saw GCD 12 JL Professional

Precise results, less rework and up to 100% spark-free

Technical data
Additional data
No-load speed* 1,500   rpm
Rated input power 2,000   W
Cutting capacity at rectangle 0º 158 x 80   mm
Cutting capacity at square 0º 100 x 100   mm
Cutting capacity at L-profile 0º 110 x 110   mm
Cutting capacity at rectangle 45º mitre 85 x 85   mm
Cutting capacity at square 45º mitre 85 x 85   mm
Cutting capacity at L-profile 45º mitre 85 x 85   mm
Tool dimensions (width x length x height) 327 x 517 x 383   mm
Weight* 20   kg
Total vibration values (Cutting metal)
Vibration emission value ah 3.5   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 100 dB(A); Sound power level 113 dB(A). Uncertainty K= 3 dB.

Advantages

Precise results, less rework and up to 100% spark-free

  • Precise results and little rework thanks to minimum discolouration and low levels of burr formation with “Expert for Steel” saw blades
  • Integrated laser allows precise cutting guidance
  • Up to 100% spark-free for a safe working environment

Functions

 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Metalworking The professional power tools for metalworking from Bosch.
What’s Included in this Package

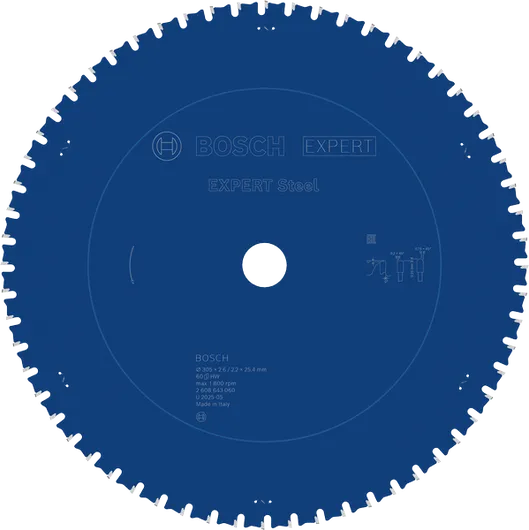

with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060)
with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060)
Order number: 0 601 B28 000
  • 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 2 608 643 060

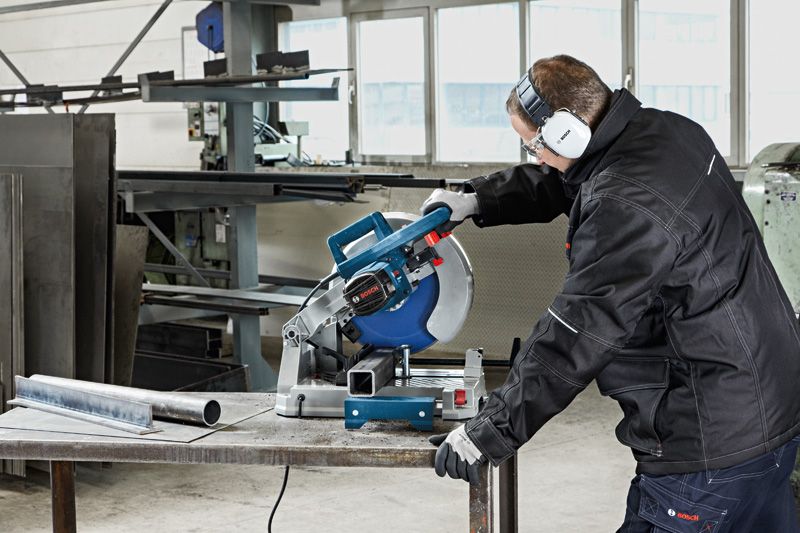

The GCD 12 JL in action!
