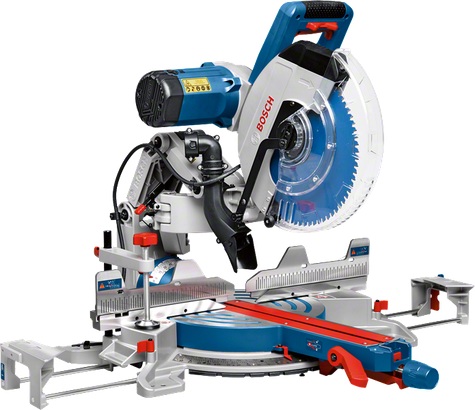

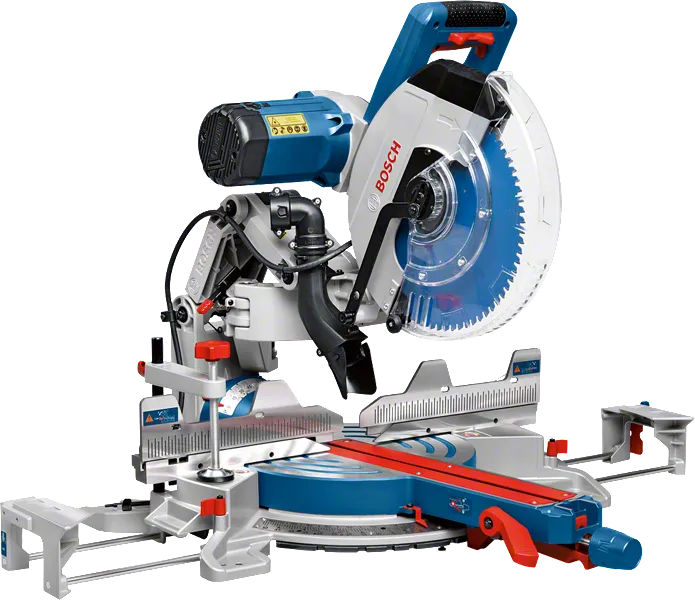

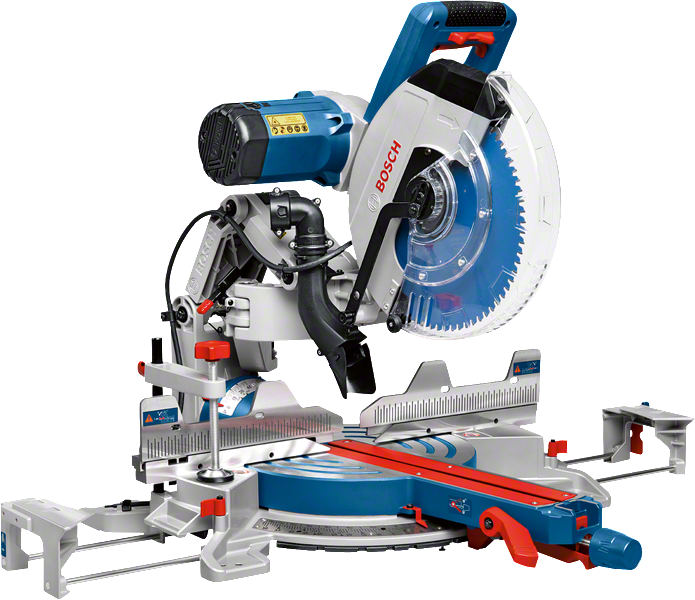

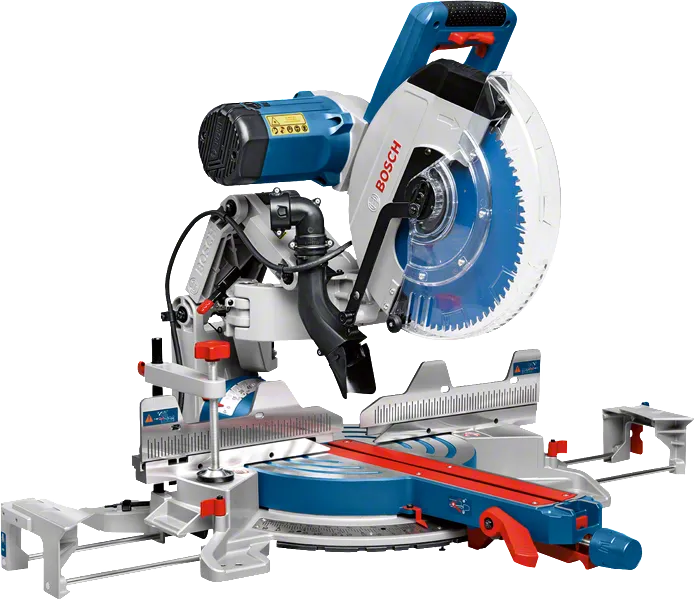

Mitre Saw GCM 12 GDL Professional

Unmatched cutting smoothness and durable precision

Technical data
Additional data
Mitre setting* 52 ° L / 60 ° R
Saw blade diameter* 305   mm
Bevel setting* 47 ° L / 47 ° R
Rated input power 2,000   W
Cutting capacity, 0° 104 x 341   mm
Cutting capacity, 45° mitre 104 x 240   mm
Cutting capacity, 45° bevel 51 x 341   mm

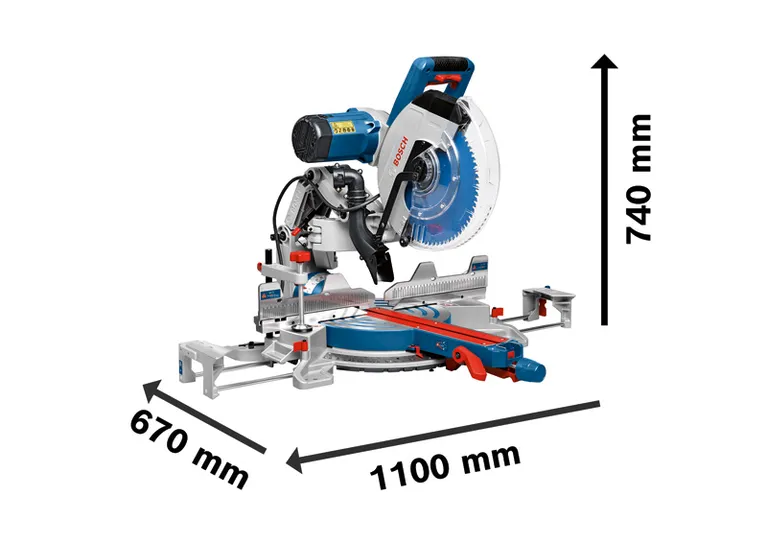

Tool dimensions (width x length x height) 670 x1100 x740   mm
No-load speed 3,800   rpm
Saw blade bore diameter 30   mm
Weight 32.1   kg

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.

Advantages

Unmatched cutting smoothness and durable precision

  • Extreme cutting smoothness because of innovative and maintenance-free gliding system
  • Integrated dual line laser supports accurate cuts
  • High vertical and horizontal cutting capacity

Functions

Laser class 2 Laser class for measuring tools.
Easy disc / tool change thanks to spindle lock
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster Harmful dust is extracted immediately: Protects your health Less dust: Longer lifetime of tool and accessories
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
Soft start as the load and torque of the motor are temporarily reduced during start-up.
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
What’s Included in this Package
with collet
with collet
Order number: 0 601 B23 600
  • Collet (spare part number 1 609 B02 585)
  • Insert plate (spare part number 1 609 B02 375)
  • Internal hexagon (spare part number 1 609 B00 256)

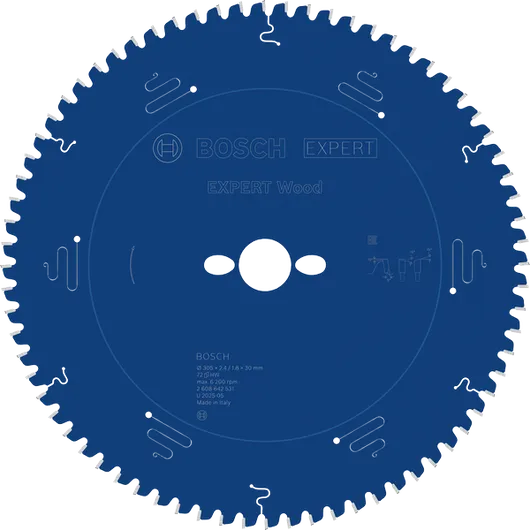

  • 1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72 2 608 642 531

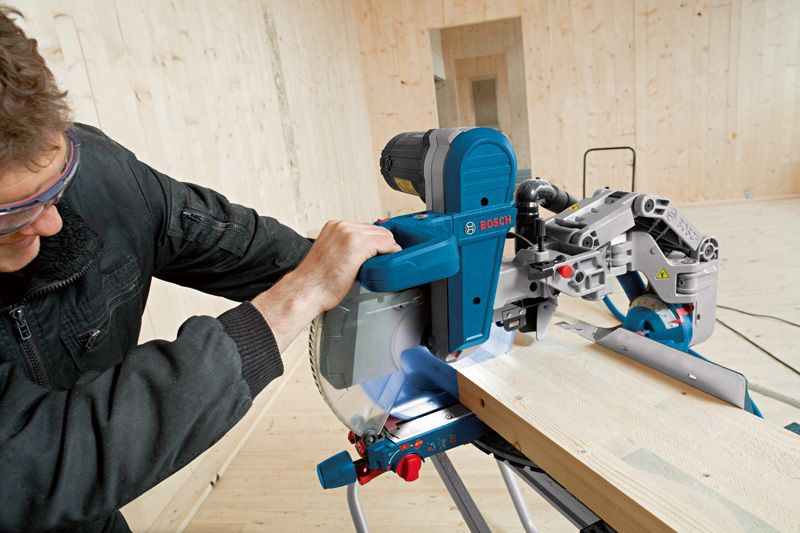

The GCM 12 GDL in action!
