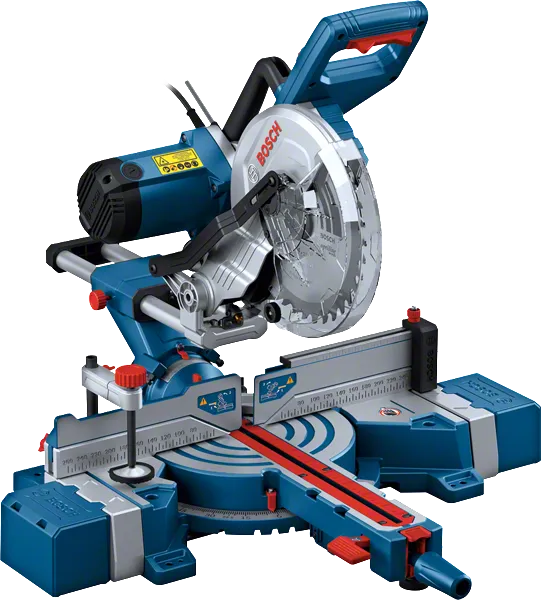

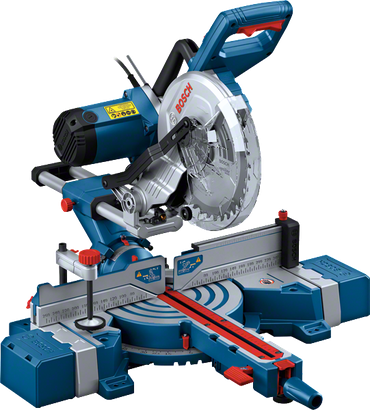

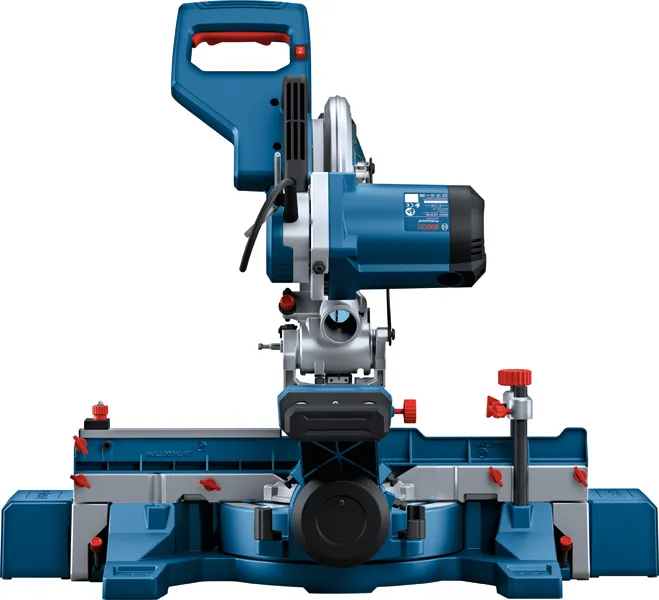

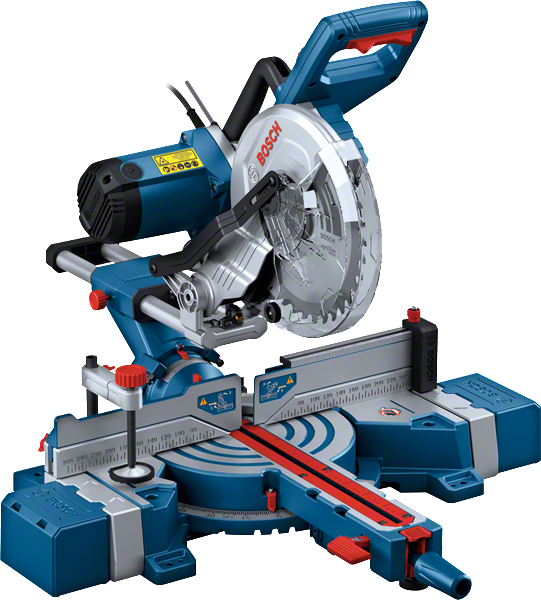

GCM 254 D Professional
Mitre Saw
Long-lasting accuracy in every cut

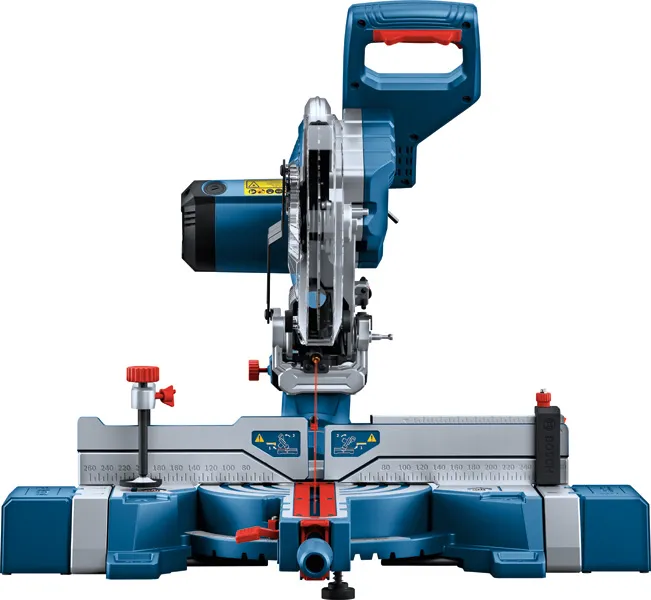

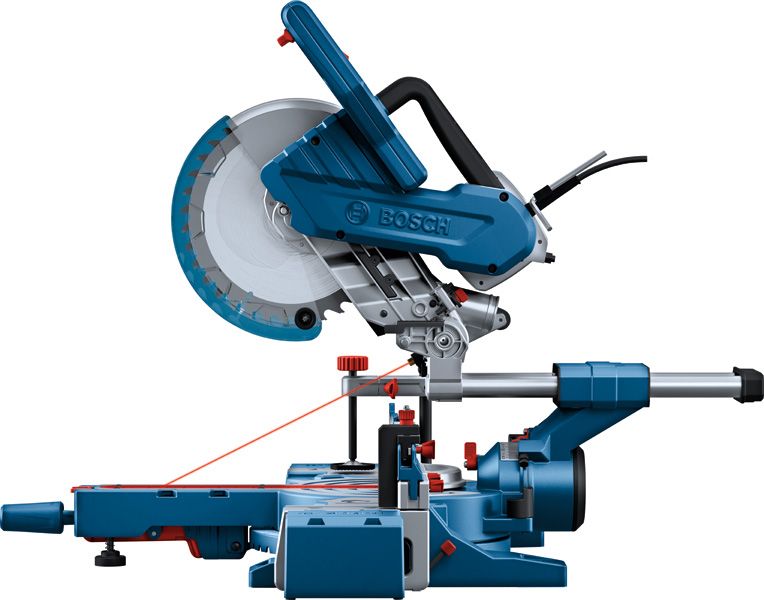

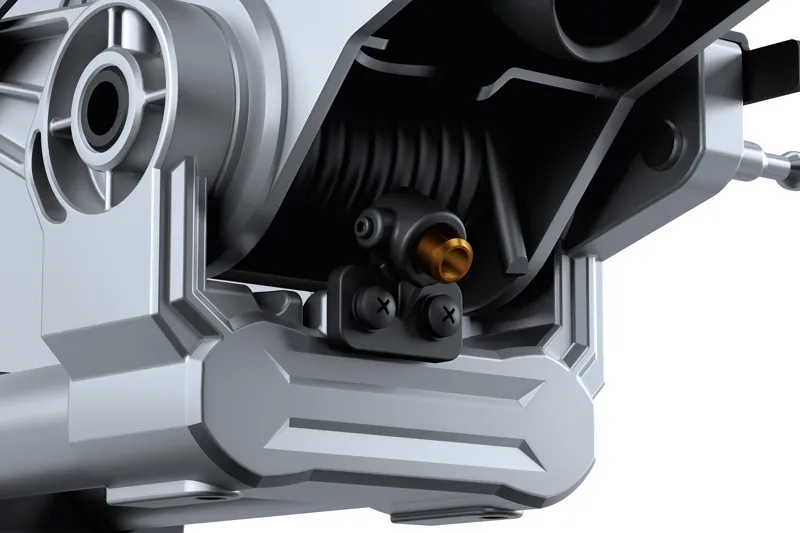

- Consistently accurate cuts with the help of a highly visible laser line

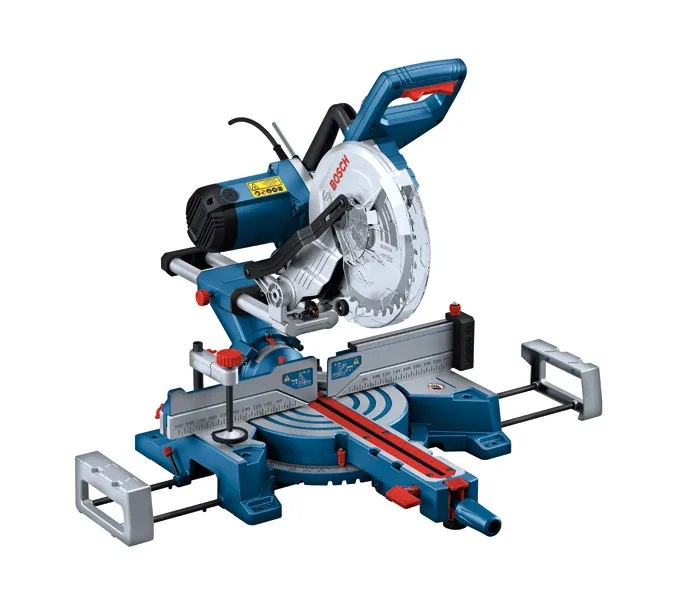

- Better support for various material cutting provided by detachable box extension
- Easier multiple repeating cuts thanks to length gauge
- Larger cuts with superior precision with 310 mm sliding capacity
Functions & key features
Available in 2 onlineshop(s)
Buy now
GCM 254 D Professional
Your Selection
New
Order number: 0 601 B53 000
Included in this variant
-
Supporting boxOrder number: 1 619 PB9 050
-

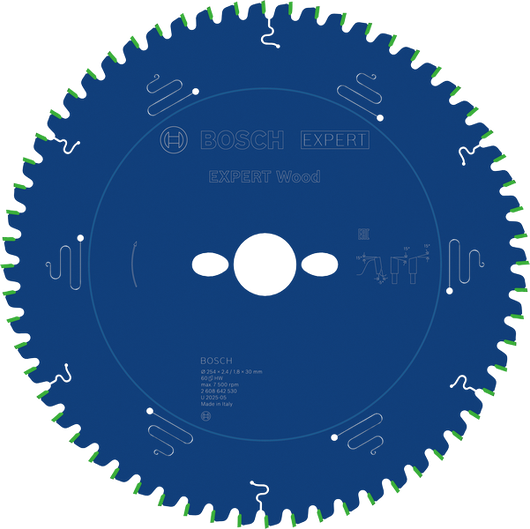

1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 40Order number: 2 608 640 443
-
Dust bagOrder number: 1 619 PB6 246
Technical data
Additional data |
|
|---|---|
| Rated input power | 1,800 W |
| Saw blade diameter | 254 mm |
| Mitre setting | 47 ° L / 52 ° R |
| Bevel setting | 45 ° L / 45 ° R |
| Saw blade bore diameter | 30 mm |
| Cutting capacity, 0° | 90 x 310 mm |
| Cutting capacity, 45° mitre | 90 x 210 mm |
| Cutting capacity, 45° bevel | 45 x 310 mm |
| Tool dimensions (width x length x height) | 574 x779 x645 mm |
| No-load speed | 4,800 rpm |
| Weight | 17.9 kg |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.
GCM 254 D Professional: Further information
Product Highlights
The GCM 254 D Professional corded miter saw is tough, best-in-class, and designed for easy operation, accurate repetitive cutting, and a long life. For superior precision, a highly visible laser indicates the cutting line and easily allows consistent cuts. Cutting long and large materials with higher stability and accuracy is supported by the detachable box extension. Convenient easy cutting of the same lengths is provided by the length gauge. Lager cuts with superior precision are supported by the 310 mm sliding capacity.
Equipment & Application

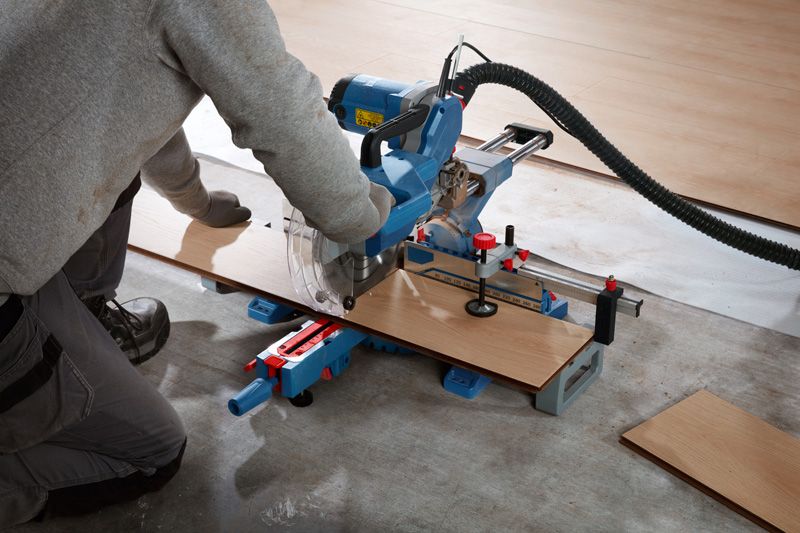

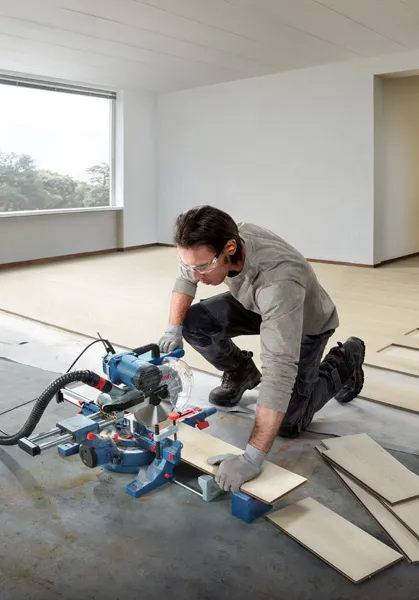

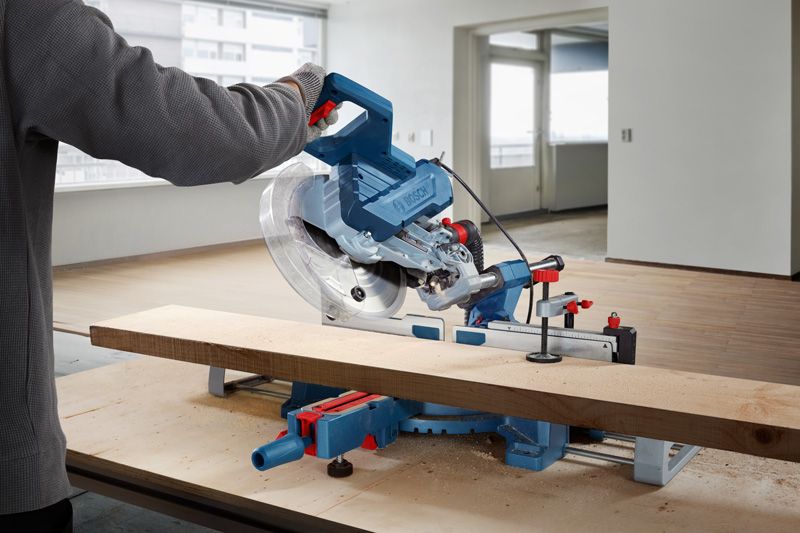

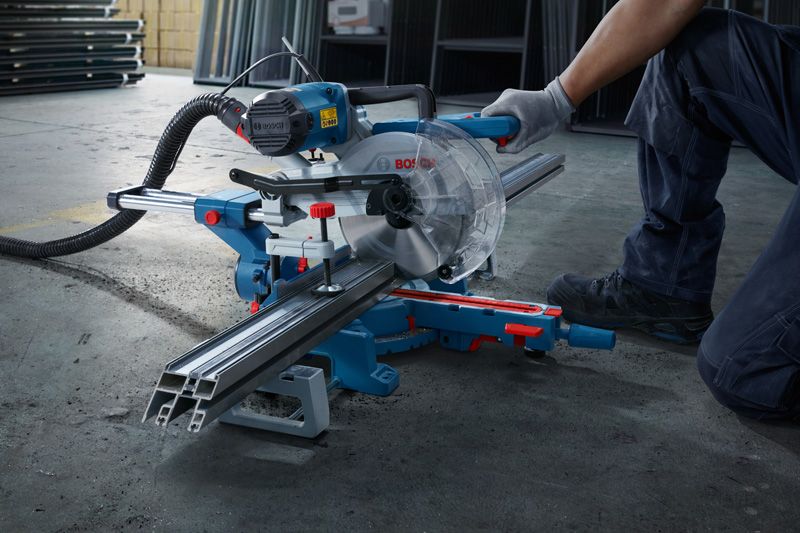

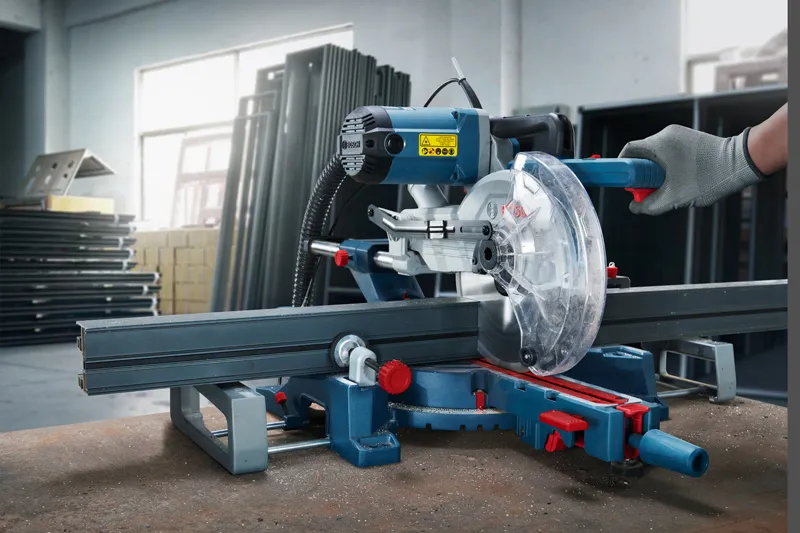

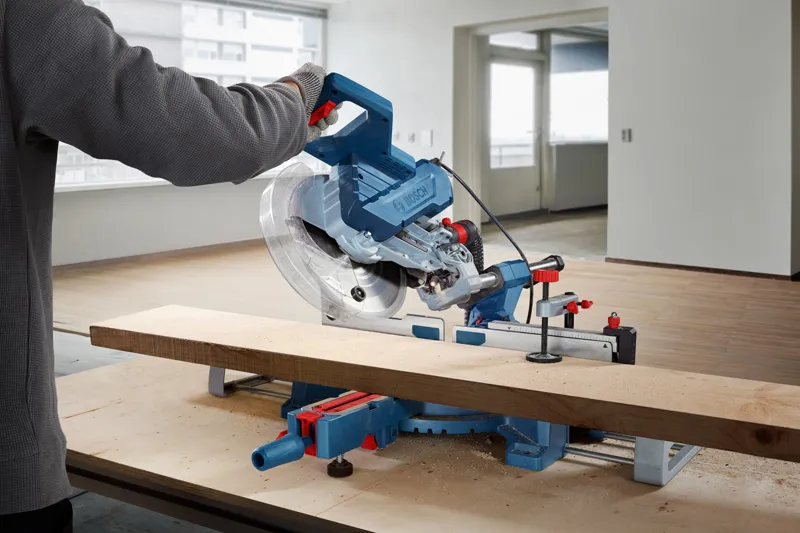

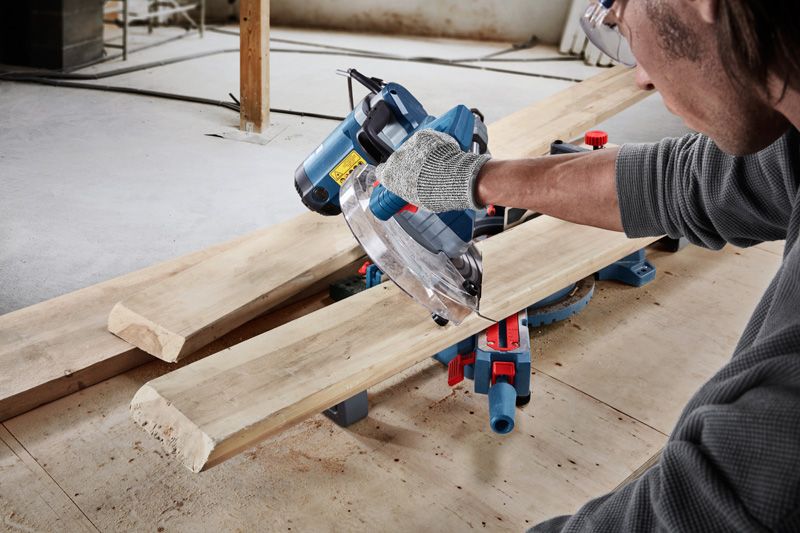

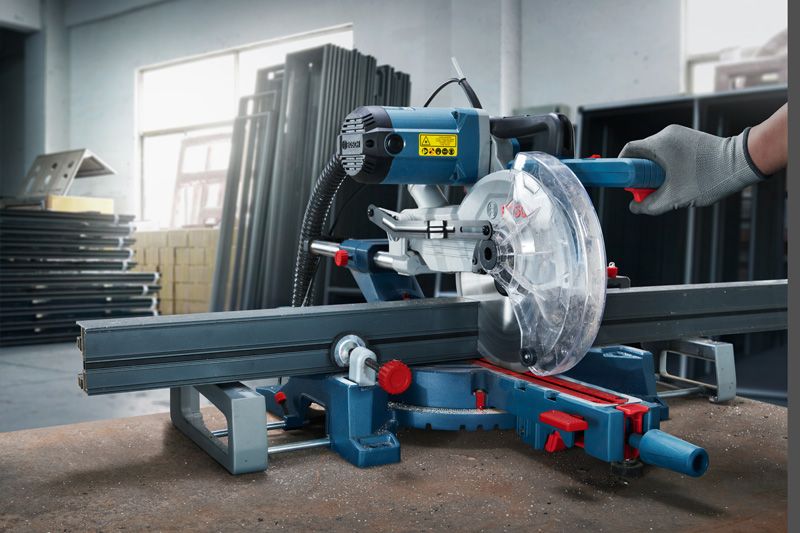

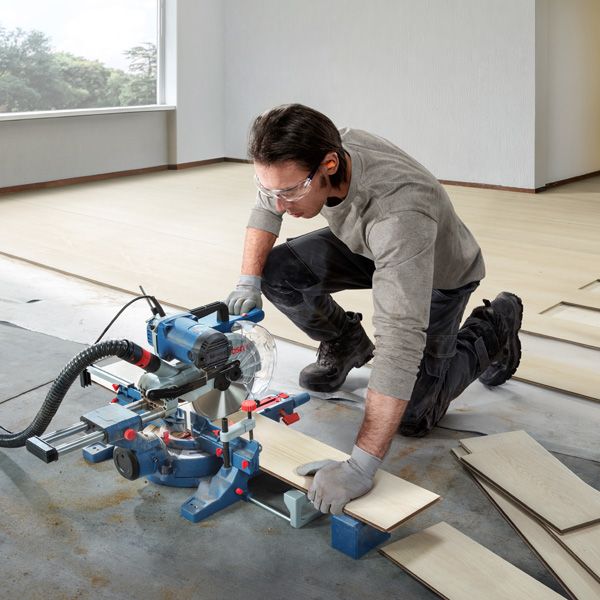

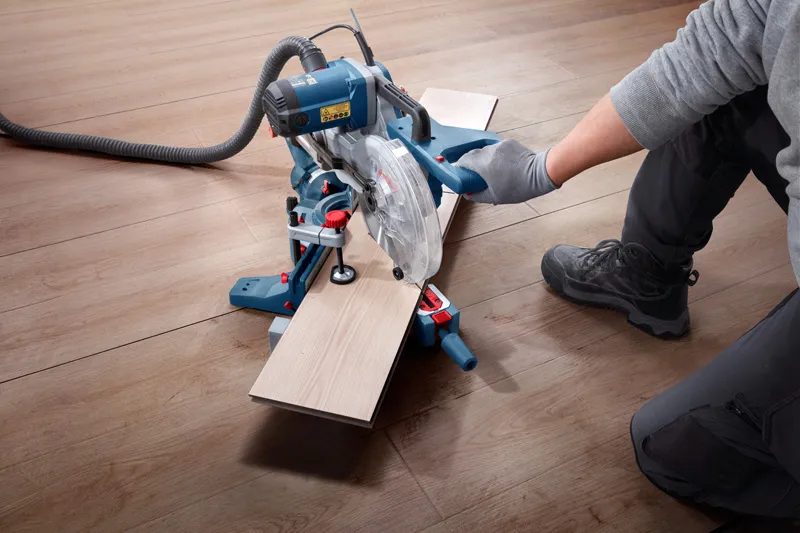

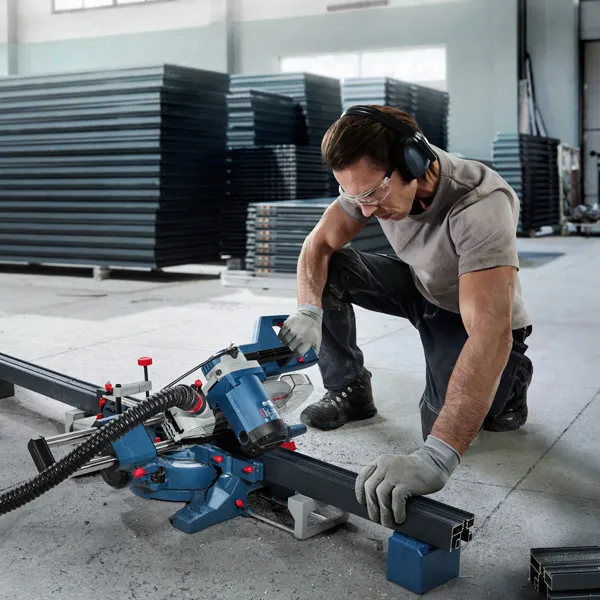

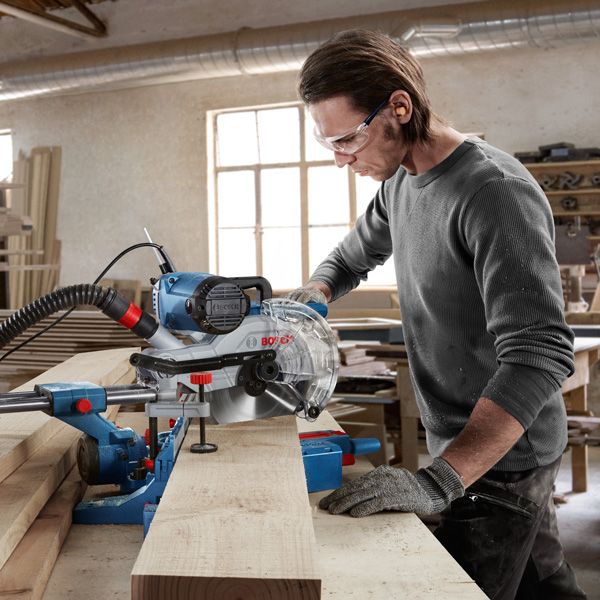

The GCM 254 D miter saw is built for long life with repetitive, accurate cutting of wood and aluminium, and is ideal for carpenters, glaziers, roofers, and other professional trades.
