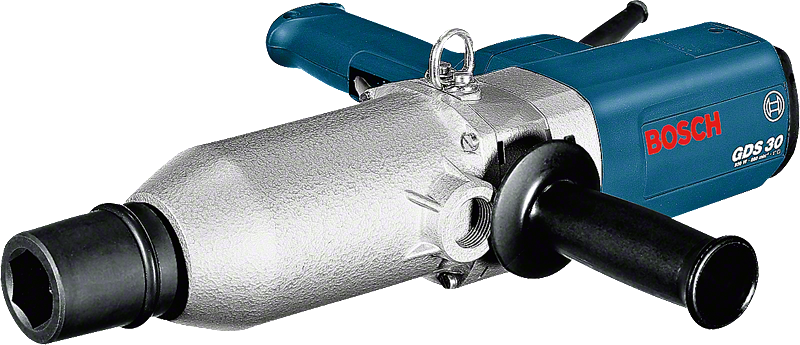

Impact Wrench GDS 30 Professional

The powerful tool for large screwdriving applications
  • Symbolimage
  • Symbolimage
GDS 30 Professional
Technical data
Additional data
Rated input power* 920   W
Torque, max. (hard screwdriving applications)* 1,000   Nm
Torque, max. (soft screwdriving applications) 500   Nm
Bit holder 1" external square
Rated speed 860   rpm
Weight 7.3   kg

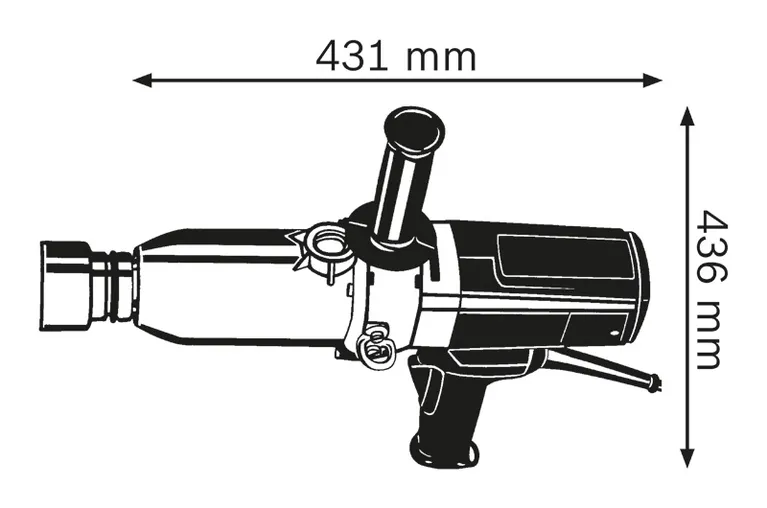

Tool dimensions (length) 431   mm
Tool dimensions (height) 436   mm
Screwdriving
Screw diameter* max. M 30
Total vibration values (Tightening screws and nuts of maximum permitted size)
Vibration emission value ah 4   m/s²
Uncertainty K 0.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 100 dB(A); Sound power level 113 dB(A). Uncertainty K= 3 dB.

Advantages

The powerful tool for large screwdriving applications

  • For heavy screw joints on trucks, construction machinery, in commercial vehicle construction, in the petrochemical and other heavy industries
  • Auxiliary handle with backing pad that can be fitted in two positions for better handling
  • Hanging hook for attaching to a balancer

Functions

Forward / reverse rotation for inserting and removing screws
Metalworking The professional power tools for metalworking from Bosch.
Woodworking The professional power tools for woodworking from Bosch.
What’s Included in this Package

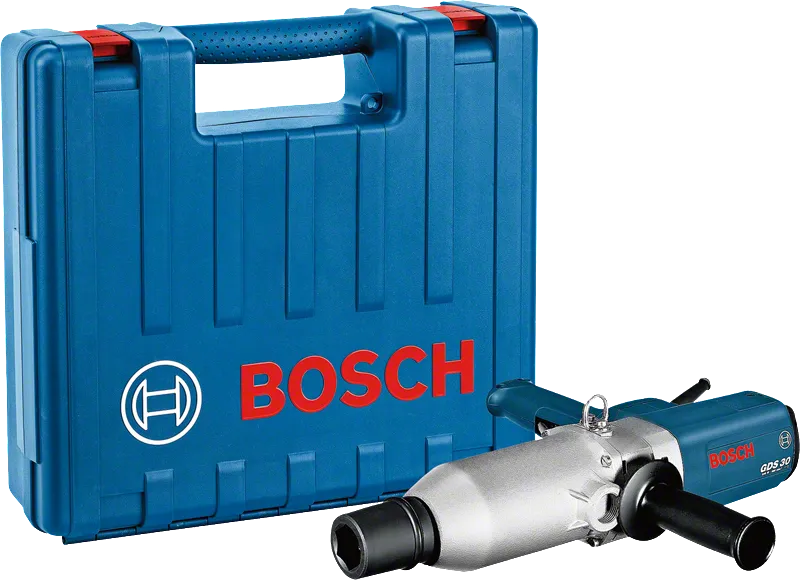

in carrying case with accessory set
in carrying case with accessory set
Order number: 0 601 435 103
  • Carrying case (spare part number 1 605 438 1BZ)
  • Auxiliary handle 2 602 025 075
  • Hanging loop (spare part number 3 601 310 013)
