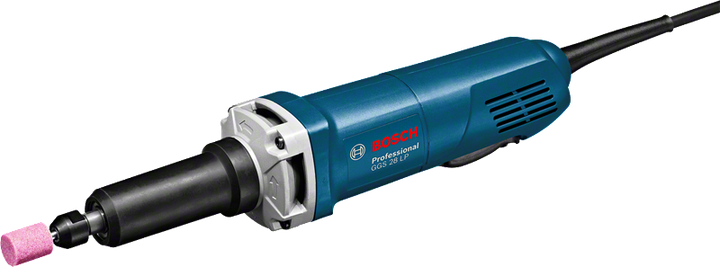

Straight Grinder GGS 28 LP Professional

Great user protection at tough applications: The new GGS 28LP with safety switch!

Technical data
Additional data
No-load speed* 30,000   rpm
Rated input power* 500   W
Tool holder* Collets up to 8 mm diameter
Power output 280   W
Spindle collar diameter 38   mm
Weight 1.7   kg
Tool dimensions (length) 383   mm
Tool dimensions (height) 75   mm
Max. collet diameter 8 mm
Max. grinding tool diameter 40   mm
Spanner size of locking nut 19   mm²
Spanner size of grinding spindle 13   mm²
Switch PROtection
Total vibration values (Surface grinding up to diameter of 25)
Vibration emission value ah 6   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Surface grinding up to diameter of 50)
Vibration emission value ah 20   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 80 dB(A); Sound power level 91 dB(A). Uncertainty K= 3 dB.

Advantages

Great user protection at tough applications: The new GGS 28LP with safety switch!

  • High user protection due to safety switch which shuts off the tool immediately when letting the switch go
  • Fast work progress due to powerful 500 W motor
  • Ideal for grinding in narrow spaces with a extended long grinding spindle

Functions

Direct cooling For high overload capability and a long service life.
Outstanding user protection The protection switch instantly switches the machine off when it is released
Metalworking The professional power tools for metalworking from Bosch.
What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 225 000
  • Collet 6 mm 2 608 570 084
  • Spanner 13 mm (spare part number 3 607 950 025)
  • Spanner 19 mm (spare part number 3 607 950 024)
The GGS 28 LP in action!
