Optical levels

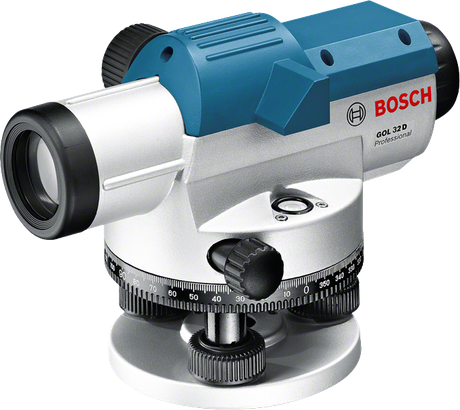

GOL 32 D Professional

Optical Level

Robust and reliable – ideal for outdoor use

  • Ideal for outdoor use due to a robust housing with dust and splash protection (IP54)
  • Fast aperture for a sharp image of the target
  • Compensator lock for safe transport

Functions & key features

Levelling accuracy ± 1 mm @ 30 m* (*plus use-dependent deviation)
Magnification 32x
Working range up to 120 m
IP54 dust and splash water protection

Your Selection

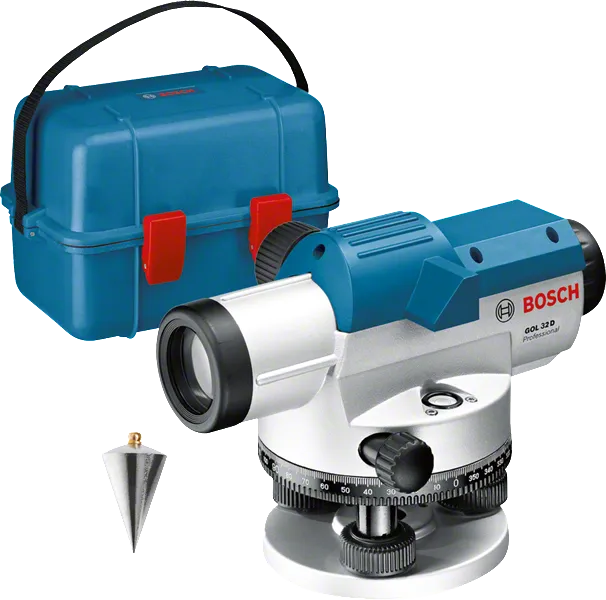

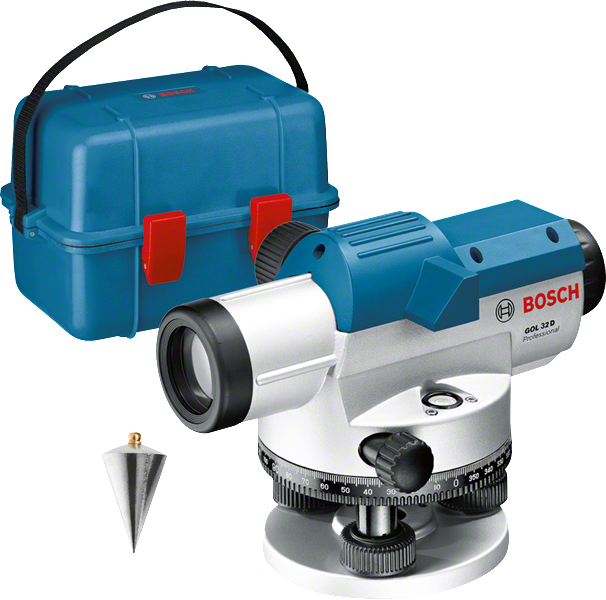

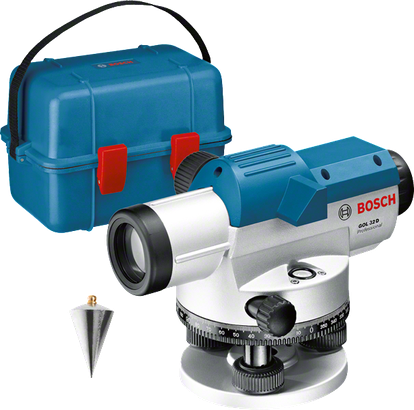

  • in carrying case with accessory set
Change variant

Available in 4 onlineshop(s)

Buy now

in carrying case with accessory set 0 601 068 500

Select a variant

Your Selection

GOL 32 D
in carrying case with accessory set

Order number: 0 601 068 500

Buy now

Included in all variants

  • Plumb bob
  • Carrying case
    Order number: 1 600 A00 0LF
  • Lens cover
  • Adjusting pin

Your Selection

GOL 32 D
in carrying case with accessory set

Order number: 0 601 068 502

Buy now

Included in all variants

  • Plumb bob
  • Carrying case
    Order number: 1 600 A00 0LF
  • Lens cover
  • Adjusting pin

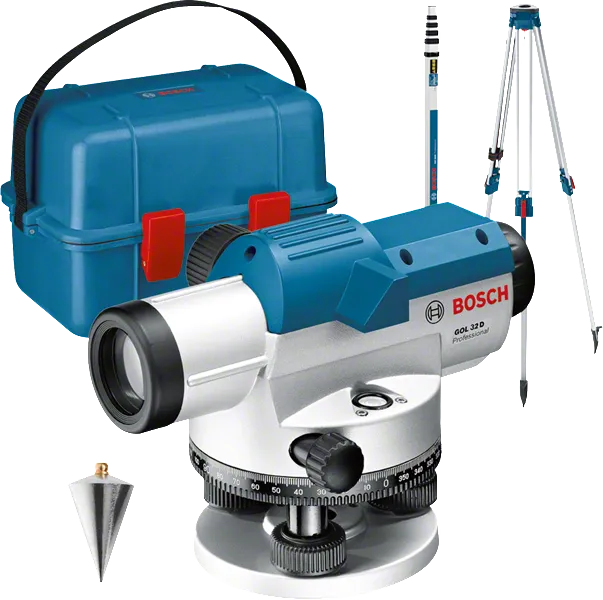

Additional in this variant

  • Building tripod BT 160 Professional
    Order number: 0 601 091 200
  • Measuring rod GR 500 Professional
    Order number: 0 601 094 300

Technical data

Additional data

Magnification 32 x
Dust and splash protection IP 54
Unit of measure 360 degrees
Accuracy ± 1 mm at 30 m
Working range, value 120 m
Working range 120 m
Tripod thread 5/8"
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Weight, approx. 1.5 kg
GOL 32 D
