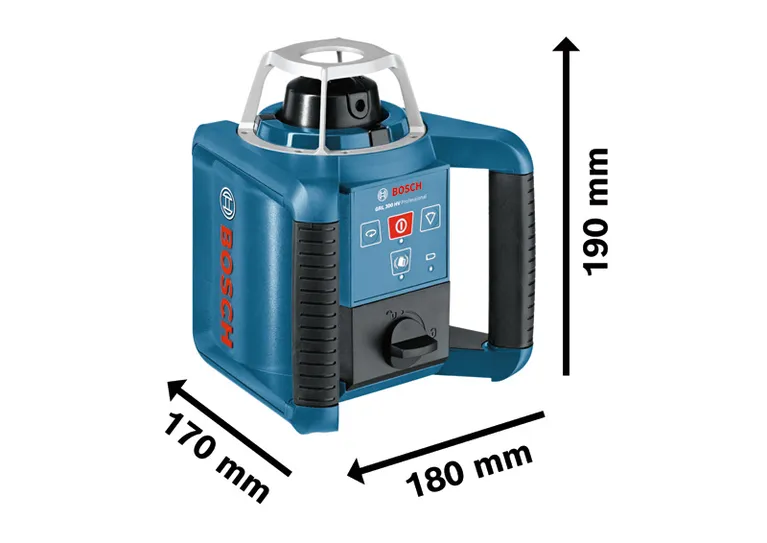

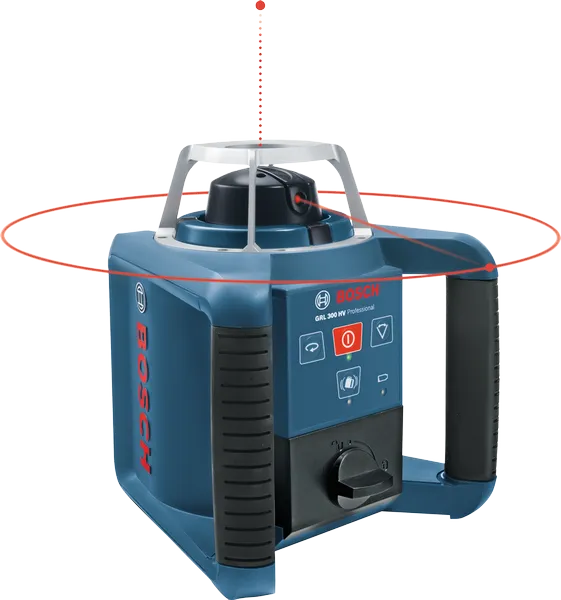

GRL 300 HV Professional
Rotation Laser

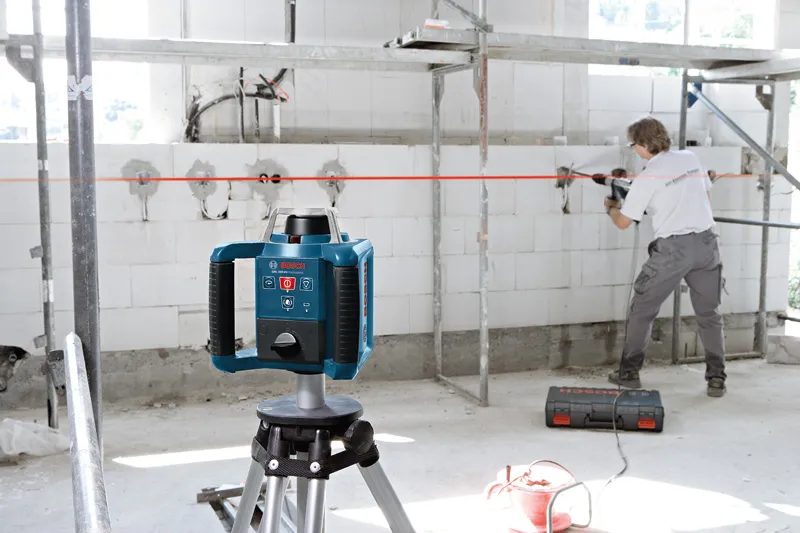

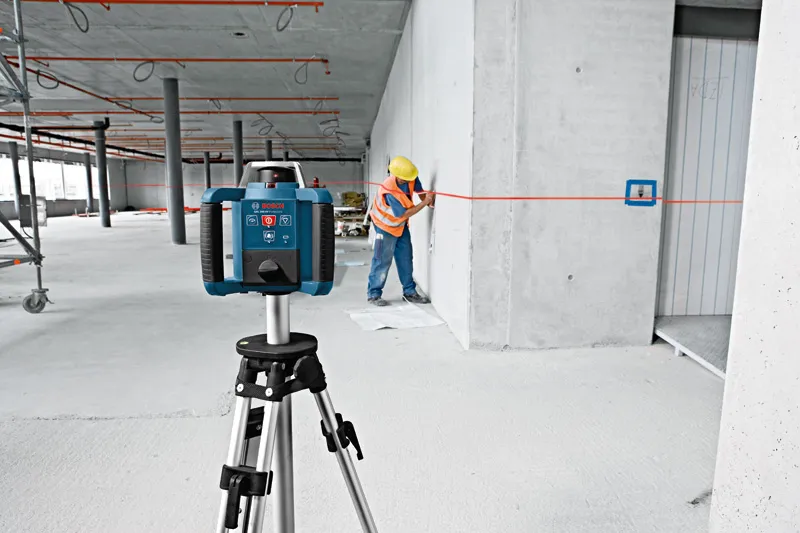

Easy handling with horizontal and vertical self-levelling
- Easy to operate thanks to one button per function, and self-explanatory display

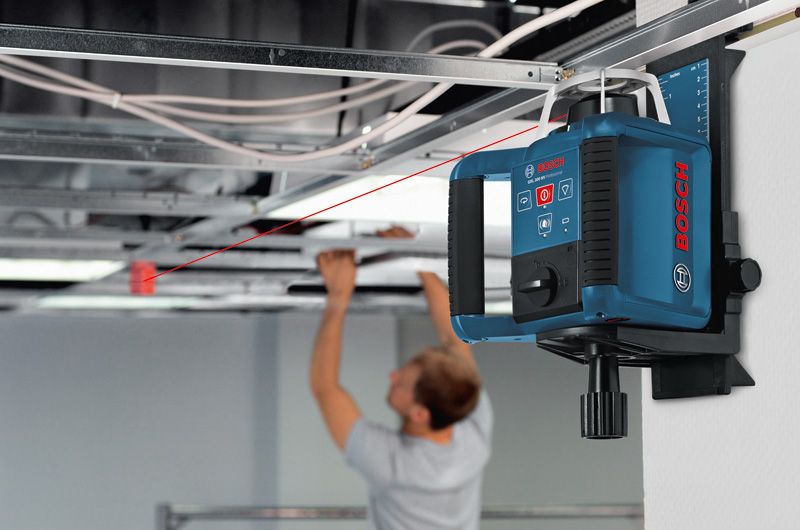

- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations
Functions & key features
in carrying case with 1 x 9 V block battery, receiver
0 601 061 501
GRL 300 HV Professional
Your Selection
in carrying case with 1 x 9 V block battery, receiver
Order number: 0 601 061 501
Recommended retail price including VAT

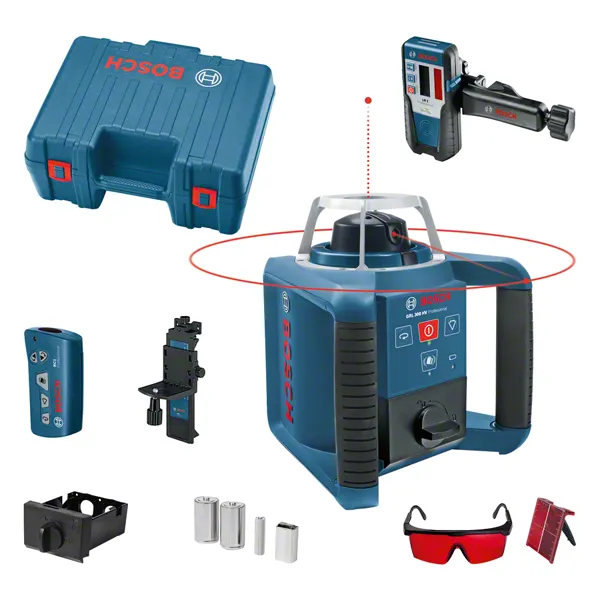

Included in this variant
-
Battery compartment (spare part number 1 608 M00 05D)
-

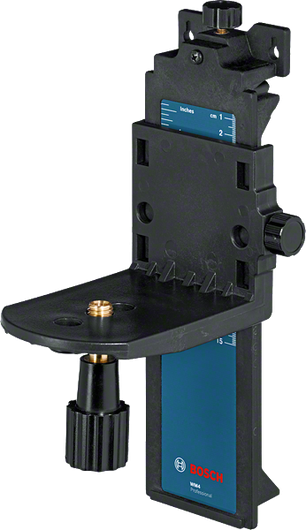

Universal mount WM 4 ProfessionalOrder number: 0 601 092 400
-
1 x 1.5 V LR6 battery (AA)
-
Remote control RC1 ProfessionalOrder number: 0 601 069 900
-
2 x 1.5 V LR20 battery (D)
-
Holder also available separately as an accessory (spare part number 1 608 M00 70F)
-

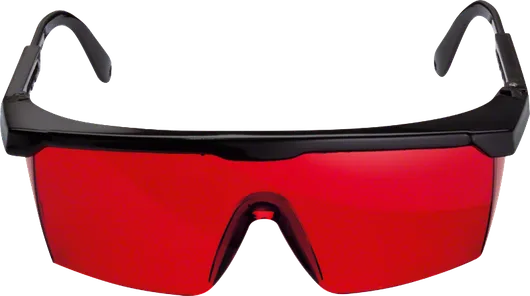

Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
-

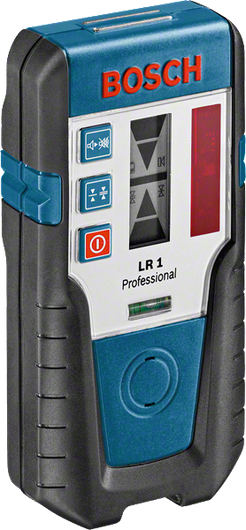

Laser Receiver LR 1 ProfessionalOrder number: 0 601 015 400
-
Carrying case
-
Laser target (red) (spare part number 1 608 M00 05C)
-
1 x 9 V block battery (6LR61)
Technical data
Additional data
Dust and splash protection
IP 54
Working range with receiver
up to 300 m (Diameter)
Accuracy
± 3.0 mm at 30 m* (*plus use-dependent deviation)
Tripod thread
5/8"
Colour of laser line
red
Laser diode
635 nm, < 5 mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
3R
Working range without receiver
up to 60 m (Diameter)
Self-levelling range
± 5° (8%)
Levelling time
15 s
Rotation speed
150, 300, 600 rpm
Power supply
2 x 1.5 V LR20 (D)
Weight, approx.
1,8 kg
Working range with receiver, value
300 m
Slope function
no
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
