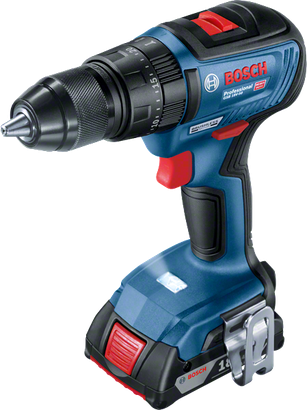

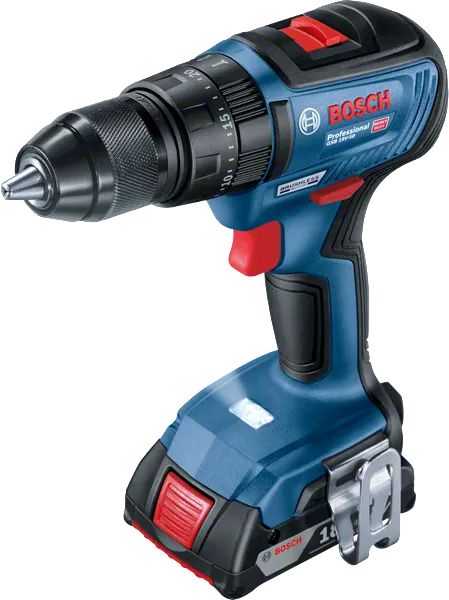

Cordless Combi GSB 18V-50 Professional

Robust brushless motor for durability and flexibility

Technical data
Additional data
Battery voltage 18   V
Weight excl. battery 1.1   kg
No-load speed (1st gear / 2nd gear) 0 – 460 / 0 – 1,800   rpm
Chuck capacity, min./max. 1.5 / 13   mm
Torque settings 20+2
Torque (soft/hard/max.) 28/50/50   Nm
Battery type Lithium-ion
Max. impact rate 27,000   bpm
Screw diameter
Max. screw diameter 10   mm
Max. drilling diameter in aluminium 13   mm
Max. drilling diameter in wood 35   mm
Max. drilling diameter in steel 13   mm
Max. drilling diameter in masonry 13   mm
Drilling diameter
Max. screw diameter 10   mm
Max. drilling diameter in aluminium 13   mm
Max. drilling diameter in wood 35   mm
Max. drilling diameter in steel 13   mm
Max. drilling diameter in masonry 13   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 2.1   m/s²
Uncertainty K 1.5   m/s²

Advantages

Robust brushless motor for durability and flexibility

  • Intelligent brushless motor for efficiency, endurance, and compactness
  • Robust metal chuck and compact ergonomic design ideal for heavy-duty jobs
  • Professional 18V System works with Bosch batteries and chargers of the same voltage

Functions

Voltage 18 Volt
Longer motor life - more runtime - more power thanks to brushless motor
Icon
Extremely robust thanks to full metal keyless chuck
Forward / reverse rotation for inserting and removing screws
Convenient hanging of the tool
Easy and precise control of the RPM thanks to variable speed
 Illuminating of the work area
Optimal protection of the cells against excessive heat due to special, heat conductive housing
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Comfortable handling of the tool thanks to softgrip
Metal chuck 1.5 - 13.0 mm
What’s Included in this Package
with 2 x 5.0 Ah Li-ion battery
with 2 x 5.0 Ah Li-ion battery
Order number: 0 601 9H5 101
  • 2 x battery GBA 18V 5.0Ah 1 600 A00 2U5
  • Quick charger GAL 1880 CV 1 600 A00 B8G
  • L-BOXX 136 1 600 A01 2G0
