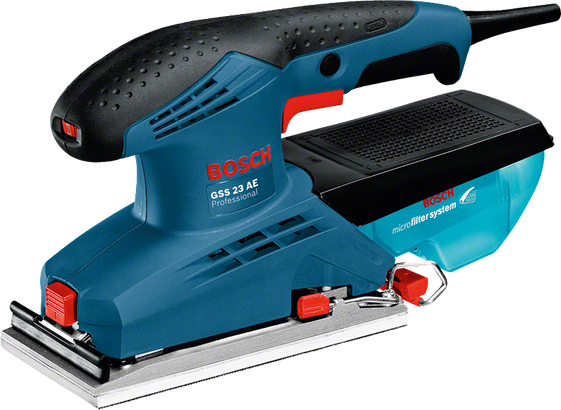

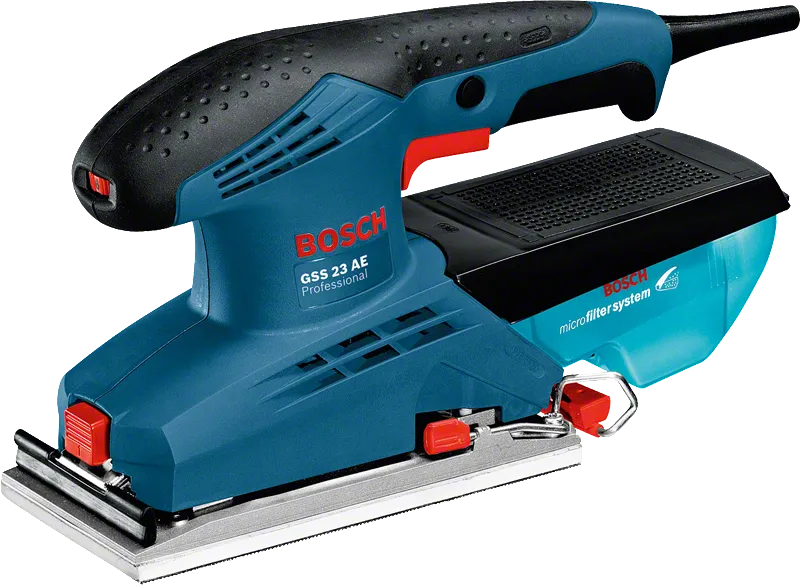

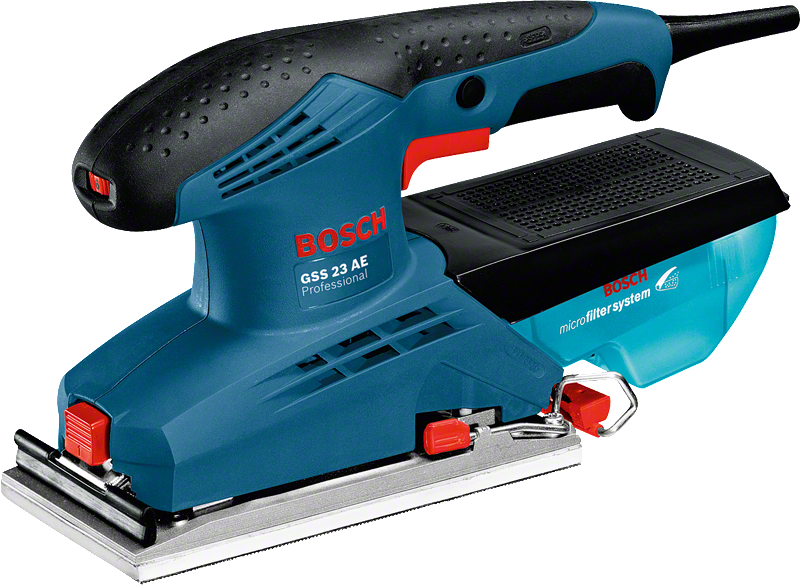

Orbital Sander GSS 23 AE Professional

Every type of sanding sheet sits perfectly with Easy-Fit

Technical data
Additional data
Rated input power* 190   W
No-load speed 7,000 – 12,000   rpm
No-load orbital stroke rate 14,000 – 24,000   opm
Oscillating circuit diameter 2   mm
Weight 1.7   kg
Sanding surface
Sanding plate, width* 92   mm
Sanding plate, length* 182   mm
Sanding sheet for clamping, width 93   mm
Sanding sheet for clamping, length 230   mm
Sanding sheet with hook-and-loop fastening, width 93   mm
Sanding sheet with hook-and-loop fastening, length 185   mm
Total vibration values (Sanding panel materials)
Vibration emission value ah 4.5   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 80 dB(A); Sound power level 91 dB(A). Uncertainty K= 3 dB.

Advantages

Every type of sanding sheet sits perfectly with Easy-Fit

  • Easy-Fit system with automatic paper tensioning for a perfect hold of roll paper or hook-and-loop paper
  • A perfect paper fit ensures maximum surface quality and optimum interaction with microfilter for dust-free working
  • Electronic control for material-specific working (the only one in this price class)

Functions

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed

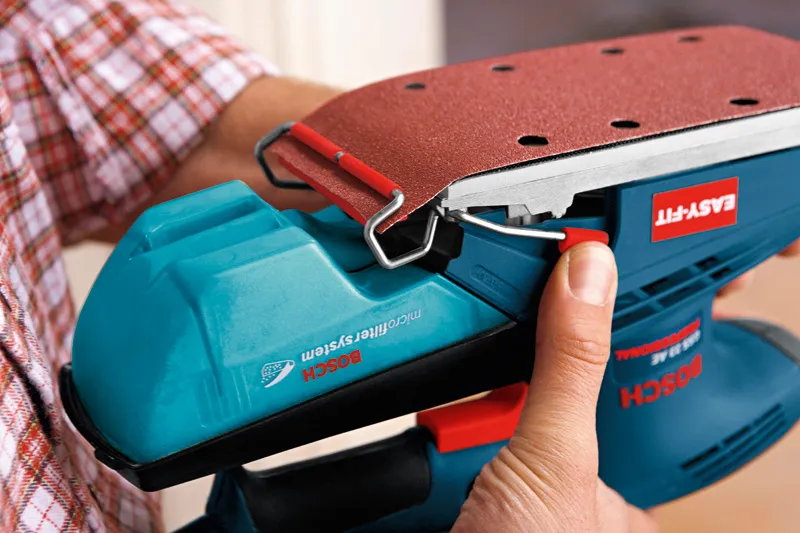

Perfect hold of roll paper or hook-and-loop paper thanks to Easy-Fit system with automatic paper tensioning
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories

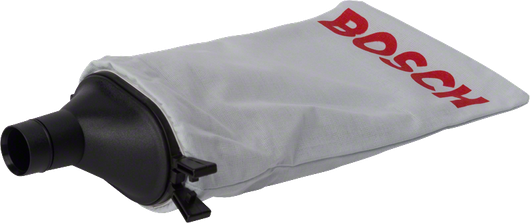

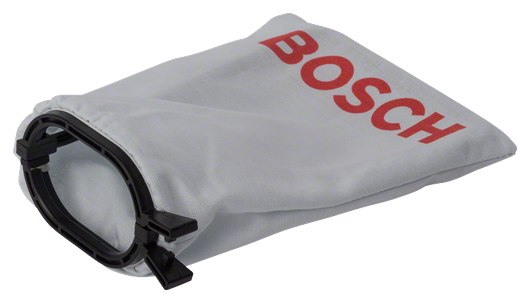

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor

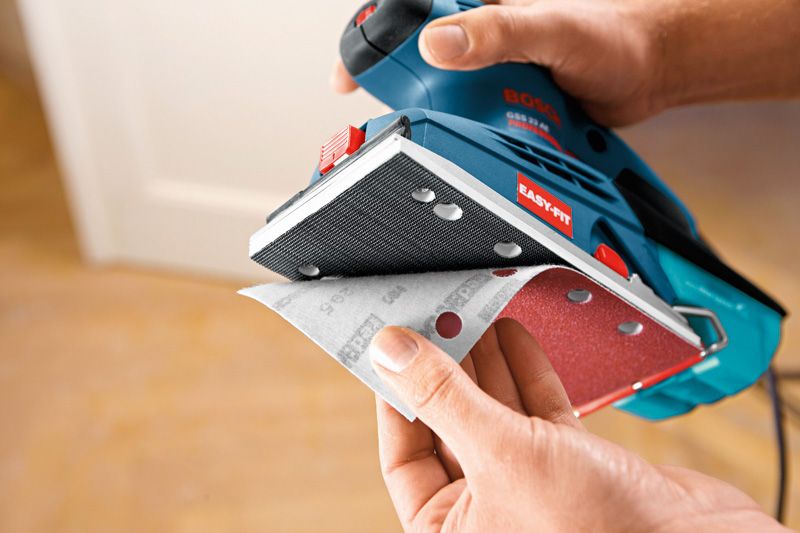

Easy attachment and detachment of sanding paper thanks to hook-and-loop

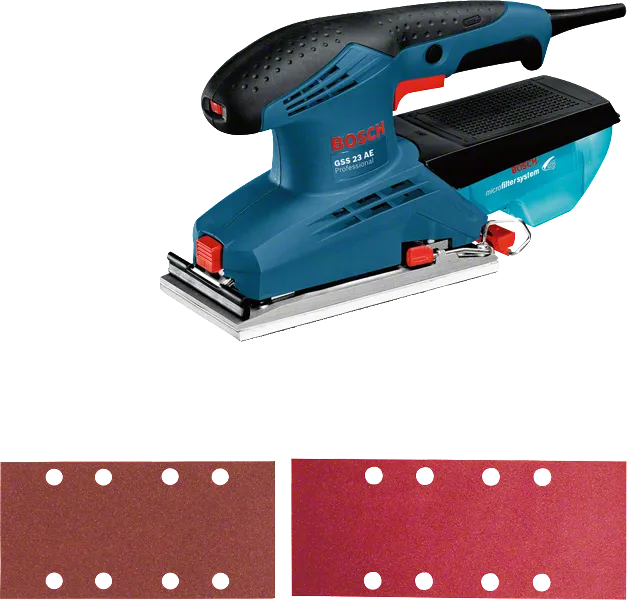

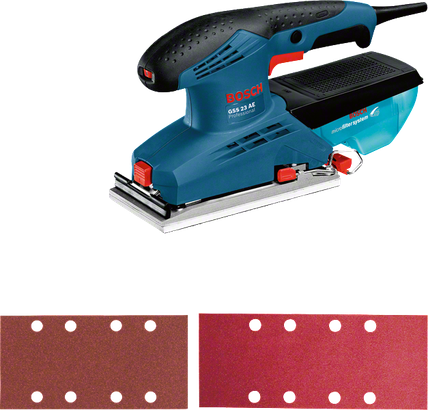

What’s Included in this Package

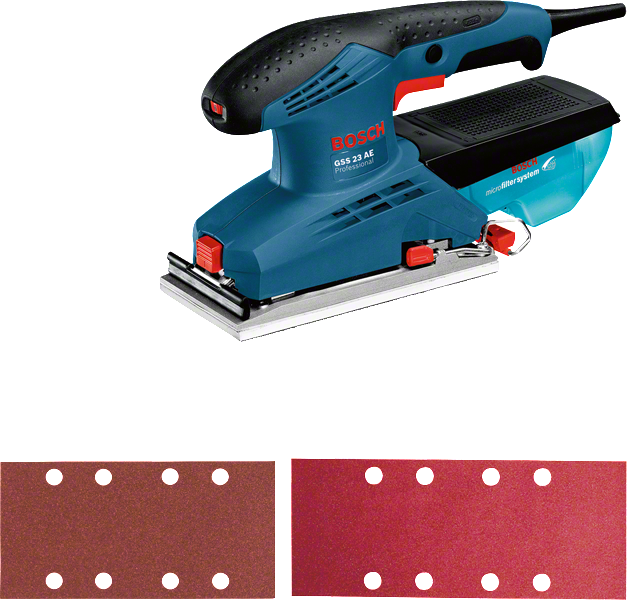

with accessory set
with accessory set
Order number: 0 601 070 700
  • Hole punch 2 608 190 016
  • Microfilter box

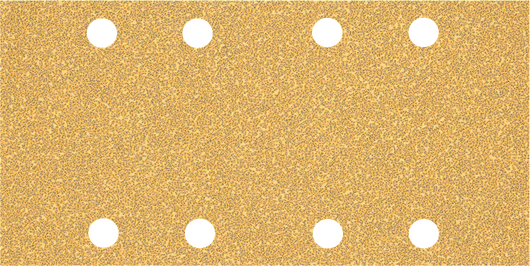

  • 2 sheets of sanding paper

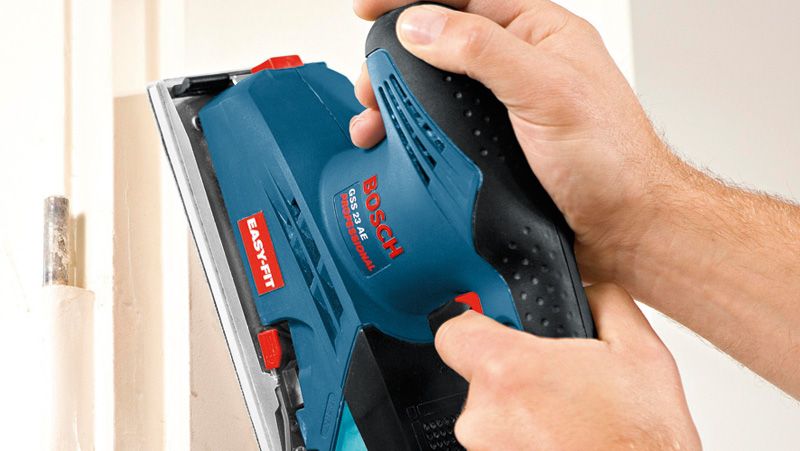

The GSS 23 AE in action!
