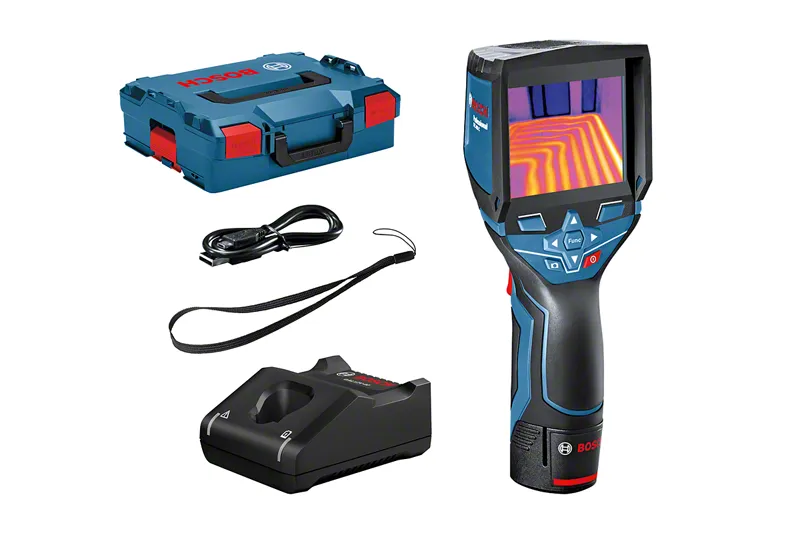

Bosch GTC 400 C thermal camera with case and charger.

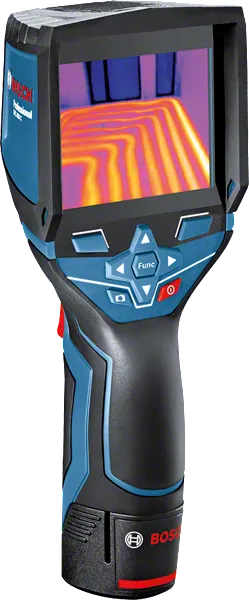

Bosch GTC 400 C thermal imaging camera detects heat patterns.
GTC 400 C
GTC 400 C

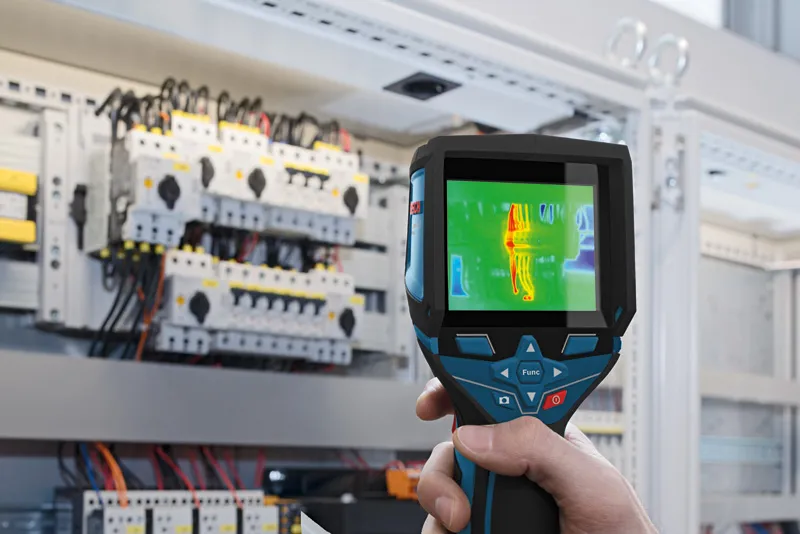

Person uses a thermo camera to inspect electrical panels for heat anomalies.

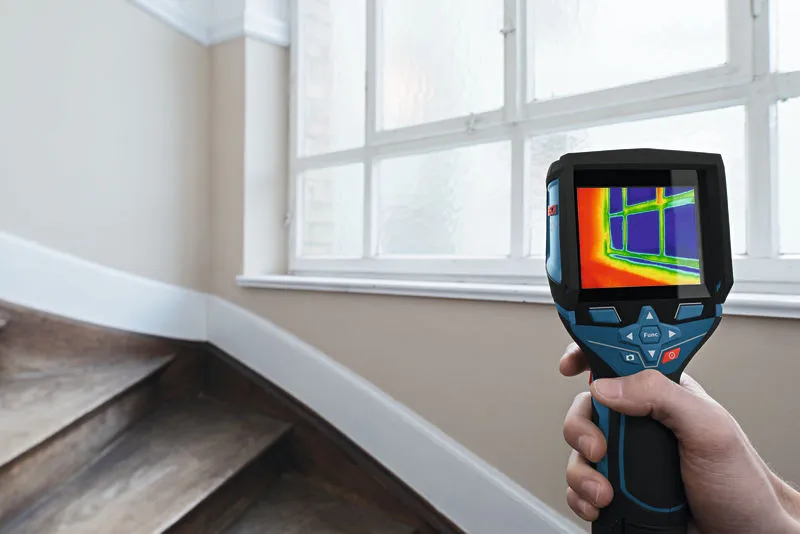

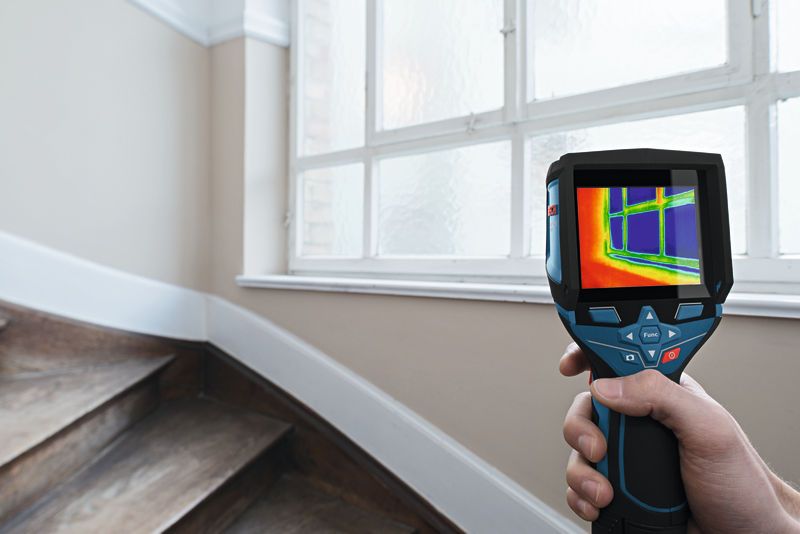

Person uses thermal camera to scan temperature changes near a window.

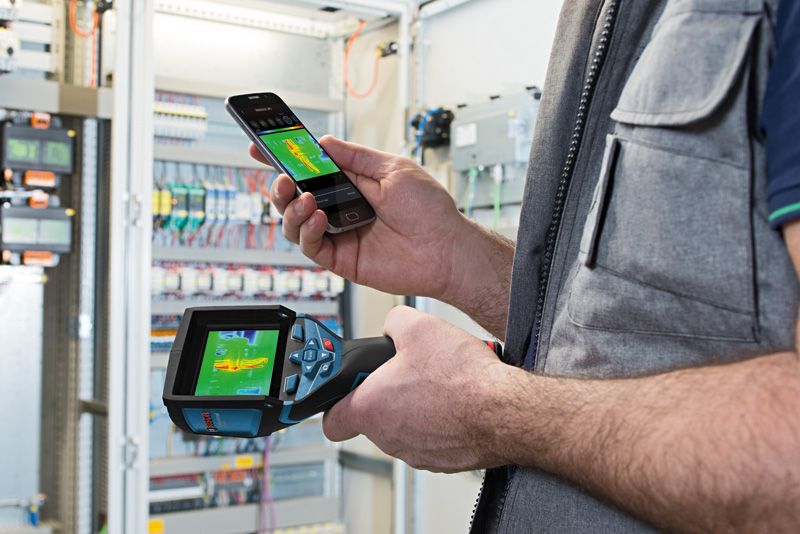

Person uses a thermo camera and smartphone to check heat patterns in an electrical panel.

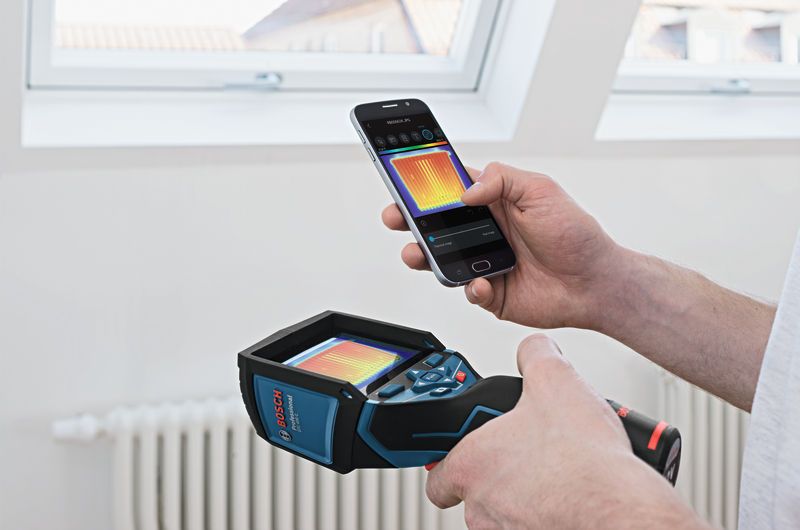

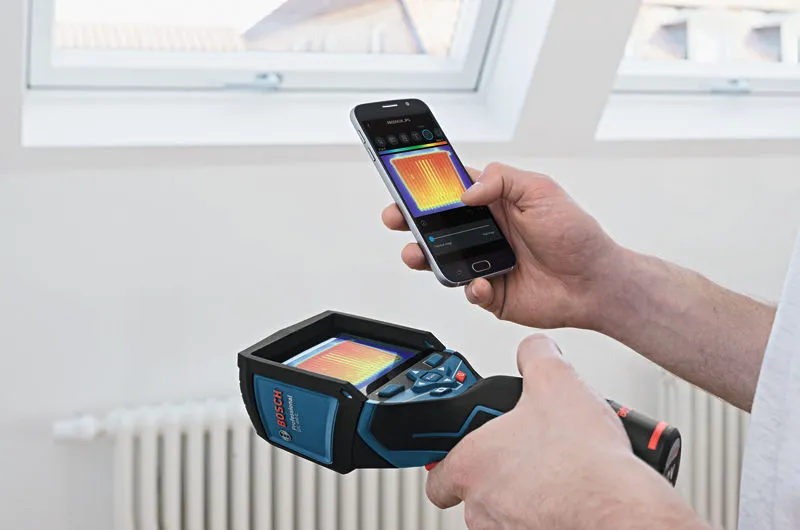

A person uses a thermo camera and smartphone to view a thermal image indoors.

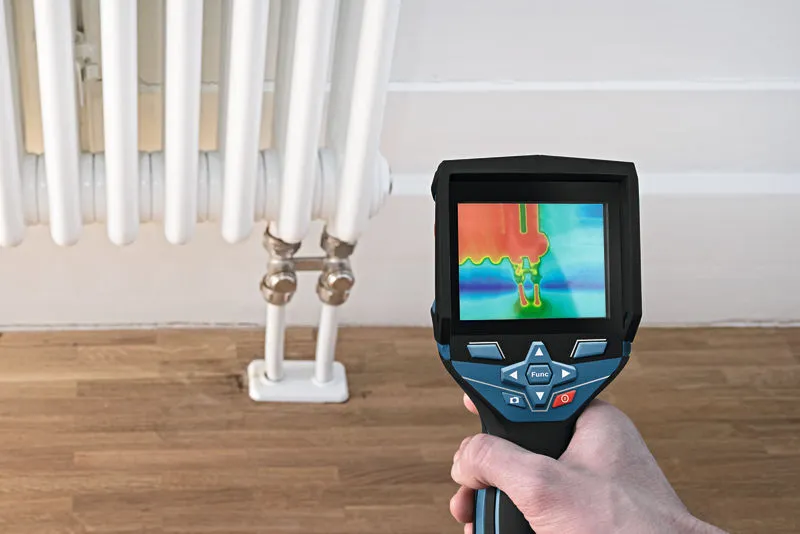

A person uses a thermo camera to inspect heat distribution on a radiator.

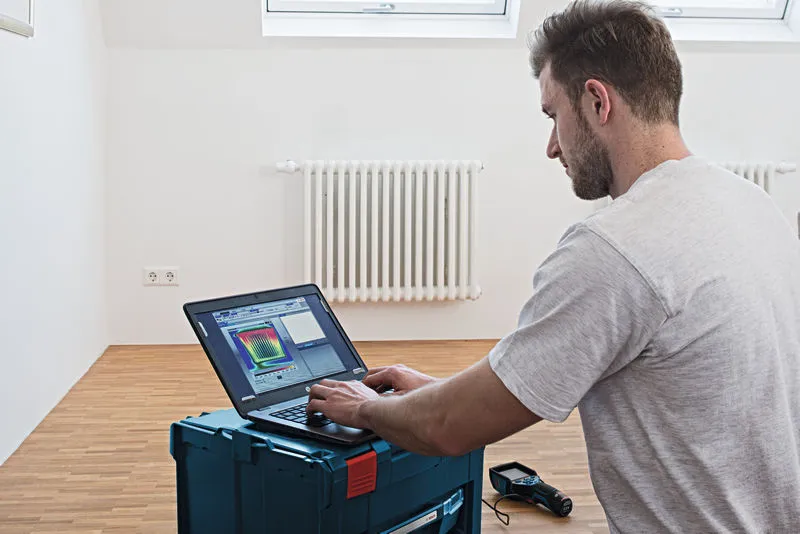

Person analyzing thermal camera data on a laptop in a room with a radiator.

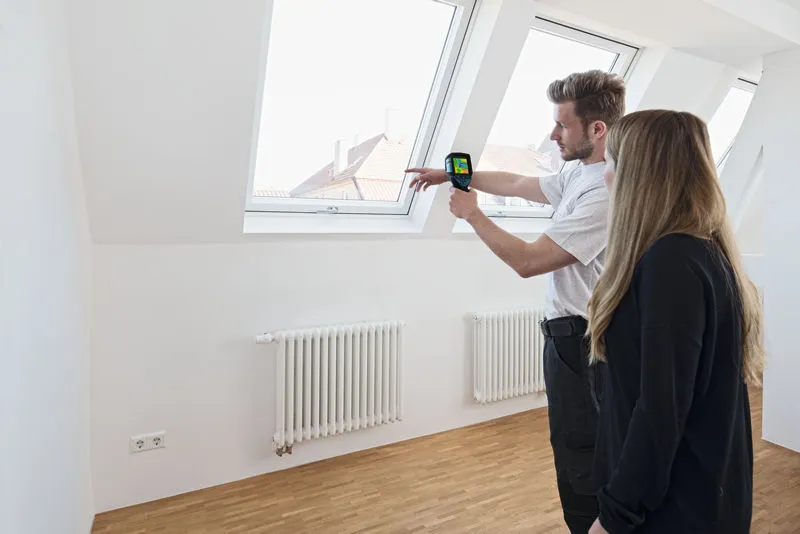

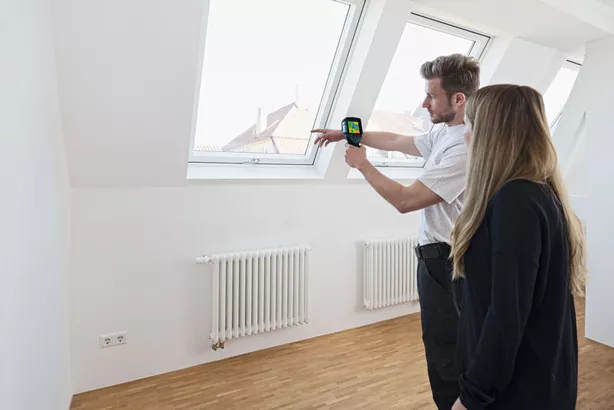

Person demonstrates a thermo camera to another person near a window in a bright room.

GTC 400 C Professional

Thermo Camera

12V system
Connected

Immediate visualisation of temperature differences with smart documentation

  • Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
  • Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
  • Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Functions & key features

160x120 sensor
Dual power
IP53 protection
GTC Transfer software
Camera

Your Selection

  • in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap
Show variant Buy now

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap 0 601 083 101

GTC 400 C Professional

Your Selection

Bosch GTC 400 C thermal camera with case and charger.
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap

Order number: 0 601 083 101

Buy now

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Micro USB cable
    Order number: 2 609 120 670
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R3
  • Hand strap
  • L-BOXX inlay for tool
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X
GTC Transfer Software
Discover and download now!

Technical data

Additional data

Battery voltage
12.0 V
Measurement range
-10 °C to +400 °C
Measuring accuracy of IR
±3.0 °C
Measuring application
Thermal image
Data transfer
MicroUSB, Wi-Fi
Thermal sensitivity (NETD)
<50 mK
Size of IR sensor
160 Pixel x 120 Pixel
Resolution
0,1 °C
Number of measuring points
19 200
Field of view (FOV)
53° x 43°
Power supply and runtime
4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Frame buffer (number of images)
500
Memory type
Internal memory
File format of image
.jpg
Dust and splash protection
IP 53
Weight
0,54 kg
Size of display
3,5"
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 70 °C
Focus distance, minimum
0,3 m

* You can find more information about the deviations in the following link: Technical features of products

GTC 400 C Professional: Further information

Product Highlights

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.

Equipment & Application

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

Additional Information

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
