Technical data
| Additional data | |
|---|---|
| Rated input power* | 2,400 W |
| No-load speed* | 6,500 rpm |
| Disc diameter* | 230 mm |
| Grinding spindle thread | M 14 |
| Main handle | Straight |
| Weight | 6.5 kg |
| Switch | PROtection / Tri-Control (see scope of delivery) |
| Total vibration values (Surface grinding (roughing)) | |
|---|---|
| Vibration emission value ah | 6.5 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Sanding with sanding sheet) | |
|---|---|
| Vibration emission value ah | 3.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 104 dB(A). Uncertainty K= 3 dB.
Advantages
The powerful tool with the best brake system in its class
- Powerful 2400 W Champion motor for fast work progress
- The patented run-out brake brings the disc to a standstill in 2.5 seconds, enabling you to put the tool down quickly and safely
- Bosch SDS quick-locking nut and spindle lock ensure rapid, tool-free disc changes
Functions
What’s Included in this Package
with accessory set
Order number:
0 601 864 Z04
- Backing flange 1 605 703 099
- Locking nut 1 603 340 040

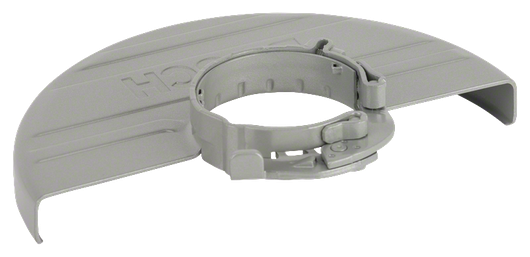

- Quick adjustment protective guard 2 605 510 281
- SDS quick-locking nut 1 603 340 031
- Two-hole spanner 1 607 950 048
- Vibration Control auxiliary handle 2 602 025 181
