New

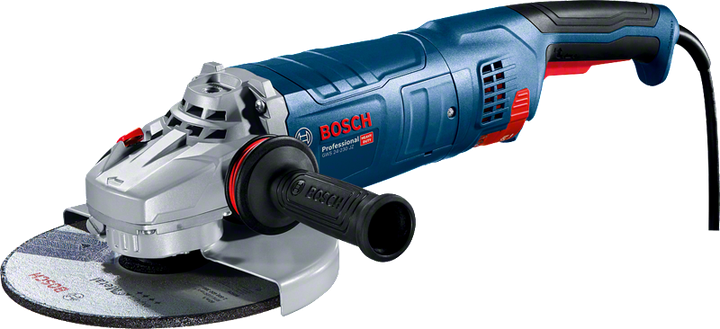

Angle Grinder GWS 24-230 JZ Professional

Built for tough jobs; built to last long!

from  2,999.00 ZAR Recommended retail price including VAT

Technical data
Additional data
Rated input power 2,400   W
No-load speed 6,500   rpm
Disc diameter 230   mm
Grinding spindle thread M14
Main handle Barrel
Grinding head, diameter 140   mm

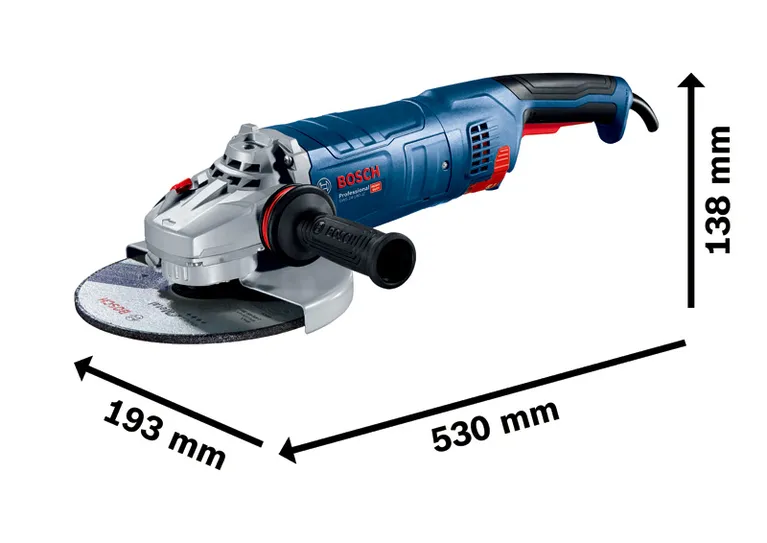

Tool dimensions (width) 115   mm
Tool dimensions (length) 530   mm
Tool dimensions (height) 150   mm
Weight 6   kg
Switch Lockable Switch
Rubber backing pad, diameter 180   mm
Total vibration values (Surface grinding (roughing))
Vibration emission value ah 6.5   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Sanding with sanding sheet)
Vibration emission value ah 3   m/s²
Uncertainty K 1.5   m/s²

Advantages

Built for tough jobs; built to last long!

  • World’s first CYCLON TECH removes up to 90%* of dust from cooling air for up to 3X* increased motor lifetime *With regular cleaning of dust collection box in extremely dusty work environments, based on internal tests
  • New patented motor delivers up to 2X* high overload capability for higher material removal rate** *Compared to predecessor, under internal testing
  • Precision engineered mechanical system together with the vibration control auxiliary handle reduces the vibration by 13%* for the operator *Compared to predecessor, under internal testing
  • Overload protection shuts down the tool under extended overload conditions, to protect the tool
  • Restart Protection for increased user safety and soft start adds to convenience

Functions

Ergonomic handling thanks to low weight and compact design
Restart protection Prevents the tool from automatically starting up after a power cut.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Metalworking The professional power tools for metalworking from Bosch.
Construction The professional power tools for construction from Bosch.

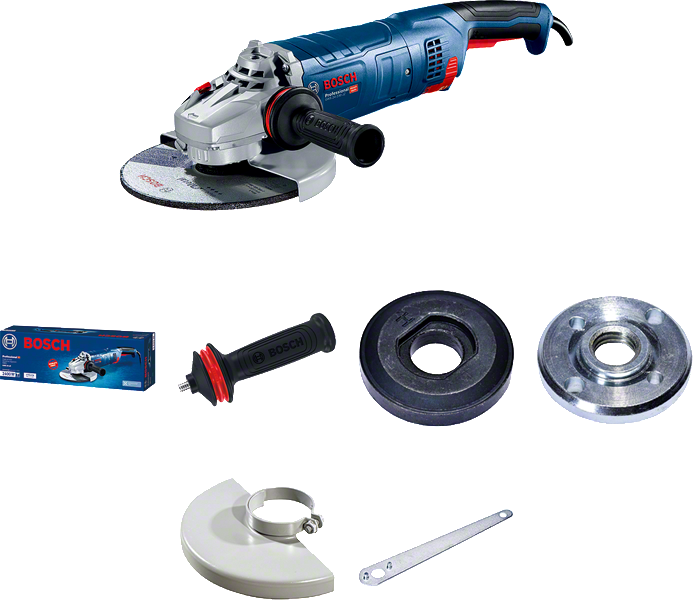

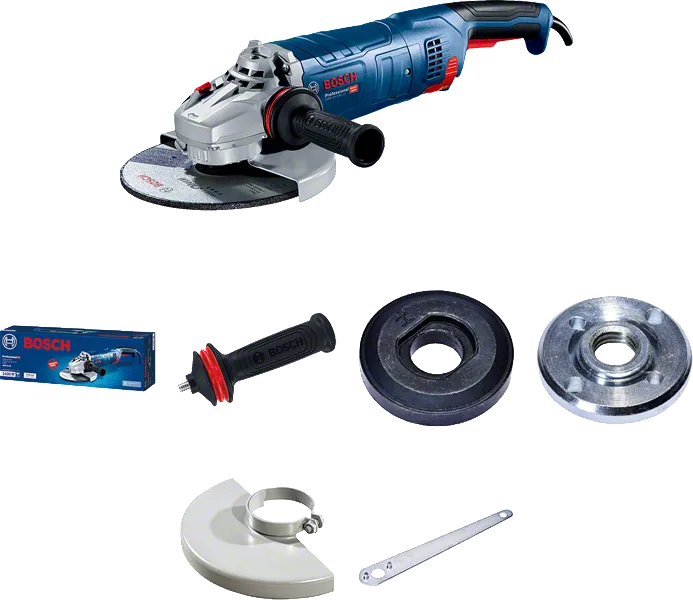

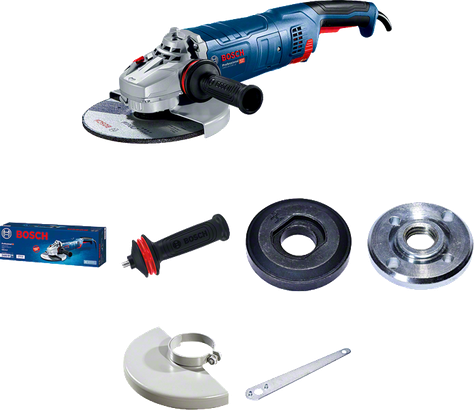

What’s Included in this Package
in cardboard box with spanner
in cardboard box with spanner
Order number: 0 601 8C3 301
  • Two-hole spanner 1 607 950 061
  • Backing flange (spare part number 2 605 703 014)
  • Locking nut 1 603 345 043
  • Cardboard box
  • Protective cover 1 619 P15 622
  • Auxiliary handle 1 602 025 030
2,999.00 ZAR Recommended retail price including VAT
Product variations (2)

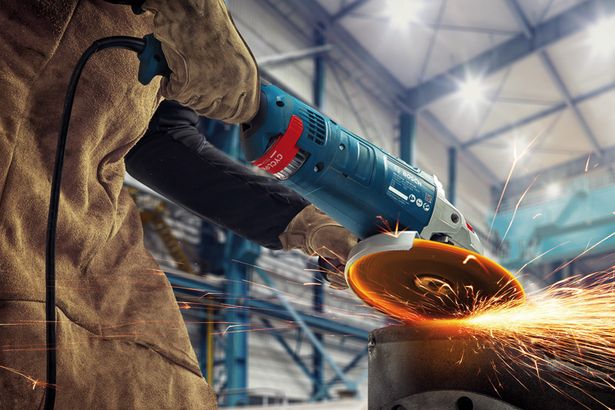

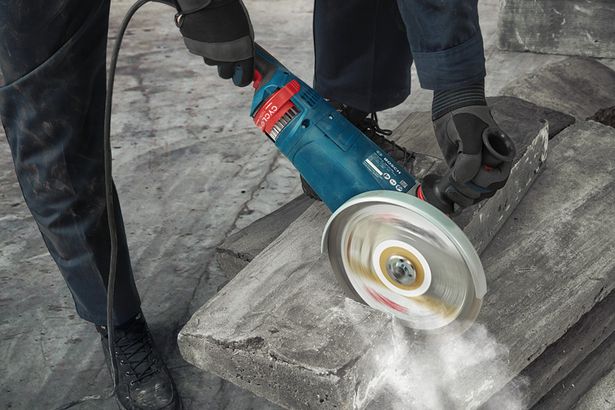

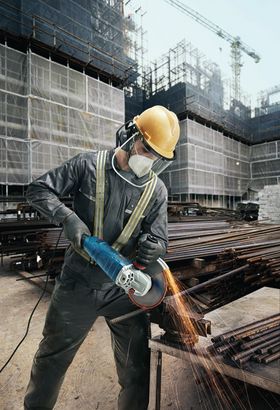

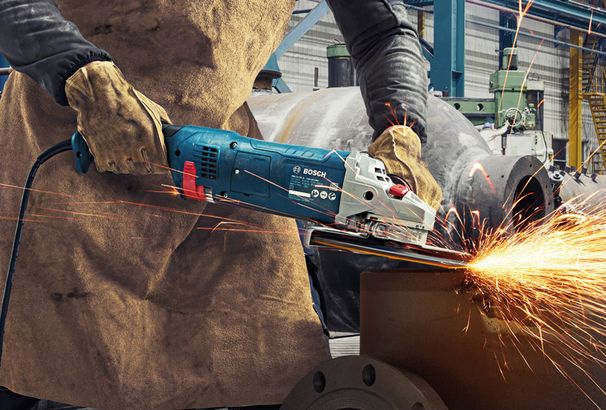

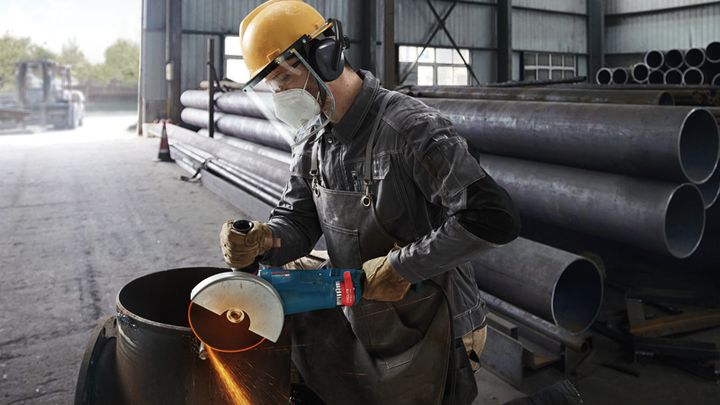

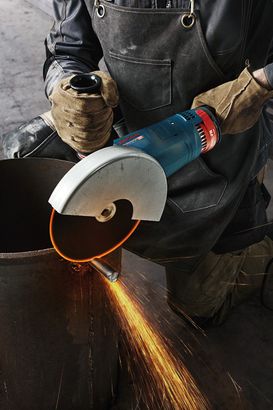

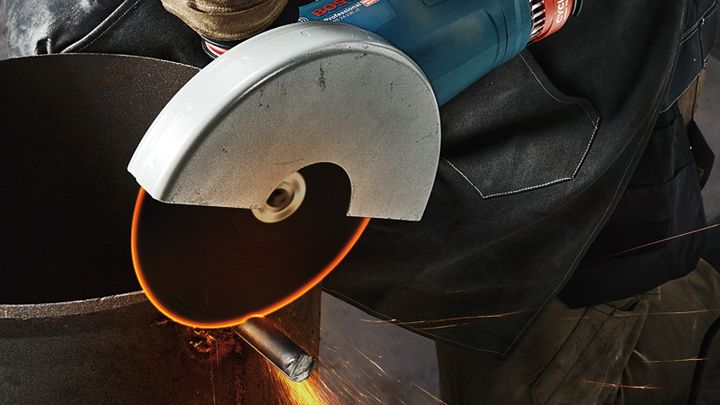

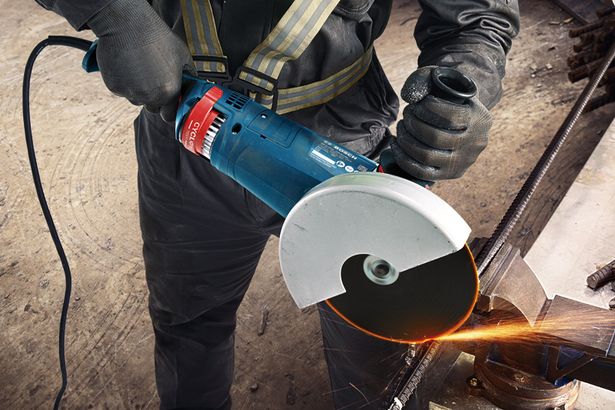

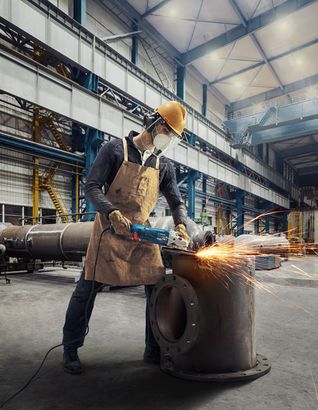

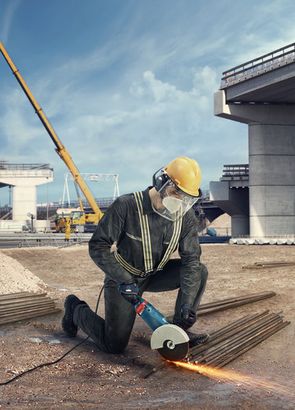

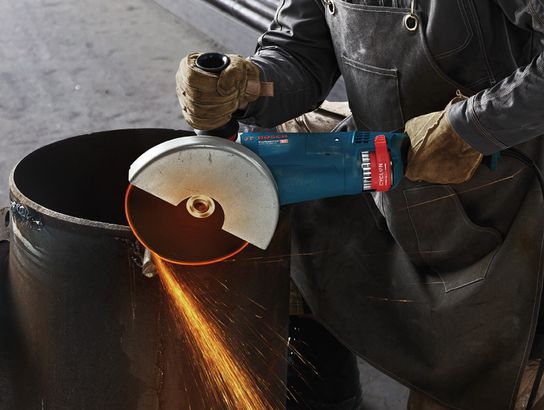

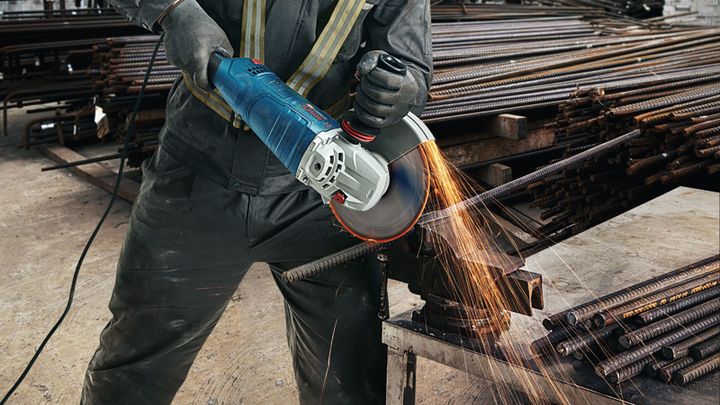

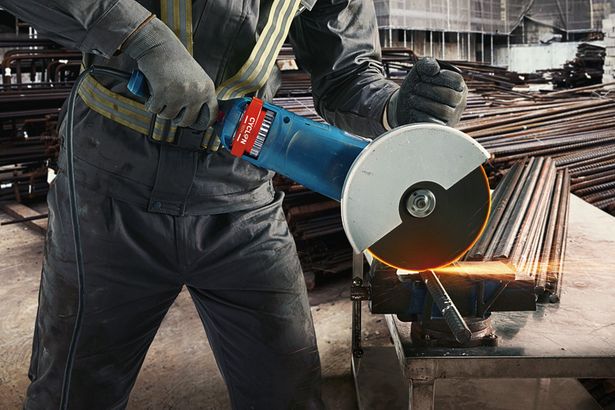

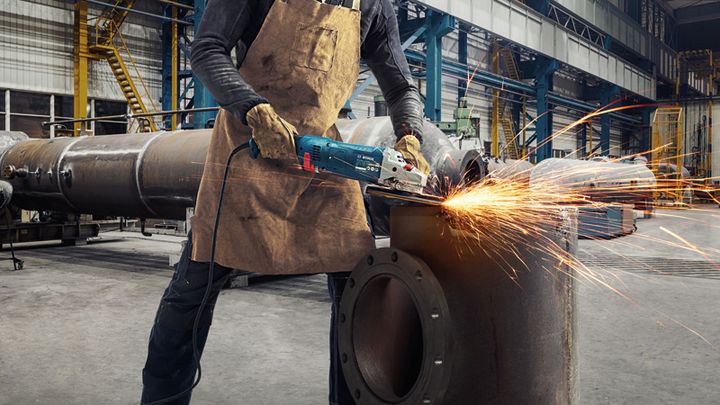

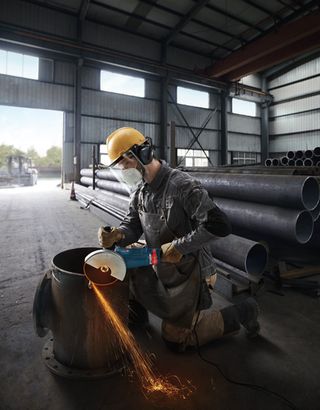

The GWS 24-230 JZ in action!
