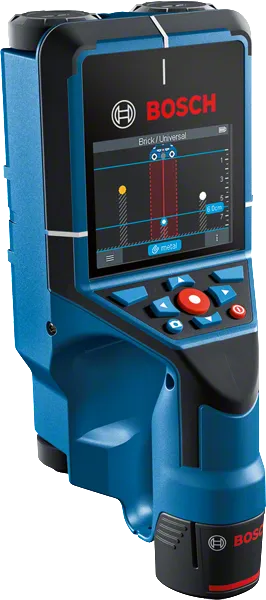

Wallscanner D-tect 200 C Professional

Detector

The wallscanner for exceptional results: top performance and easy documentation

  • Bosch Radar Technology and modern user interface for precision, higher safety, and clear illustration of detected objects
  • Multiple views flexibly offer best results in various situations

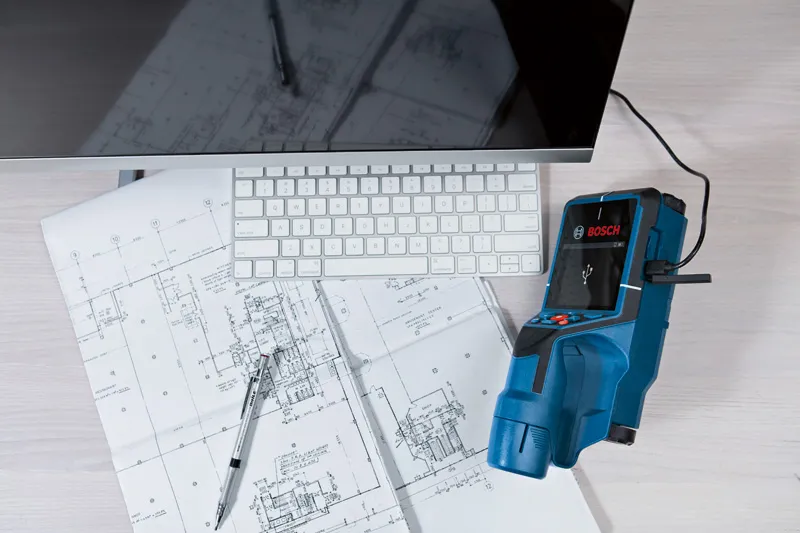

  • Screenshot feature supports quick and easy documentation; screenshots are downloadable via USB-C® and SD card slot

Functions & key features

 Detection of live cables
 Detection of metal
 Detection of wood
 Detection of water-filled plastic pipes

Your Selection

  • with 4 x battery (AA), accessory set
Show variant Buy now

with 4 x battery (AA), accessory set 0 601 081 600

Wallscanner D-tect 200 C Professional

Your Selection

Wallscanner D-tect 200 C
with 4 x battery (AA), accessory set

Order number: 0 601 081 600

Buy now

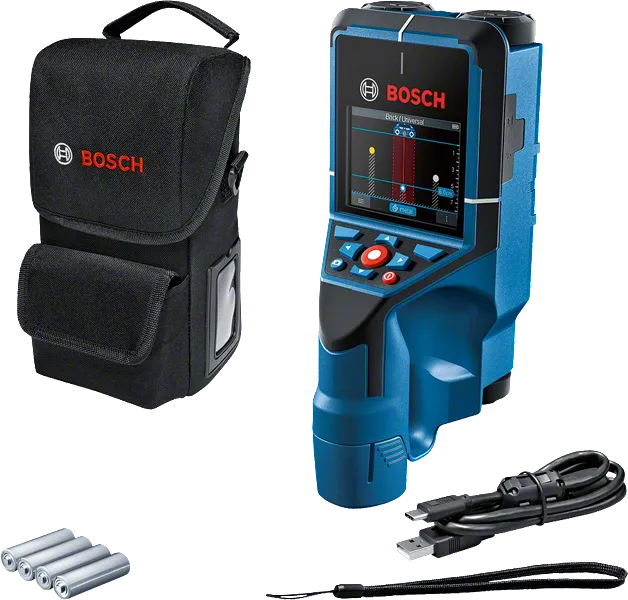

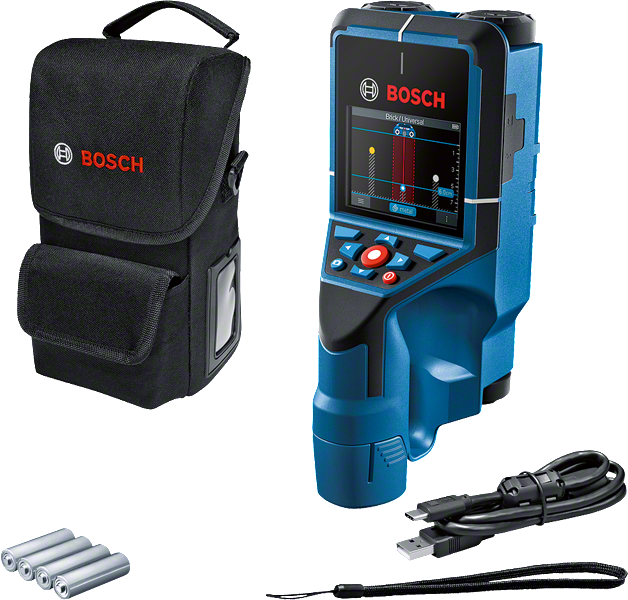

Included in this variant

  • Hand strap
  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Battery adapter (1600A017HF/1600A017HH)
  • USB-C® Cable

Technical data

Additional data

Bosch Radar Technology yes
Max. detection depth 200 mm
Detectable objects magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, Empty plastic pipes, water-filled plastic pipes, wooden substructures
Dust and splash protection IP 5X
Battery voltage 12.0 V
Detection depth, dry concrete, max. 200 mm
Detection depth, early age concrete, max. 60 mm
Detection depth, other wall types, max. 80 mm
Detection depth, wooden substructures, max. 38 mm
Accuracy ± 5 mm* (*plus use-dependent deviation)
Views Object view, Spot view, Signal View 2D, Signal View
Wall types Brick/Universal, Concrete, Drywall, Panel Heating, Early age concrete, Horizontal coring brick, Vertical coring brick

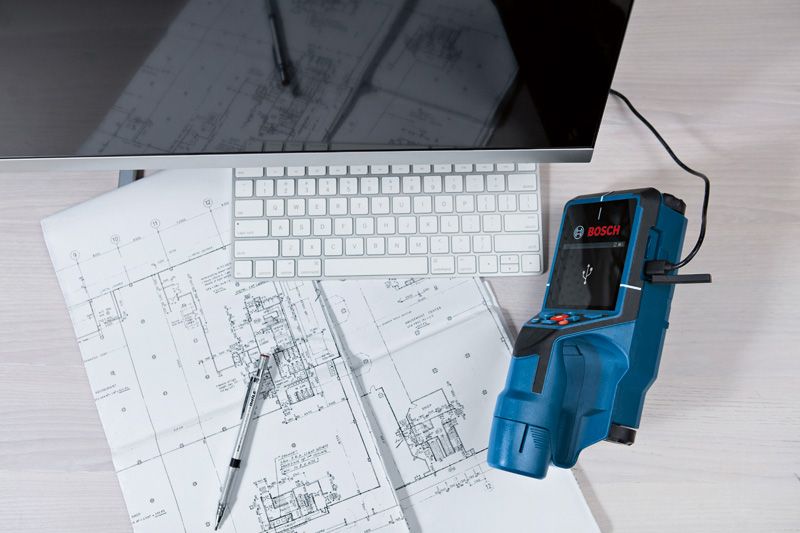

Documentation via USB-C, SD-Card
Updatable yes
Material identification Live cable, Magnetic metal, Non-magnetic metal, Non-metal material
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA), 4 x 1.2 V HR06 (AA)
Weight, approx. 0,7 kg
Additional function Leakage detection, distance measurement

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

Wallscanner D-tect 200 C Professional: Further information

Product Highlights

The D-tect 200 C Professional detects all common objects and illustrates them clearly, while making documentation easy. Equipped with Bosch Radar Technology and an improved user interface, it stands for safer and more precise construction work. Multiple views allow for conveniently choosing the best option for different applications, such as Spot View, that makes detection in hard-to-reach locations especially easy. To provide solid evidence, the wallscanner´s innovative screenshot feature enables quick documentation.

Equipment & Application

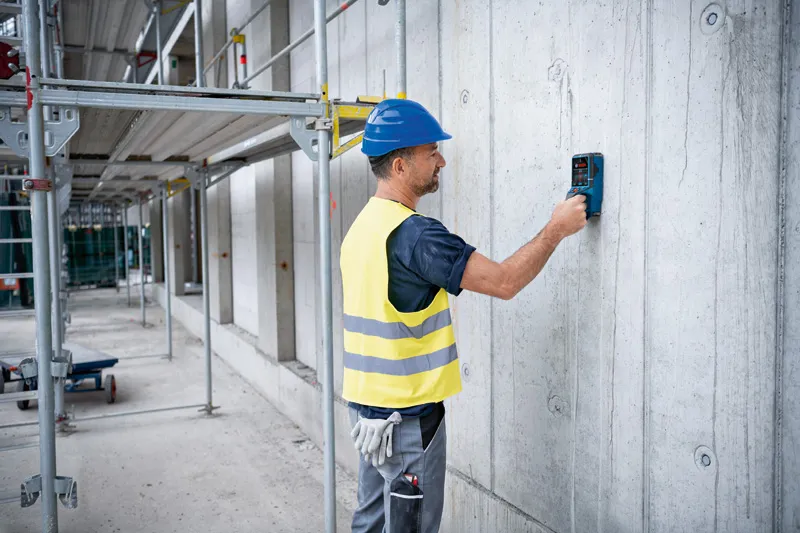

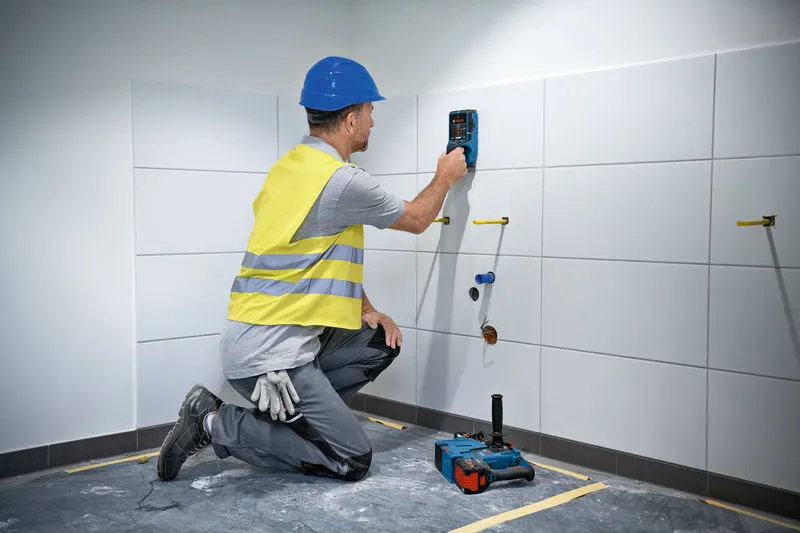

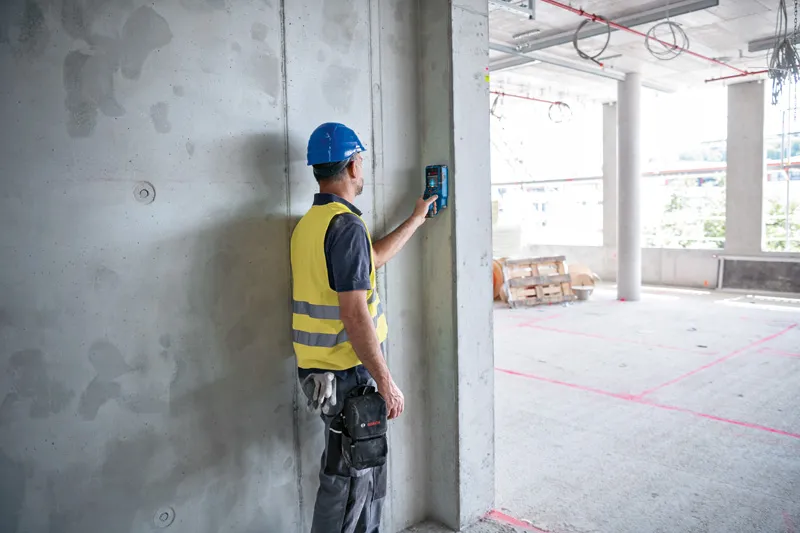

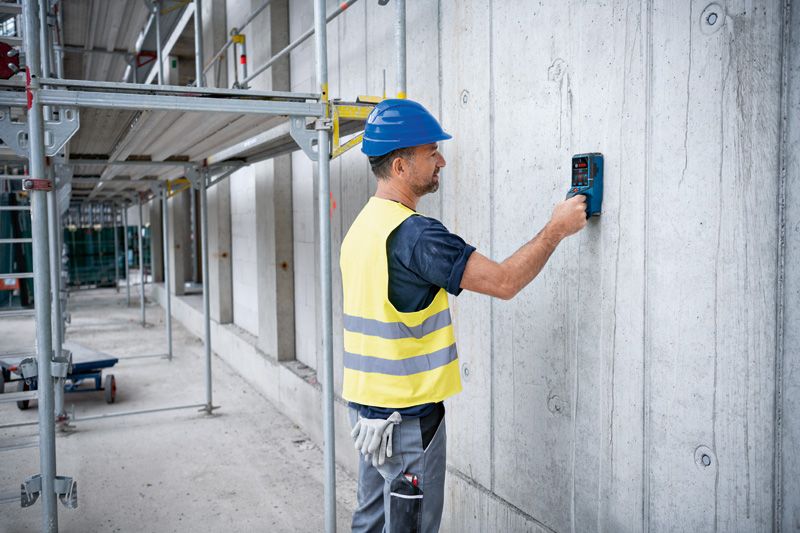

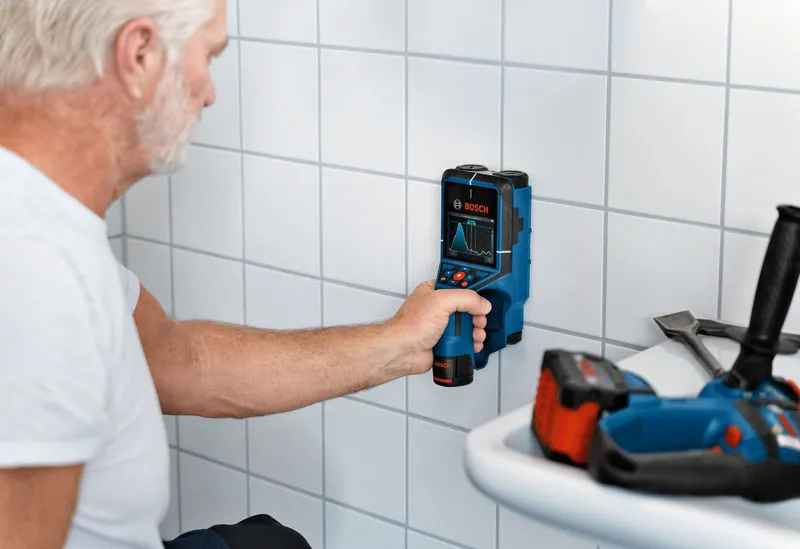

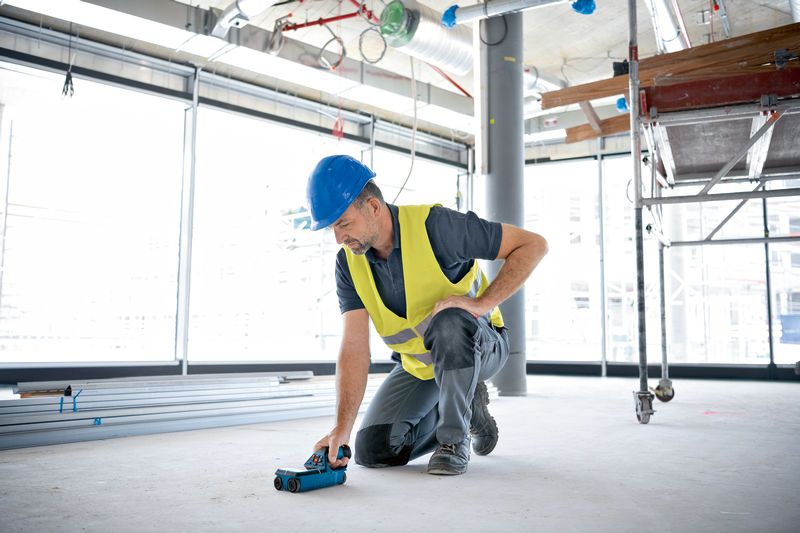

The D-tect 200 C Professional supports both indoor and outdoor jobs, prevents damage during drilling, and measures concrete coverage.

Additional Information

The wallscanner detects objects in depths up to 20 cm and indicates the object´s depth.
