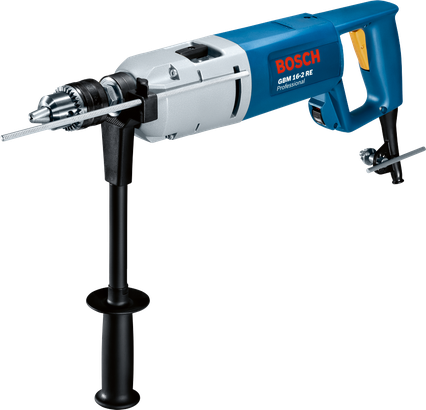

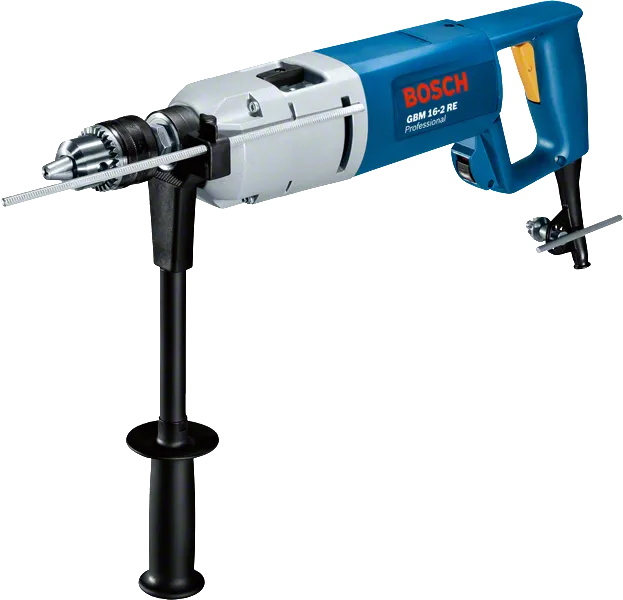

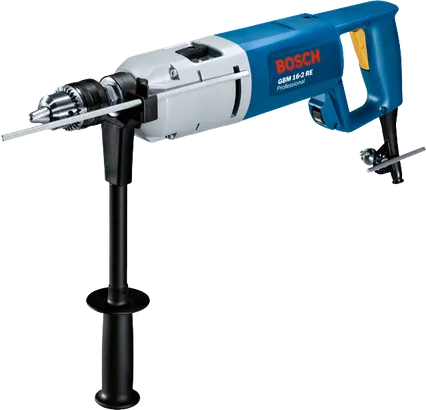

GBM 16-2 RE Professional

Drill

The perfect tool for formwork drilling

With spade handle for a firm grip
Control Electronic for exact pilot drilling
Forward/reverse rotation especially for loosening jammed formwork drill bits

Functions & key features

Your Selection

with auxiliary handle

Show variant

3,019.00 AED Recommended retail price excluding VAT

Check availability on location

Find a local dealer

Your Selected Variant

with auxiliary handle 0 601 120 503

3,019.00 AED Recommended retail price excluding VAT

Find a local dealer

GBM 16-2 RE Professional

Your Selection

with auxiliary handle

Order number: 0 601 120 503

3,019.00 AED

Recommended retail price excluding VAT

Find a local dealer

Included in this variant

Depth stop 310 mm

Order number: 1 613 001 003
Auxiliary handle (spare part number 3 602 025 021)

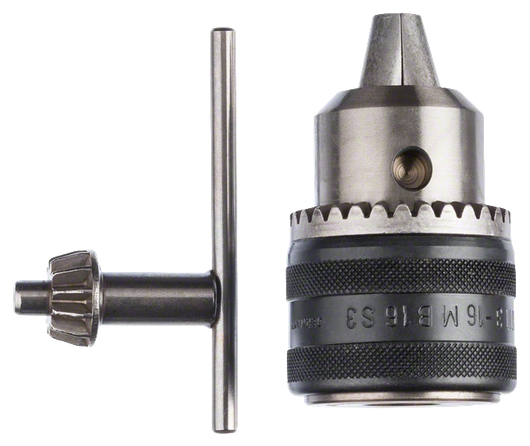

Keyed chuck 16 mm

Order number: 2 608 571 020

Your selection

Technical data

Additional data
Rated input power	1050 W
Weight	5 kg
Drill chuck, version	Keyed chuck
Voltage, electrical	230 V
Bit holder	Taper B16
No-load speed, 1st gear	600 rpm
No-load speed, 2nd gear	1,450 rpm
Power output	570 W
Rated speed	400 / 950 rpm
Rated torque	115.0 Nm
Drill spindle connecting thread	Taper B16
Max. torque	50.0 / 22.0 Nm

Drilling range
Drilling diameter in wood	40 / 20 mm
Drilling diameter in steel	16 / 8 mm
Drilling diameter in aluminium	20 / 13 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1 m/s²

Noise/vibration information
Sound pressure level	83 dB(A)
Sound power level	94 dB(A)
Uncertainty K	5 dB

Drilling in metal
Vibration emission value ah	2.5 m/s²
Uncertainty K	1 m/s²
