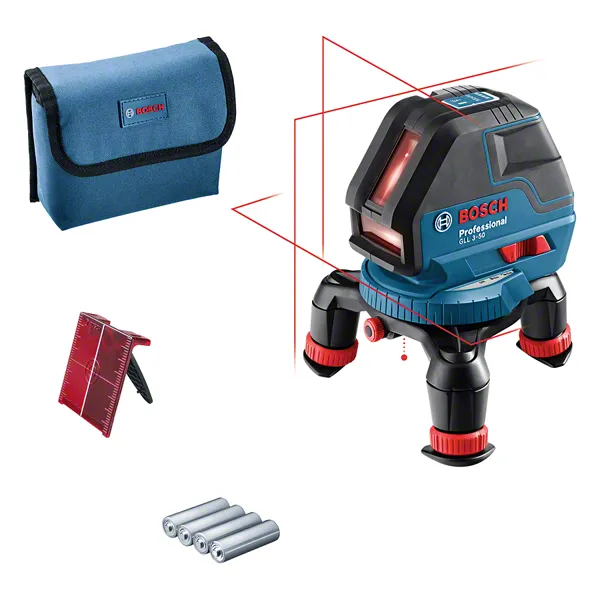

Line Laser GLL 3-50 Professional

The convenient solution for all standard levelling and transfer applications

from  1,669.00 AED Recommended retail price excluding VAT

Technical data
Additional data
Working range with receiver, value 50   m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Projection 3 lines + 1 plumb point
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 40   °C
Storage temperature -20 – 70   °C
Laser class 2
Working range up to 10   m
Working range with receiver up to 50 m
Working range without receiver 10 m
Working range of laser points, max. 5 m (bottom)
Self-levelling range ± 4°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 6 h
Tripod thread 1/4", 5/8"
Weight, approx. 0.94   kg
Colour of laser line red
Color of plumb points red
Plumb point accuracy ± 0.6 mm/m* (*plus use-dependent deviation)
Working range, value 10   m

Advantages

The convenient solution for all standard levelling and transfer applications

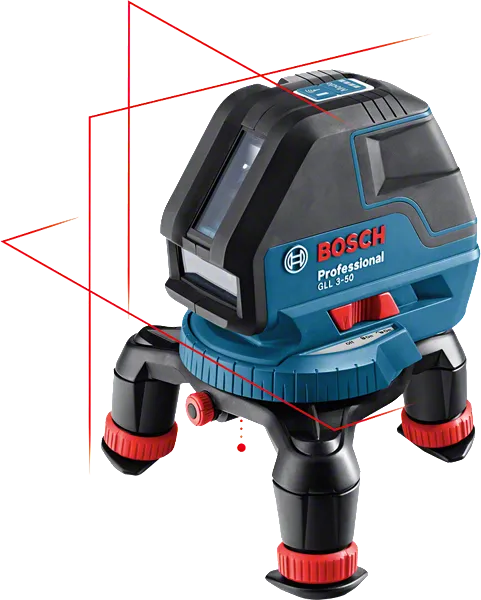

  • Two vertical laser lines, one horizontal laser line, one plumb dot: ideal for a wide range of jobs such as squaring

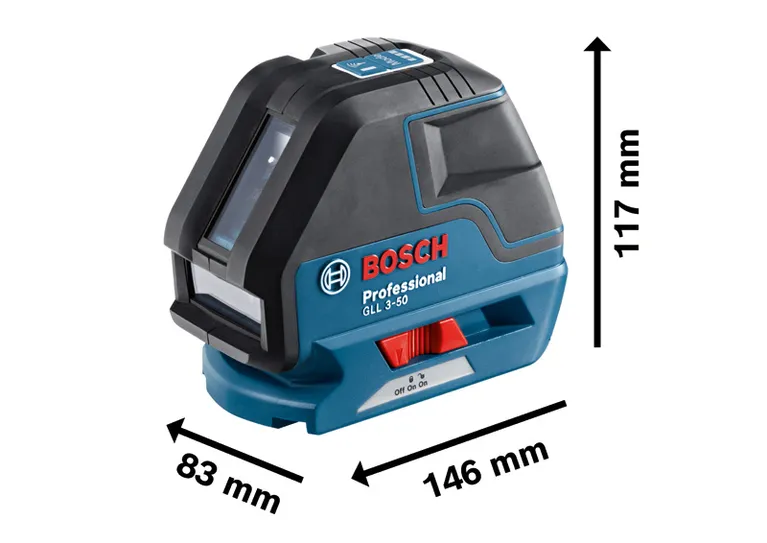

  • Compact design makes handling simple

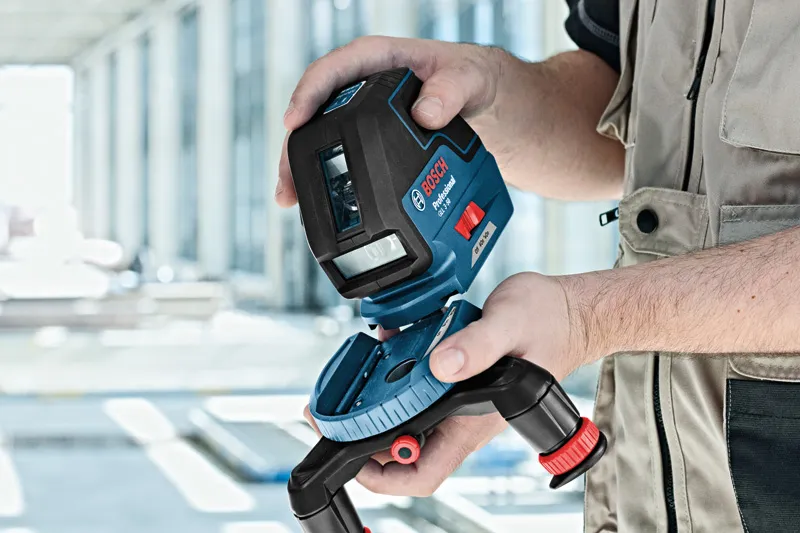

  • Rotating mini-tripod with height-adjustable feet and fine adjustment of the vertical line offer great flexibility

Functions

Line configuration
Line accuracy of ± 0.3 mm/m* (*plus use-dependent deviation)
Point accuracy of ± 0.6 mm/m* (*plus use-dependent deviation)
Laser class 2
IP54 dust and splash water protection
Icon
Working range + receiver Range with receiver up to 50 m
Working range Range of up to 10 m
Icon
Icon
Icon
Laser scheme packaging Accurate alignment due to horizontal and vertical multi laser lines
IP54 dust and splash water protection
Line accuracy of ± 0.3 mm/m* (*plus use-dependent deviation)
Point accuracy of ± 0.6 mm/m* (*plus use-dependent deviation)
Levelling time Short levelling time of four seconds
Icon

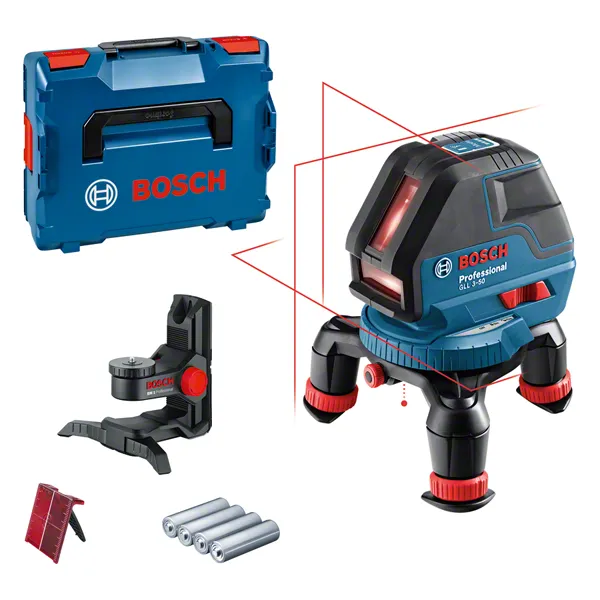

What’s Included in this Package
in L-BOXX 136 with 4 x battery (AA), laser target plate
in L-BOXX 136 with 4 x battery (AA), laser target plate
Order number: 0 601 063 802
  • Laser target plate
  • L-BOXX inlay for tool
  • L-BOXX 136 1 600 A01 2G0

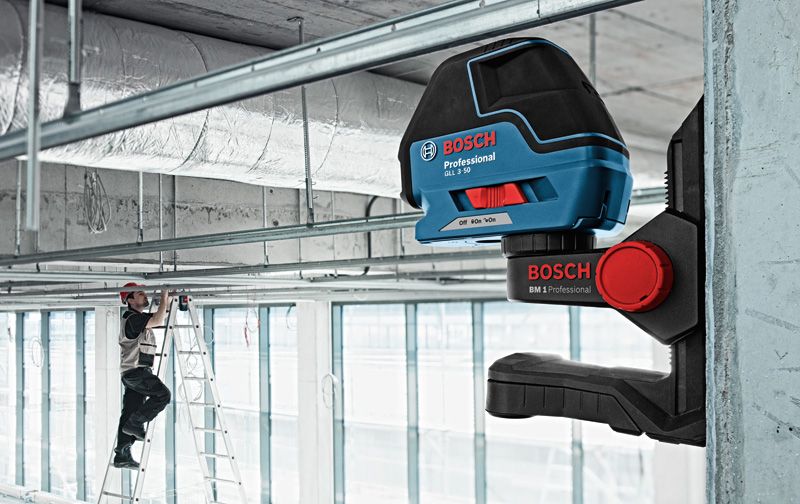

  • Universal Holder BM 1 Professional 0 601 015 A00
  • 4 x 1.5 V LR6 battery (AA)
1,669.00 AED Recommended retail price excluding VAT

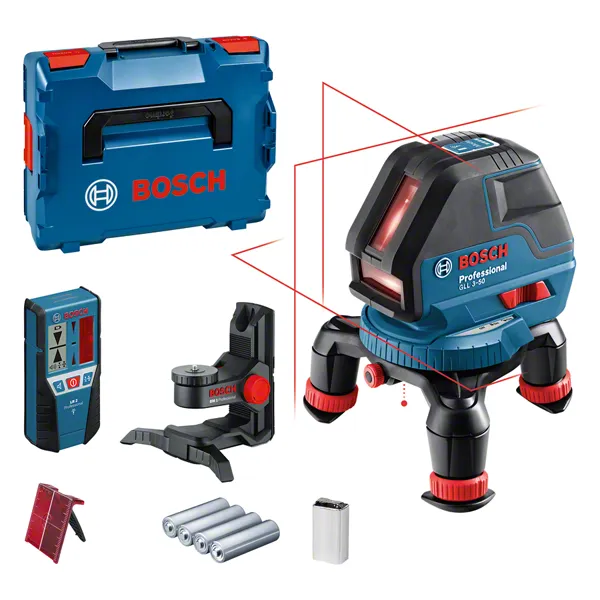

Product variations (3)

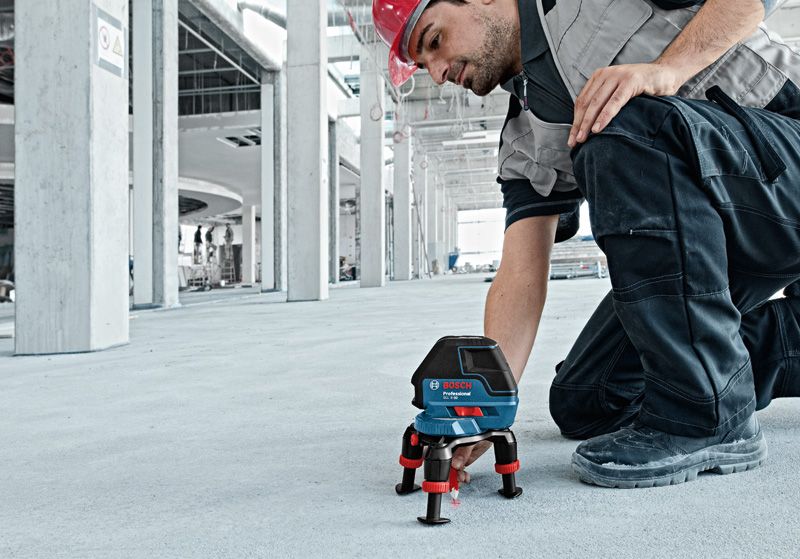

The GLL 3-50 in action!
