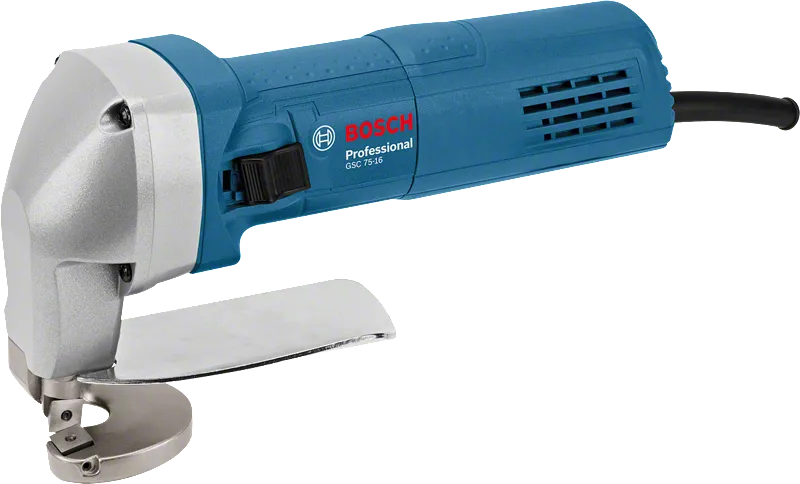

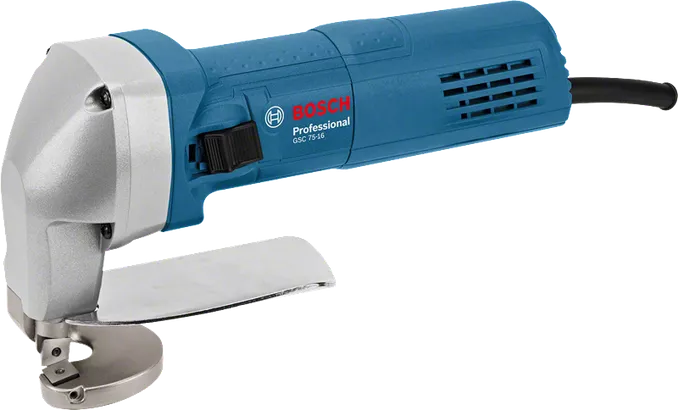

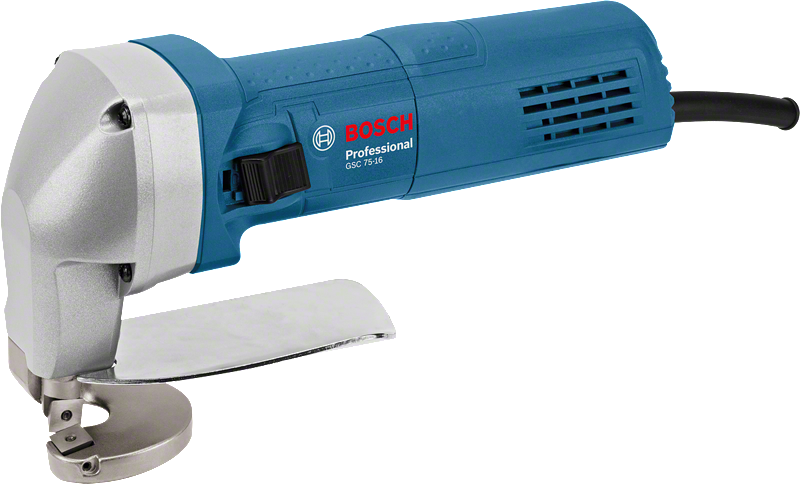

GSC 75-16 Professional
Shear
Bosch´s powerful shear for a wide range of applications in the 750 W category
- Strong 750 W motor enables cutting various materials
- Perfect handling due to narrow grip circumference
- Design of the shear head offers excellent manoeuvrability in curves
Functions & key features
with hex key
0 601 500 500
GSC 75-16 Professional
Your Selection
with hex key
Order number: 0 601 500 500
Find a local dealerIncluded in this variant
-
Hex key WAF 3 (spare part number 1 907 950 004)
-
1 x upper and lower blade for metal shearOrder number: 2 608 635 243
Technical data
Additional data
Cutting capacity in steel (400 N/mm²), max.
1.6 mm
No-load stroke rate
5,200 spm
Voltage
230 V
Material that can be processed
Steel up to 400 N/mm² at 1.6 mm
Smallest radius
35 mm
Stroke rate under load
4,000 spm
Weight
1.7 kg
Cutting capacity in steel (600 N/mm²), max.
1.2 mm
Cutting capacity in steel (800 N/mm²), max.
0.7 mm
Cutting capacity in aluminium (200 N/mm²), max.
2.2 mm
* You can find more information about the deviations in the following link:
GSC 75-16 Professional: Further information
Product Highlights
The GSC 75-16 Professional is Bosch´s powerful corded shear, ideal for a wide range of applications in the 750 W category. Its strong 750 W motor enables cutting various materials. Perfect handling is ensured by its narrow grip circumference. The design of the shear head offers excellent manoeuvrability in curves. This shear is intended for cutting metal.
