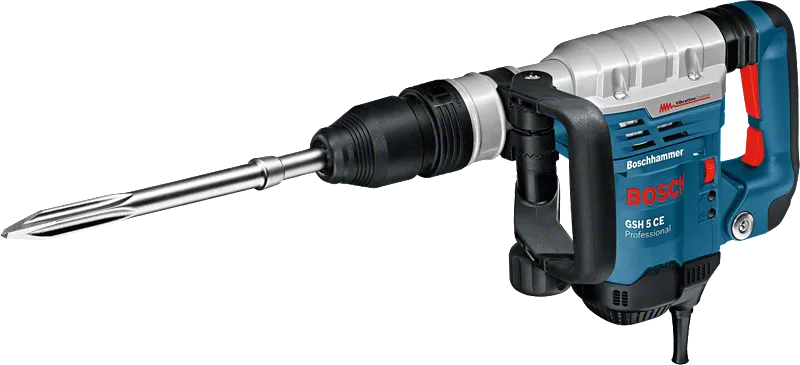

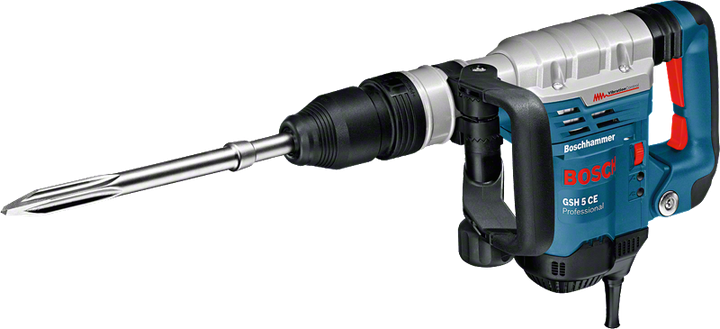

Demolition Hammer with SDS max GSH 5 CE Professional

The chiselling specialist with Vibration Control

Technical data
Additional data
Rated input power* 1,150 W
Impact energy* 2 - 8.3 J
Impact rate at rated speed 1,300 – 2,900 bpm
Weight* 6.2 kg
Tool dimensions (width) 105 mm
Tool dimensions (length) 480 mm
Tool dimensions (height) 235 mm
Tool holder SDS max
Total vibration values (Chiselling)
Vibration emission value ah 11 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 105 dB(A). Uncertainty K= 3 dB.


The chiselling specialist with Vibration Control

  • Impact force of 8.3 J for the highest material removal rate in its class
  • Vibration Control of 8 m/s² ensures convenient working, even in time-intensive applications
  • Long lifetime even in extremely hard operation thanks to robust metal housing


Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Best work results with speed pre-selection for applications requiring material-specific speed
Optimal power transmission for large hammers
Best work results with constant speed thanks to electronic regulation of speed - even under load
Construction The professional power tools for construction from Bosch.
What’s Included in this Package

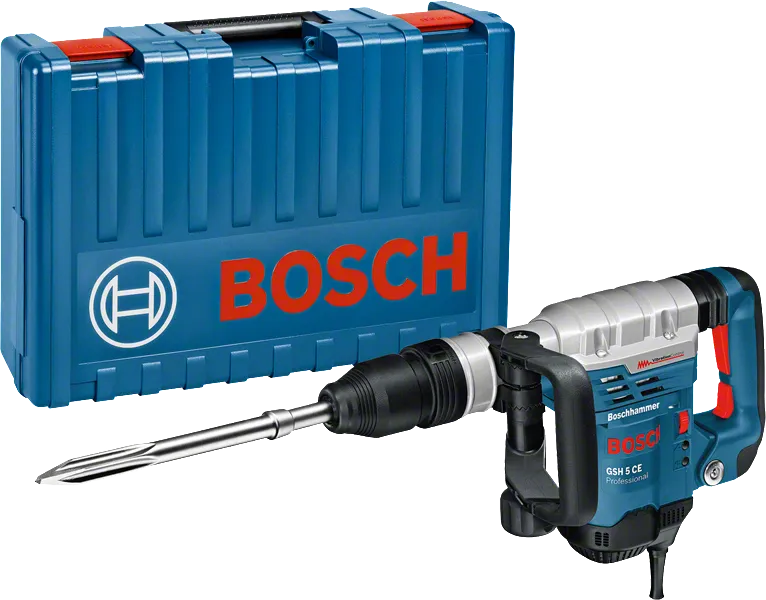

in carrying case with accessory set, (Voltage 240 V)
in carrying case with accessory set, (Voltage 240 V)
Order number: 0 611 321 070
  • Auxiliary handle 2 602 025 142
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Pointed chisel 400 mm 2 608 690 103
  • Voltage 240 V
  • Carrying case (spare part number 1 605 438 1CC)
Product variations (2)

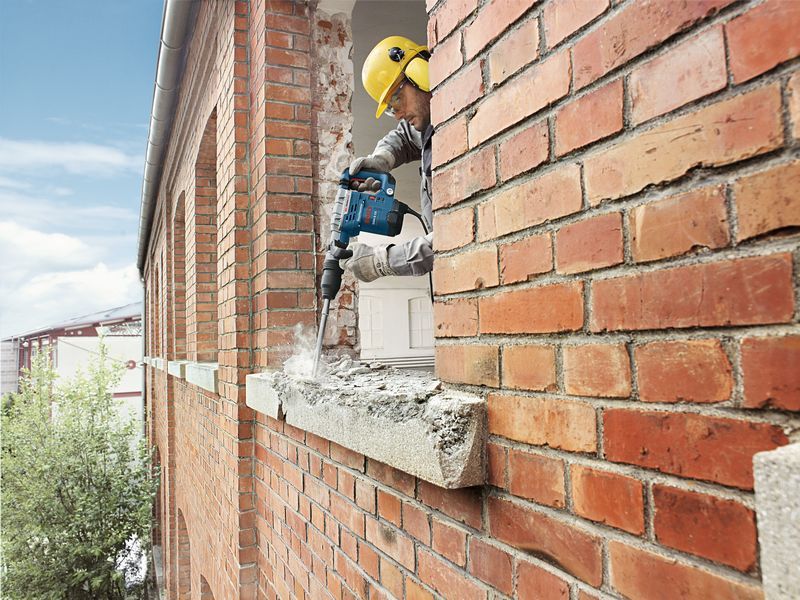

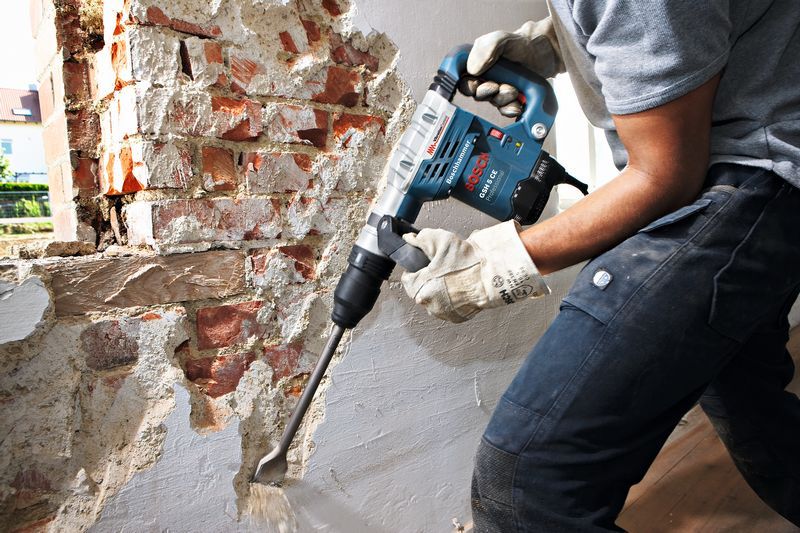

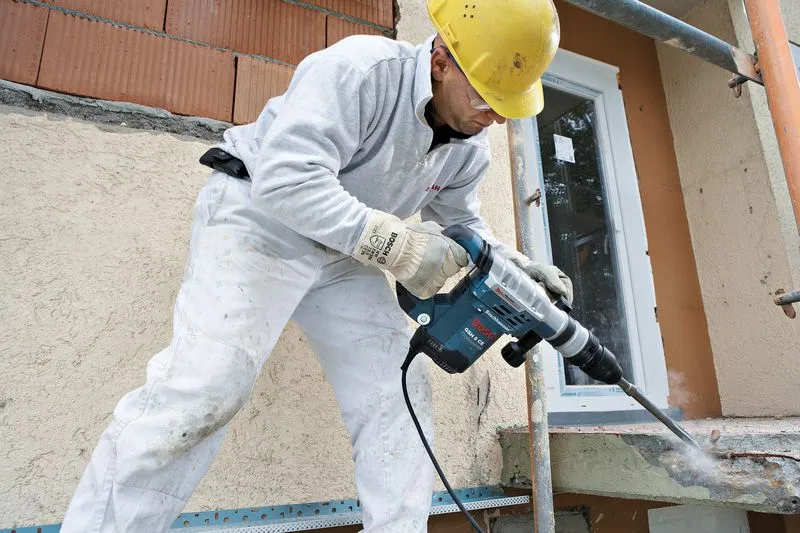

The GSH 5 CE in action!
