For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 5 options
Number of teeth 3 options
Width of cut (b1) mm 4 options
Choose a pack size 1 Pcs
Eco for Aluminium Circular Saw Blade is the preferred choice for reliable cuts in aluminium
Available product options: 6
| Part number | Outer diameter mm | Bore size mm | Bore with reduction ring mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Pack quantity | ||
|---|---|---|---|---|---|---|---|
| 2 608 644 387 | 150 | 20 | 16 | 2/1.4 | 1 Pcs | Find a local dealer | |
| 2 608 644 388 | 160 | 20 | 16 | 2/1.4 | 1 Pcs | Find a local dealer | |
| 2 608 644 390 | 190 | 20 | 16 | 2.2/1.6 | 1 Pcs | Find a local dealer | |
| 2 608 644 389 | 190 | 30 | - | 2.2/1.6 | 1 Pcs | Find a local dealer | |
| 2 608 644 391 | 210 | 30 | - | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 644 392 | 230 | 30 | - | 3/2.2 | 1 Pcs | Find a local dealer |
out of products

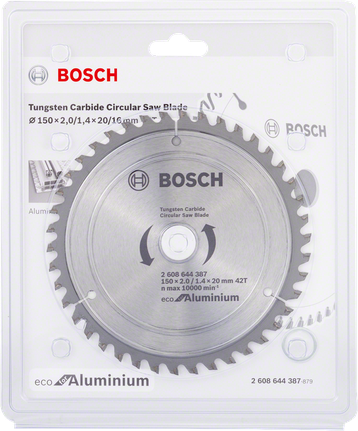

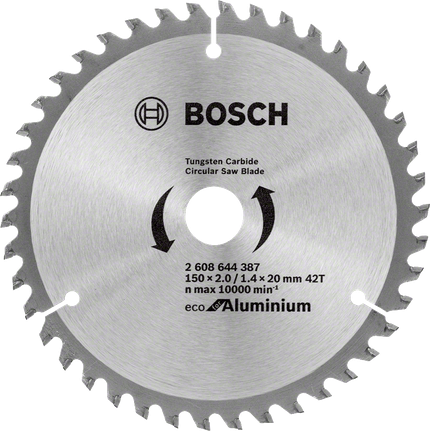

| Part number 2608644387 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 150 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.4 |
| Number of teeth | 42 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |

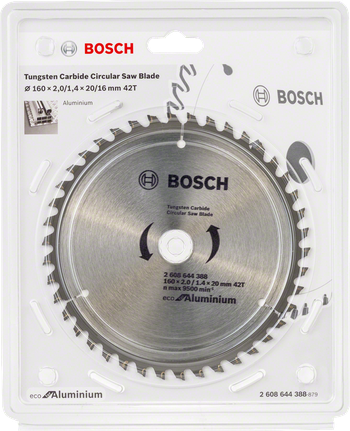

| Part number 2608644388 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.4 |
| Number of teeth | 42 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |

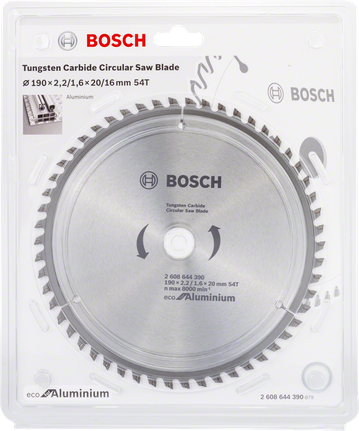

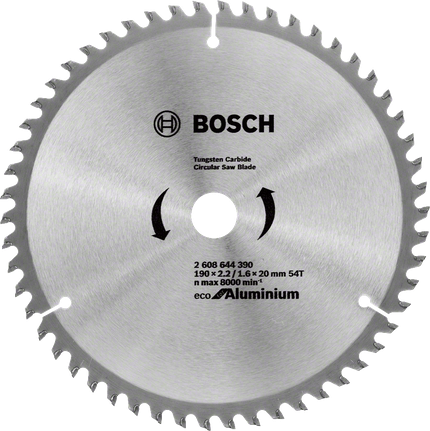

| Part number 2608644390 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 54 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |

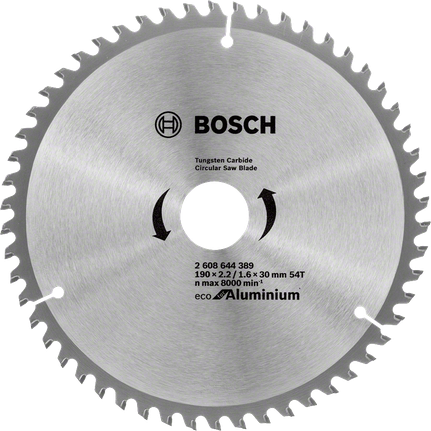

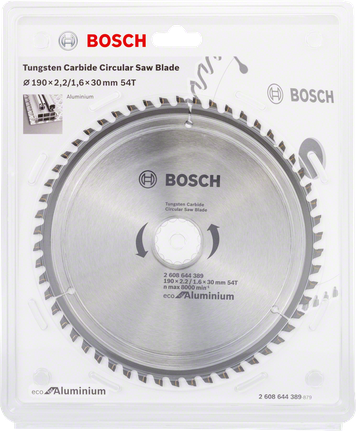

| Part number 2608644389 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 54 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |

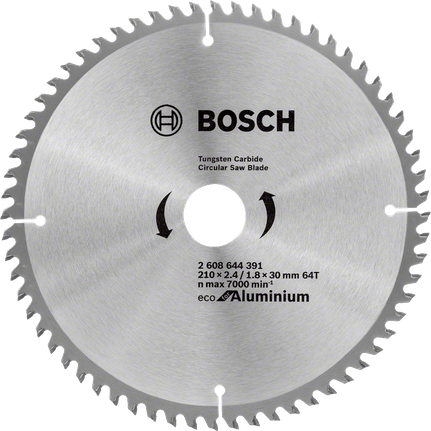

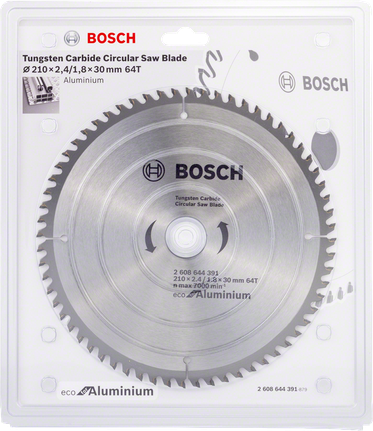

| Part number 2608644391 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 64 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 7000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |

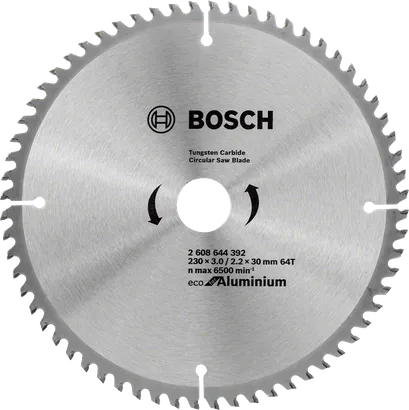

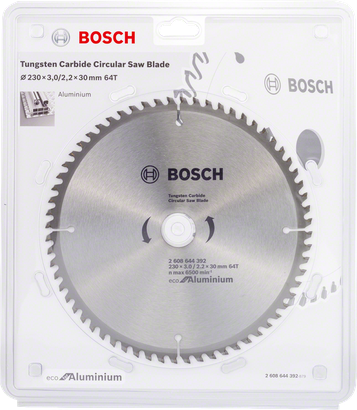

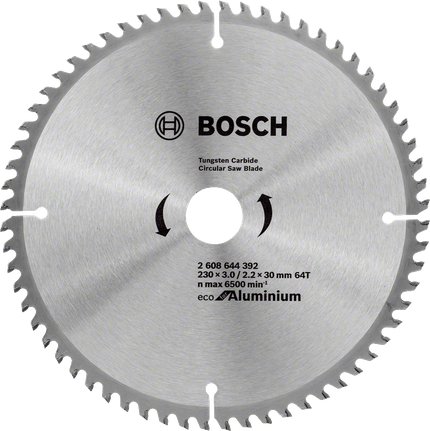

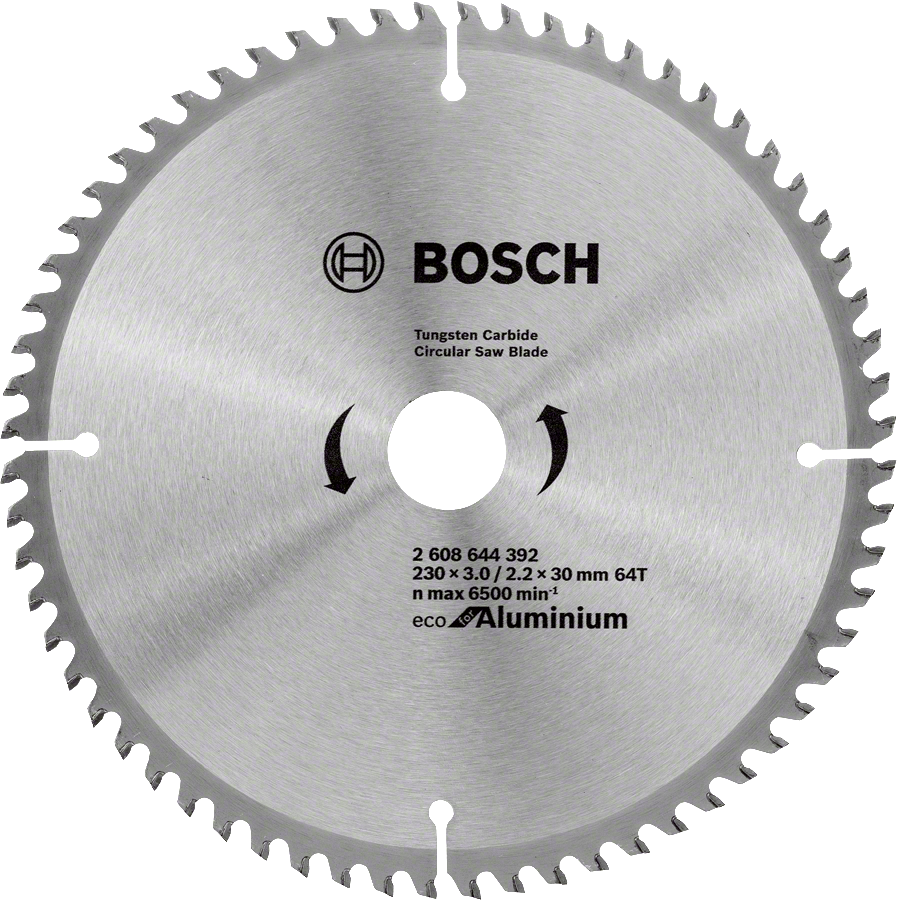

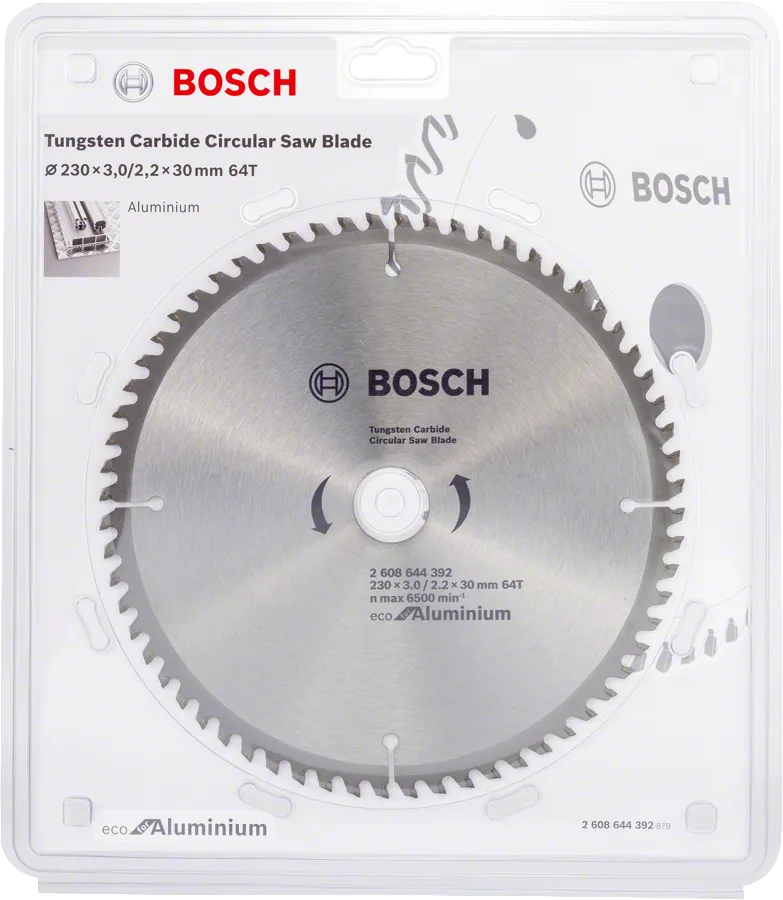

| Part number 2608644392 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 64 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |
