For table saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 2 options
Number of teeth 3 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Eco for Wood Circular Saw Blade is the preferred choice for reliable cuts in wood
Available product options: 4
| Part number | Outer diameter mm | Bore size mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Number of teeth | Pack quantity | ||
|---|---|---|---|---|---|---|---|
| 2 608 644 383 | 254 | 30 | 3/2 | 40 | 1 Pcs | Find a local dealer | |
| 2 608 644 384 | 254 | 30 | 3/2 | 80 | 1 Pcs | Find a local dealer | |
| 2 608 644 385 | 305 | 30 | 3.2/2.2 | 40 | 1 Pcs | Find a local dealer | |
| 2 608 644 386 | 305 | 30 | 3.2/2.2 | 100 | 1 Pcs | Find a local dealer |
out of products

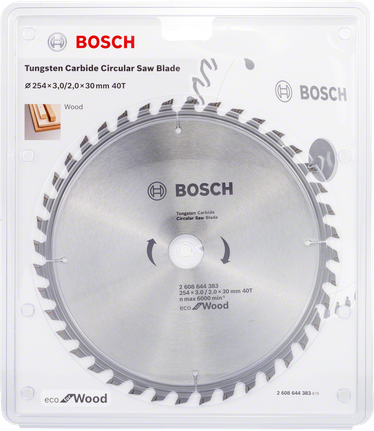

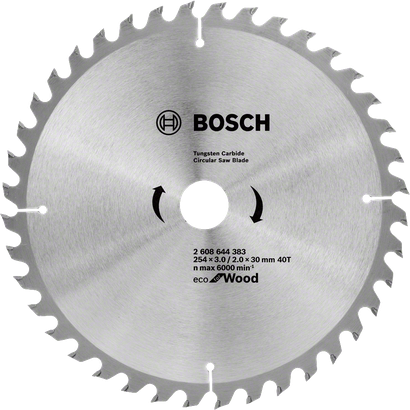

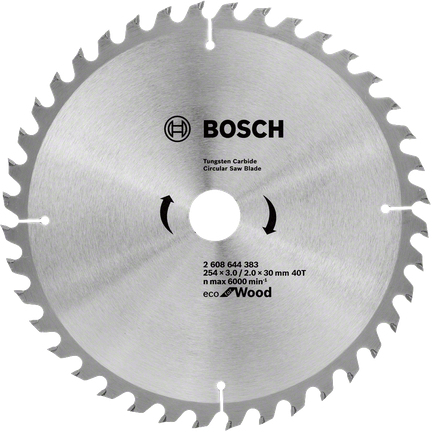

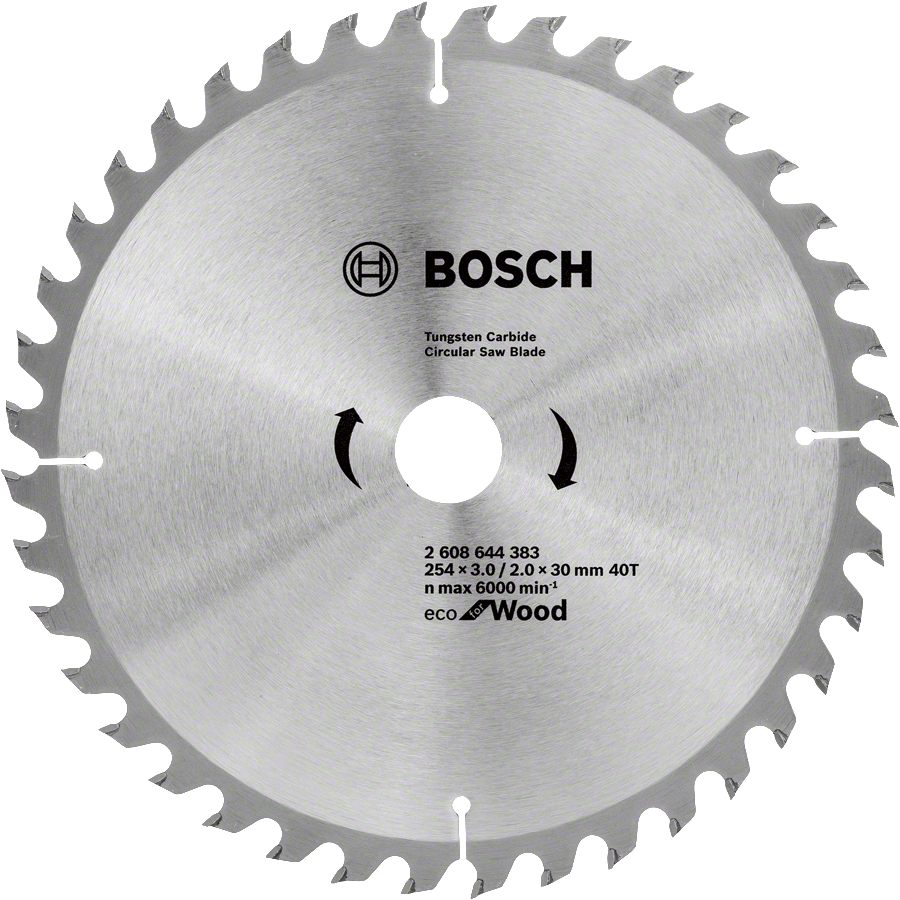

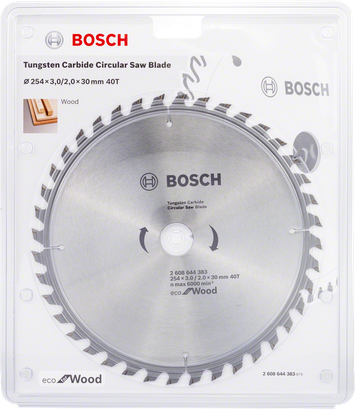

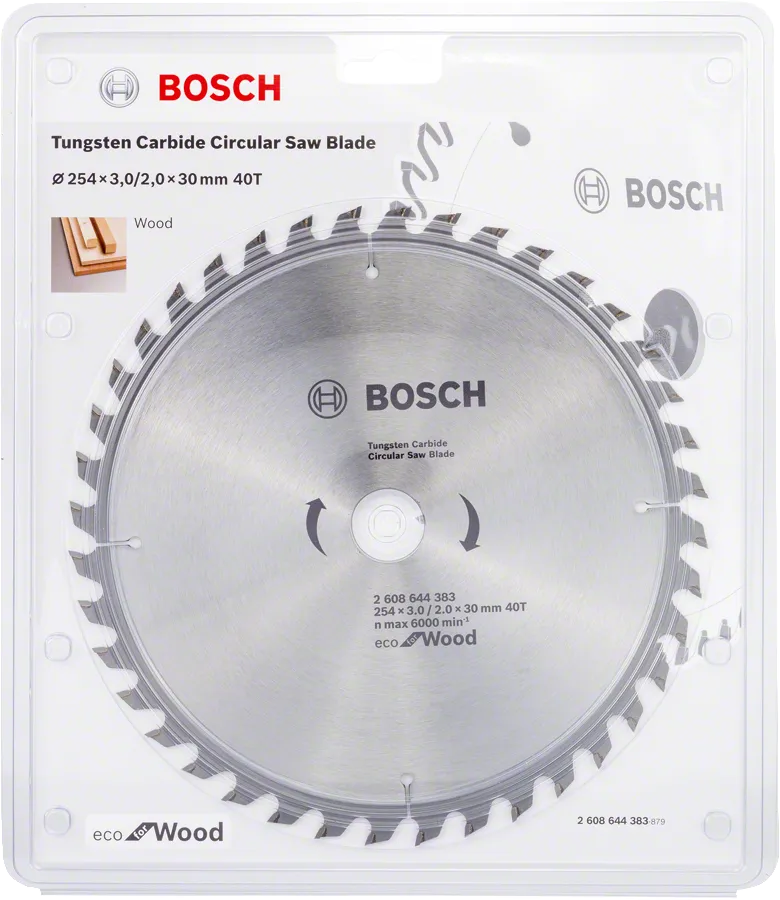

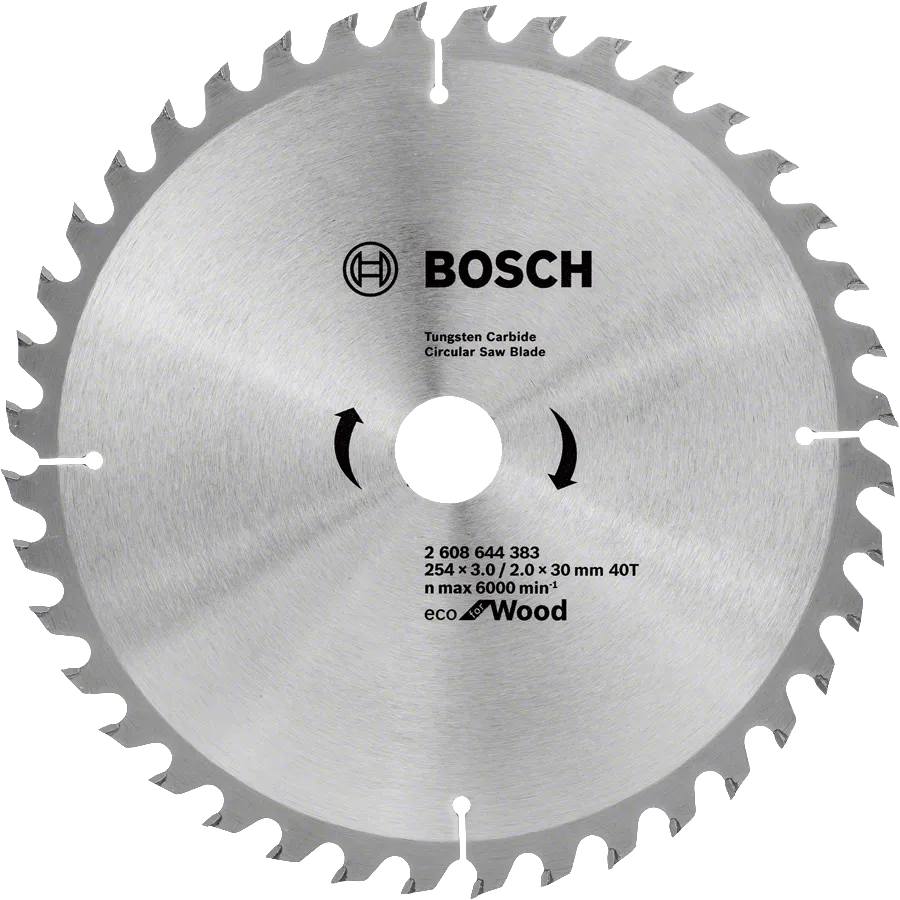

| Part number 2608644383 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

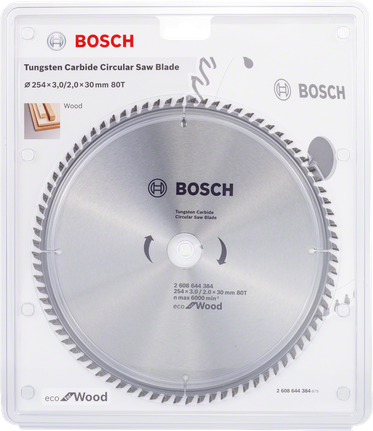

| Part number 2608644384 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2 |
| Number of teeth | 80 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 13 |
| Relief angle ° β | 17 |

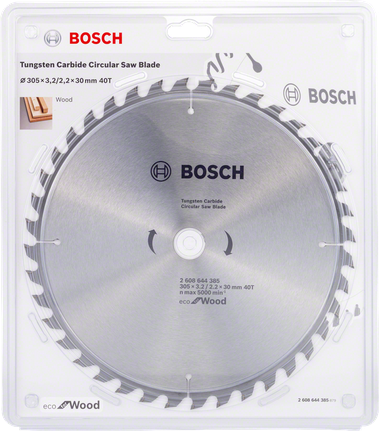

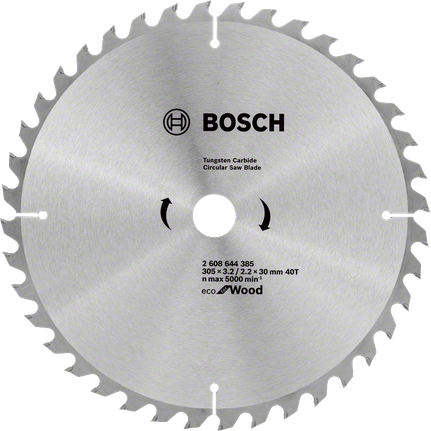

| Part number 2608644385 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

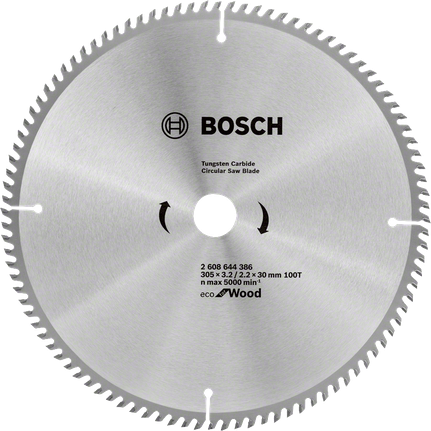

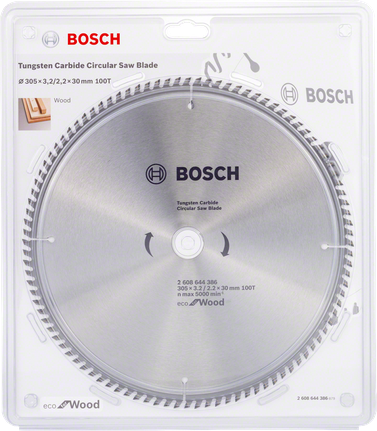

| Part number 2608644386 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 100 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 4 |
