Laser measures
![GLM 500]( "GLM 500")

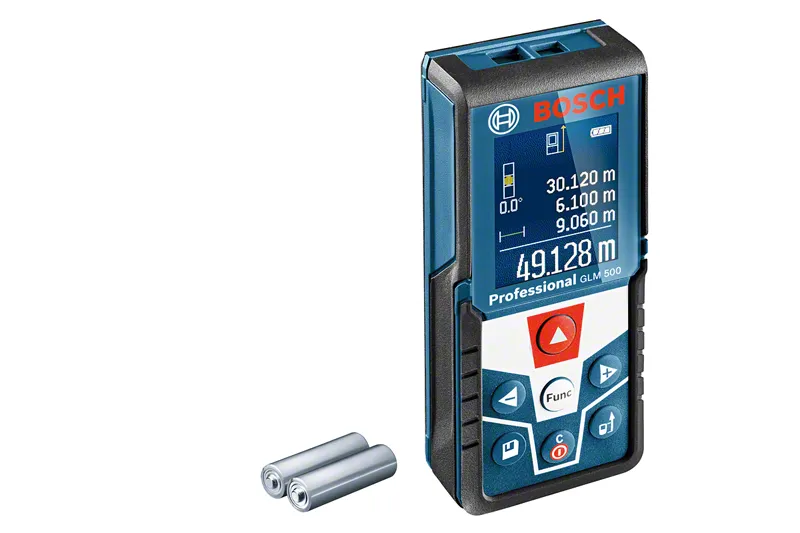

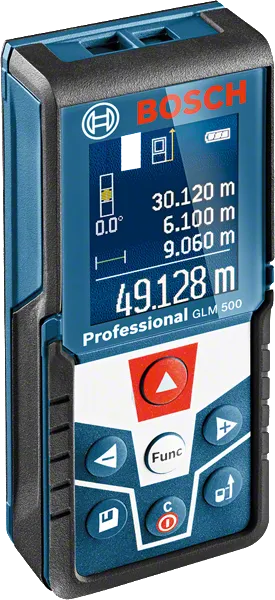

GLM 500 Professional
Laser Measure
The 2-in-1 360º Measuring Device
- Easy and Fun - Colour display for high user intuition
- Precise - Measuring range of up to 50 metres
- Versatile - 2-in-1 distance and inclination measurer
Functions & key features
GLM 500 Professional
0 601 072 H00
GLM 500 Professional
Your Selection
Technical data
Additional data |
|
|---|---|
| Dust and splash protection | IP 54 |
| Measurement time, typical | < 0.5 s |
| Laser diode | 635 nm, < 1 mW |
| Measurement range* | 0.05 – 50.00 m |
| Laser class | 2 |
| Measurement accuracy, typical* | ± 1.5 mmᵈ |
| Measurement range of incline measurement | 0 – 360° (4 x 90°) |
| Measuring accuracy (typical)* | ± 0.2°* (*plus use-dependent deviation) |
| Measurement time, max. | 4 s |
| Power supply | 2 x 1.5 V LR03 (AAA) |
| Automatic deactivation | 5 min |
| Weight, approx.** | 0.1 kg |
| Units of measurement | m/cm, ft/inch |
| Memory capacity (values) | 20 |
| Battery lifetime, individual measurements, approx. | 10,000 |
| Battery lifetime, operating time, approx. | 2.5 h |
| Tripod thread | 1/4" |
| Laser colour | Red |
| Measuring range, up to | 50 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
