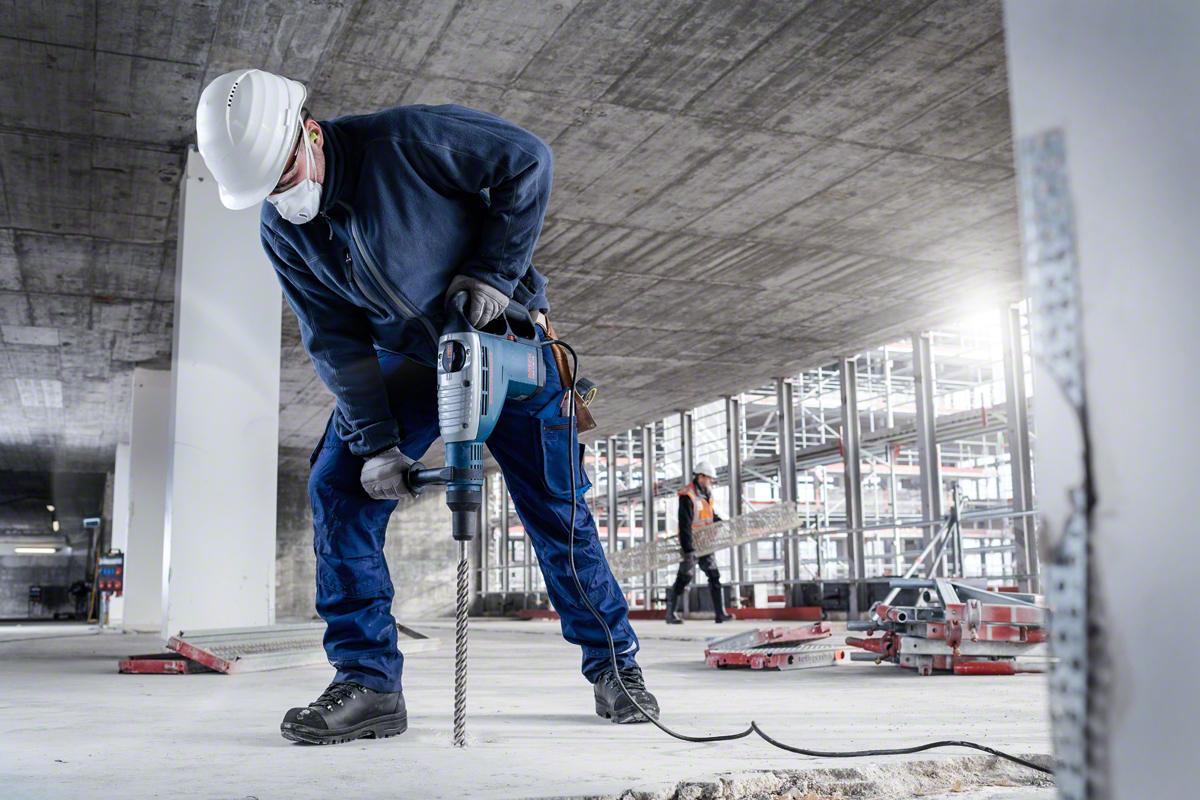

A person wearing safety equipment drills into a concrete ceiling at a construction site.

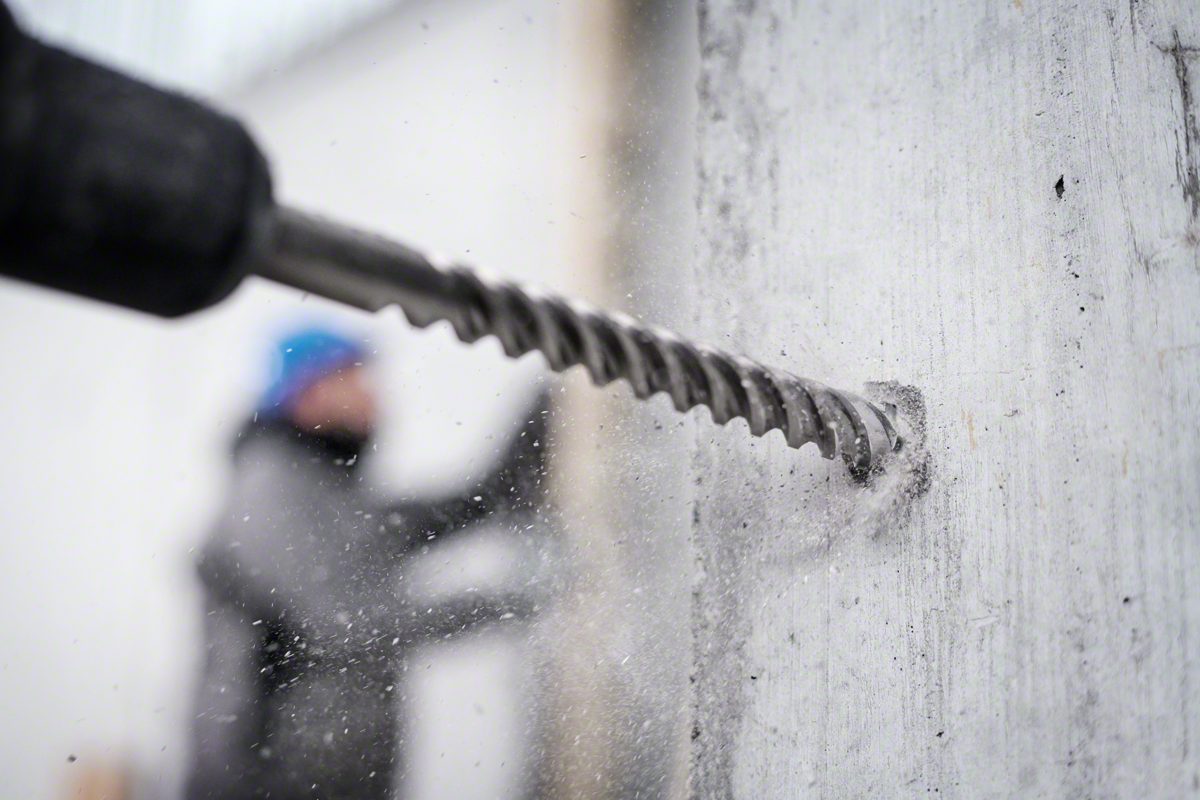

A person wearing safety equipment drills into concrete, producing dust.

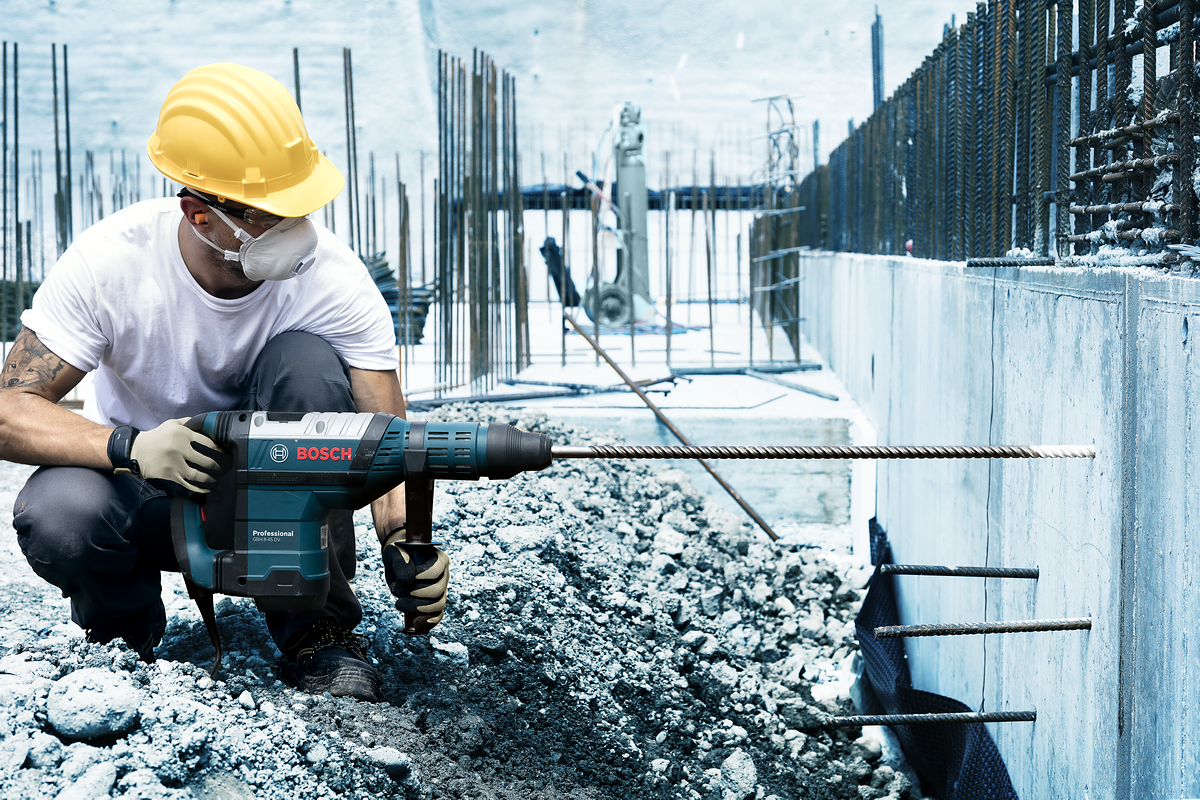

Person wearing safety equipment drills into concrete floor on a construction site.
Bosch SDS max-8X hammer drill bit for concrete.
Bosch SDS max-8X hammer drill bit.
A person wearing safety equipment drills into a concrete ceiling at a construction site.
A person wearing safety equipment drills into concrete, producing dust.
Person wearing safety equipment drills into concrete floor on a construction site.
SDS max-8X Hammer Drill Bit

SDS max-8X Hammer Drill Bit

For rotary hammers

SDS max-8X Hammer Drill Bit enables 50% more durability in toughest applications
  • SDS max-8X Hammer Drill Bit enables 50% more durability in toughest applications
  • Full-carbide, 4-cutter head guarantees exceptional performance and resistance in reinforced concrete
  • Extremely high stress and heat resistant due to strong and lasting welded bond between steel body and full carbide head
  • Ultimately sharp 90° centering tip provides an accurate start when drilling
  • Fits all SDS max rotary hammers
View more View less
Materials
Soft stone.
Hard stone.
Concrete.
Reinforced concrete.
Concrete building block.
Select options
Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Select options

Diameter (D) mm 11 options

Working length mm 4 options

Total length mm 8 options

Choose a pack size 2 options

Available product options (47)
SDS max-8X Hammer Drill Bit

Fits tools of most brands

Drill bit positioned near a power tool chuck, ready for attachment.
Rotary hammer drill bit attached to a chuck for heavy-duty drilling tasks.
Rotary hammer drill with a spiral bit fitted in the chuck.

Fits all SDS max rotary hammers

50% More Durability in Toughest Applications

SDS max-8X Hammer Drill Bit enables 50% more durability in toughest applications

  • Extremely high stress and heat resistant due to strong and lasting welded bond between steel body and full carbide head
  • Ultimately sharp 90° centering tip provides an accurate start when drilling

Product Options

Available product options: 47

Expand Part number Diameter (D) mm Working length mm Total length mm Pack quantity Availability
2 608 578 602 12.00 200 340 1 Pcs Find a local dealer
2 608 578 603 12.00 400 540 1 Pcs Find a local dealer

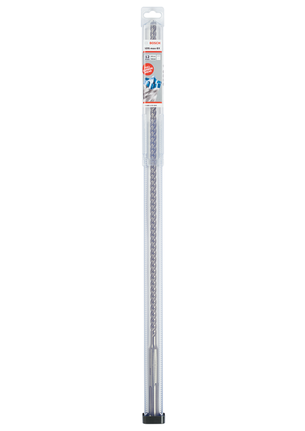

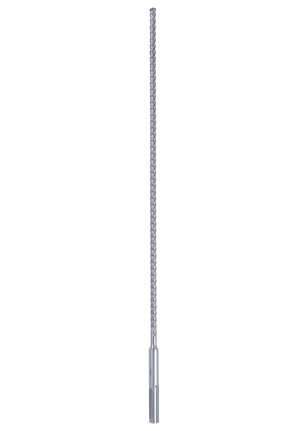

2 608 578 604 12.00 600 740 1 Pcs Find a local dealer

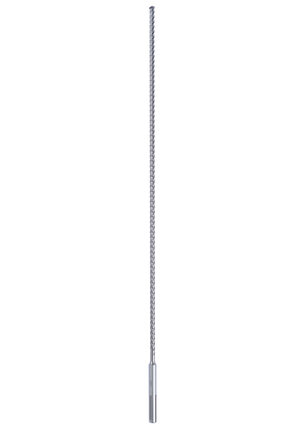

2 608 578 605 12.00 800 940 1 Pcs Find a local dealer
2 608 578 606 14.00 200 340 1 Pcs Find a local dealer
2 608 578 607 14.00 400 540 1 Pcs Find a local dealer

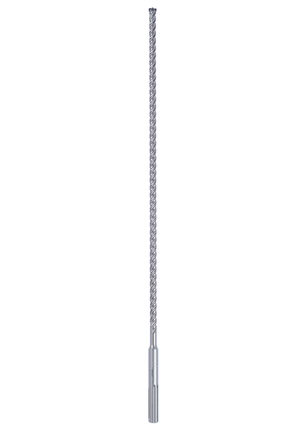

2 608 578 608 14.00 600 740 1 Pcs Find a local dealer

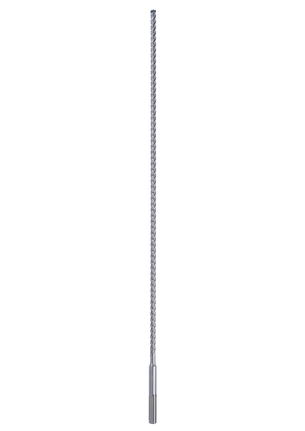

2 608 578 609 14.00 800 940 1 Pcs Find a local dealer
2 608 578 612 16.00 200 340 1 Pcs Find a local dealer
2 608 578 613 16.00 400 540 1 Pcs Find a local dealer

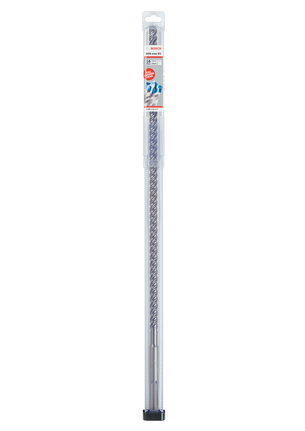

2 608 578 614 16.00 600 740 1 Pcs Find a local dealer

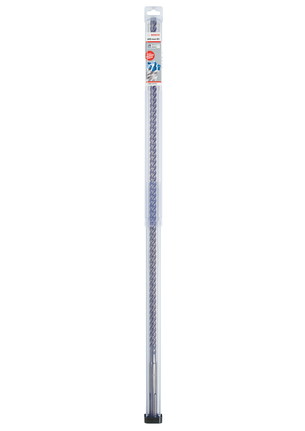

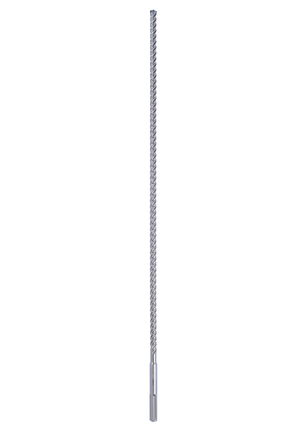

2 608 578 615 16.00 800 940 1 Pcs Find a local dealer
2 608 578 619 18.00 200 340 1 Pcs Find a local dealer
2 608 578 620 18.00 400 540 1 Pcs Find a local dealer

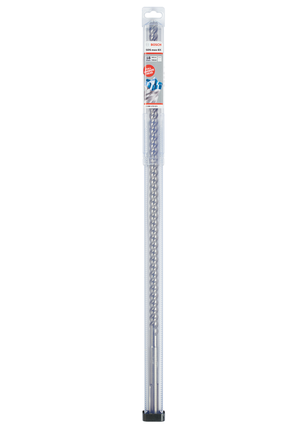

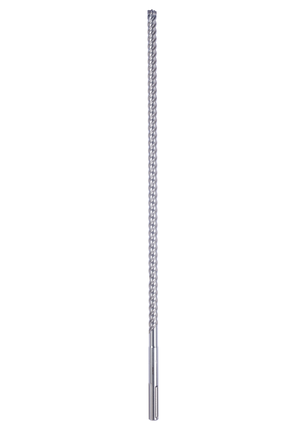

2 608 578 621 18.00 600 740 1 Pcs Find a local dealer

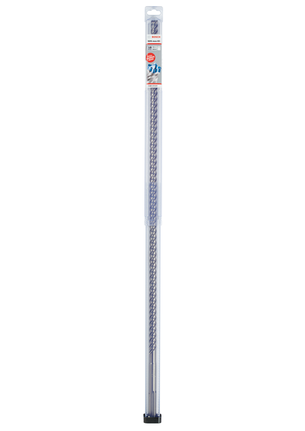

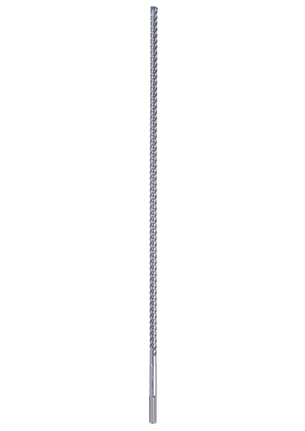

2 608 578 622 18.00 800 940 1 Pcs Find a local dealer
2 608 578 626 20.00 200 320 1 Pcs Find a local dealer
2 608 578 627 20.00 400 520 1 Pcs Find a local dealer

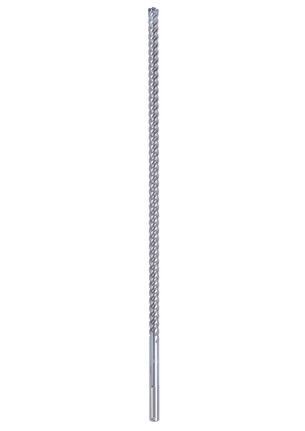

2 608 578 628 20.00 600 720 1 Pcs Find a local dealer

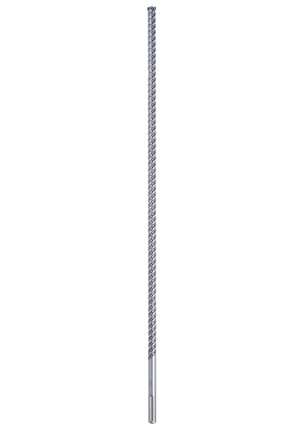

2 608 578 629 20.00 800 920 1 Pcs Find a local dealer
2 608 578 631 22.00 200 320 1 Pcs Find a local dealer
2 608 578 632 22.00 400 520 1 Pcs Find a local dealer

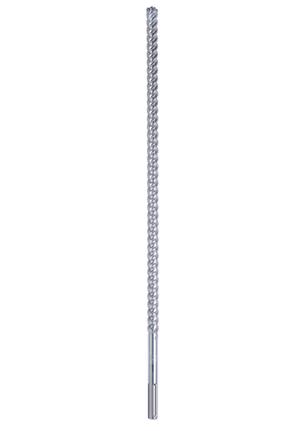

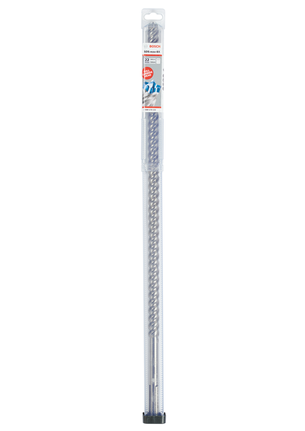

2 608 578 633 22.00 600 720 1 Pcs Find a local dealer

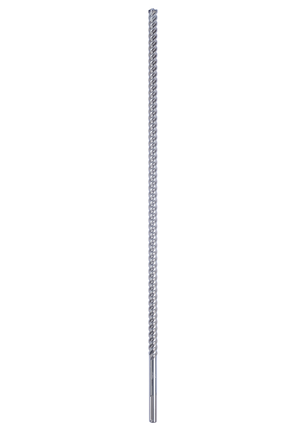

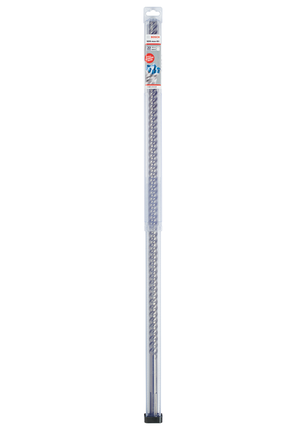

2 608 578 634 22.00 800 920 1 Pcs Find a local dealer
2 608 578 636 24.00 200 320 1 Pcs Find a local dealer
2 608 578 637 24.00 400 520 1 Pcs Find a local dealer
2 608 578 638 25.00 200 320 1 Pcs Find a local dealer
2 608 578 639 25.00 400 520 1 Pcs Find a local dealer

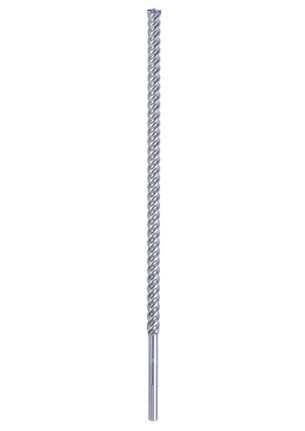

2 608 578 640 25.00 600 720 1 Pcs Find a local dealer

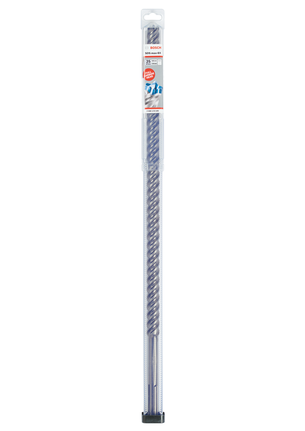

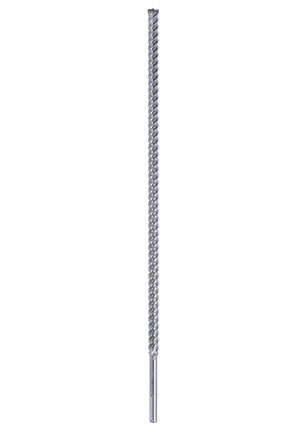

2 608 578 641 25.00 800 920 1 Pcs Find a local dealer
2 608 578 643 26.00 200 320 1 Pcs Find a local dealer
2 608 578 644 26.00 400 520 1 Pcs Find a local dealer
2 608 578 645 28.00 200 320 1 Pcs Find a local dealer
2 608 578 646 28.00 400 520 1 Pcs Find a local dealer

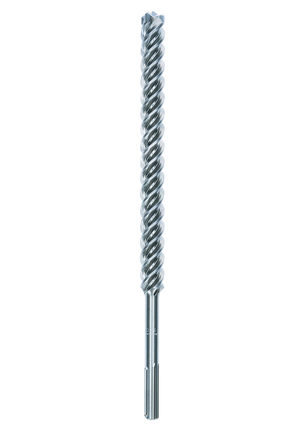

2 608 578 647 28.00 600 720 1 Pcs Find a local dealer

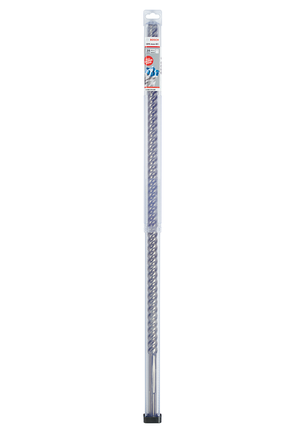

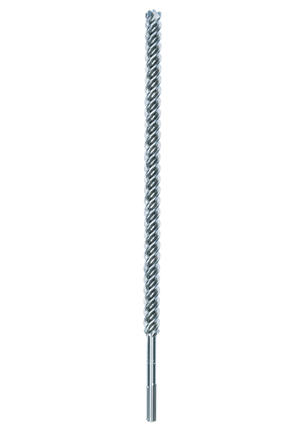

2 608 578 648 28.00 800 920 1 Pcs Find a local dealer
2 608 578 654 32.00 600 720 1 Pcs Find a local dealer
2 608 578 669 12.00 200 340 5 Pcs Find a local dealer
2 608 578 679 16.00 200 340 5 Pcs Find a local dealer
2 608 578 680 16.00 400 540 5 Pcs Find a local dealer
2 608 578 686 18.00 200 340 5 Pcs Find a local dealer
2 608 578 687 18.00 400 540 5 Pcs Find a local dealer
2 608 578 693 20.00 200 320 5 Pcs Find a local dealer
2 608 578 694 20.00 400 520 5 Pcs Find a local dealer
2 608 578 699 22.00 400 520 5 Pcs Find a local dealer
2 608 578 704 24.00 400 520 5 Pcs Find a local dealer
2 608 578 706 25.00 400 520 5 Pcs Find a local dealer
