Metalworking

GCD 12 JL Professional

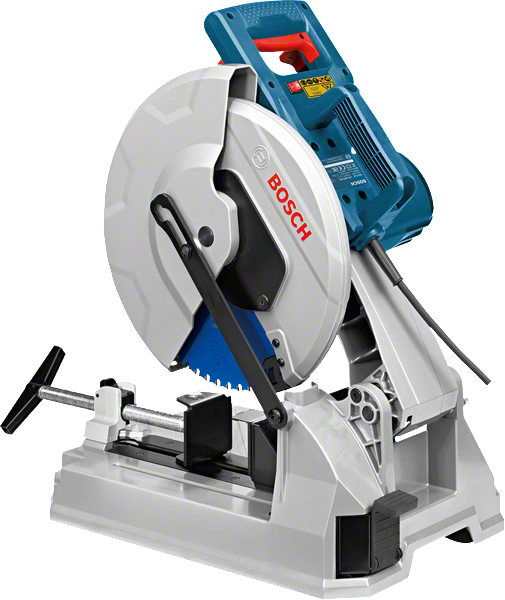

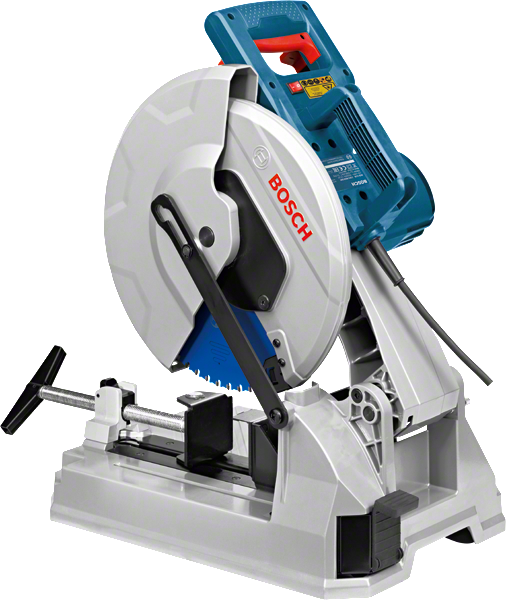

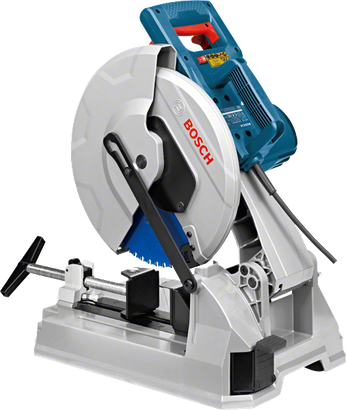

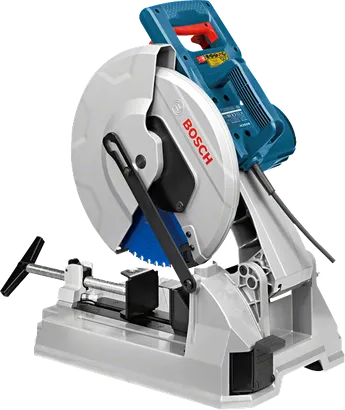

Metal Cut-off Saw

Precise results, less rework and up to 100% spark-free

  • Precise results and little rework thanks to minimum discolouration and low levels of burr formation with “Expert for Steel” saw blades
  • Integrated laser allows precise cutting guidance
  • Up to 100% spark-free for a safe working environment

Functions & key features

 Soft start as the load and torque of the motor are temporarily reduced during start-up.

Your Selection

  • with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060), Accessory
Change variant
200.00 KWD
Recommended retail price excluding VAT
Find a local dealer

with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060), Accessory 0 601 B28 070
200.00 KWD
Recommended retail price excluding VAT

Select a variant

Your Selection

GCD 12 JL
with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060), Accessory

Order number: 0 601 B28 070

200.00 KWD
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60
    Order number: 2 608 643 060

Additional in this variant

  • Voltage 240 V

Your Selection

GCD 12 JL
with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060), Accessory

Order number: 0 601 B28 060

214.00 KWD
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60
    Order number: 2 608 643 060

Additional in this variant

  • Voltage 110 V

Technical data

Additional data

Rated input power 2,000 W
No-load speed 1,500 rpm
Voltage 240 V
Cutting capacity at rectangle 0º 158 x 80 mm
Cutting capacity at square 0º 100 x 100 mm
Cutting capacity at L-profile 0º 110 x 110 mm
Weight 20 kg
Cutting capacity at rectangle 45º mitre 85 x 85 mm
Cutting capacity at square 45º mitre 85 x 85 mm
Cutting capacity at L-profile 45º mitre 85 x 85 mm
Tool dimensions (width x length x height) 327 x 517 x 383 mm
Show more
