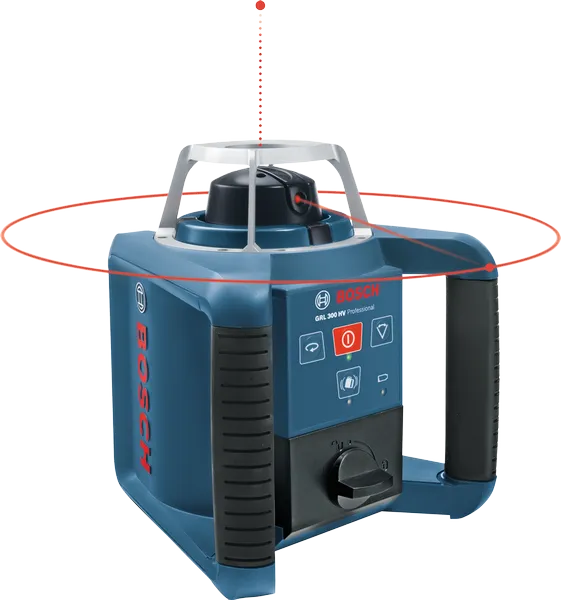

Rotation Laser GRL 300 HV Professional

Easy handling with horizontal and vertical self-levelling

Technical data
Additional data
Working range* 60 m
Working range with receiver* 300 m (Diameter)
Accuracy* ± 0.1 mm/m
Laser diode 635 nm, < 5 mW
Operating temperature, from -10 °C
Operating temperature, up to 50 °C
Operating temperature -10 – 50 °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70 °C
Laser class 3R
Working range with receiver, value 300 m
Working range with receiver, appendage (Diameter)
Working range without receiver, value 60 m
Working range without receiver, appendage (Diameter)
Working range without receiver 60 m (Diameter)
Self-levelling range ± 5° (8%)
Levelling time 15 s
Dust and splash protection IP 54
Rotation speed 150, 300, 600 rpm
Power supply 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D)
Operating time (max.) Rechargeable batteries (NiMH) 30 h
Tripod thread 5/8"
Weight, approx. 1.8 kg
Colour of laser line red

* Highlighted Data

Advantages

Easy handling with horizontal and vertical self-levelling

  • Easy to operate thanks to one button per function, and self-explanatory display
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations

Functions

Laser class 3 Laser class for measuring tools.
Shock Warning Shock warning function

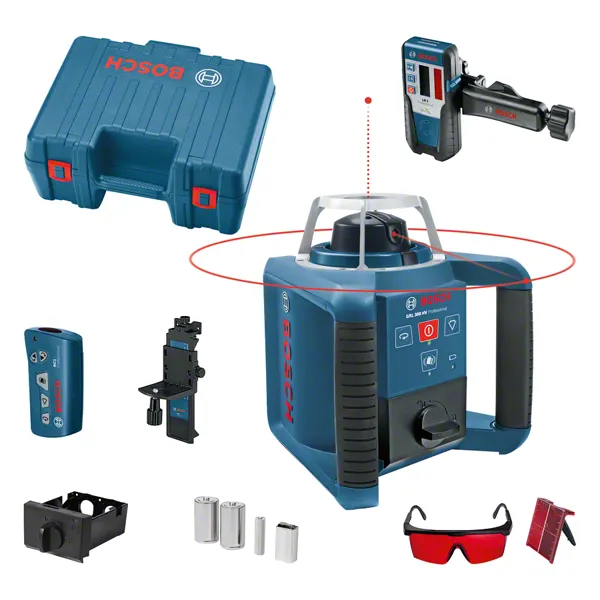

What’s Included in this Package
in carrying case with battery, accessory set
in carrying case with battery, accessory set
Order number: 0 601 061 501
  • Battery compartment (spare part number 1 608 M00 05D)
  • Carrying case
  • Charger set with adapter (spare part number 1 600 A00 1W3)
  • Holder also available separately as an accessory (spare part number 1 608 M00 70F)
  • Laser Receiver LR 1 Professional 0 601 015 400
  • Laser target (red) (spare part number 1 608 M00 05C)
  • Laser viewing glasses (red) (spare part number 1 608 M00 05B)
  • Remote control RC1 Professional 0 601 069 900

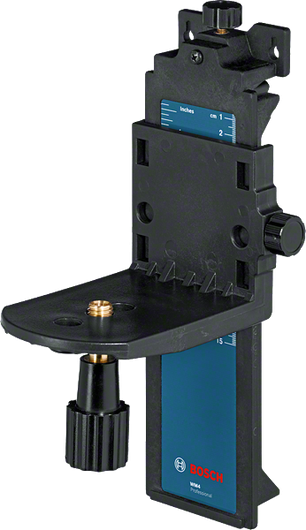

  • Universal mount WM 4 Professional 0 601 092 400
  • 1 x NiMH battery (spare part number 1 608 M00 05G)
  • 1 x 9 V block battery (6LR61)
  • 2 x 1.5 V LR20 battery
  • 1 x 1.5 V LR6 battery (AA)

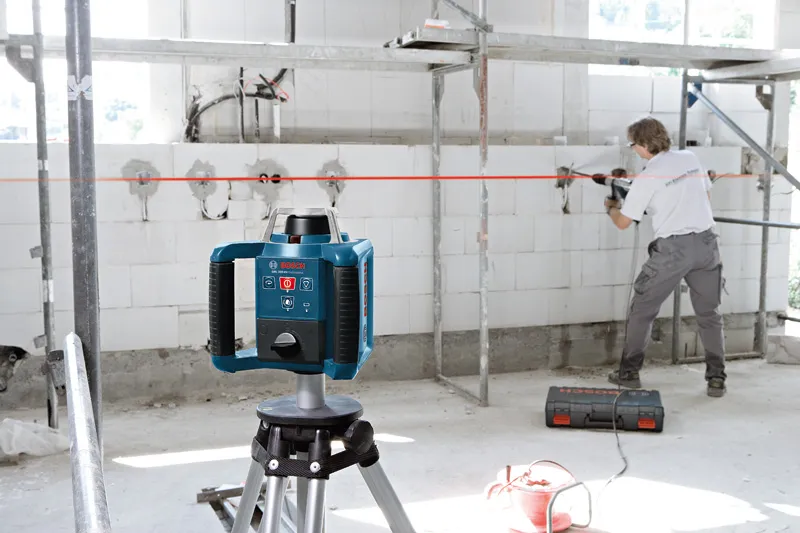

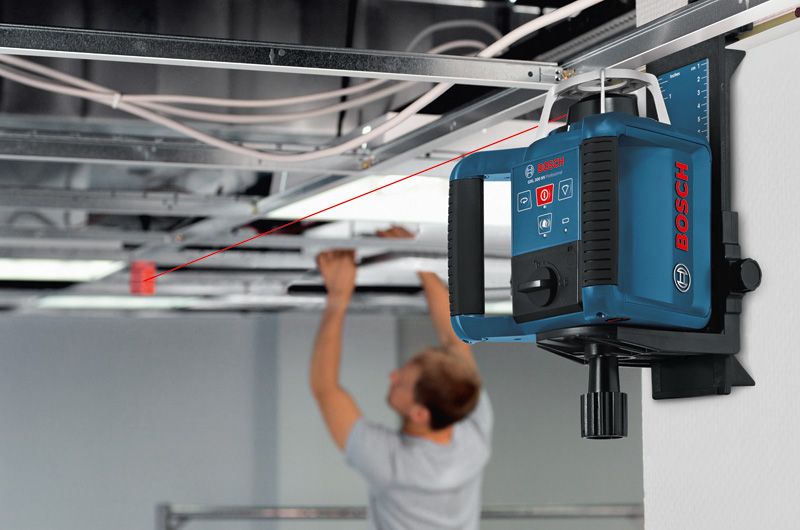

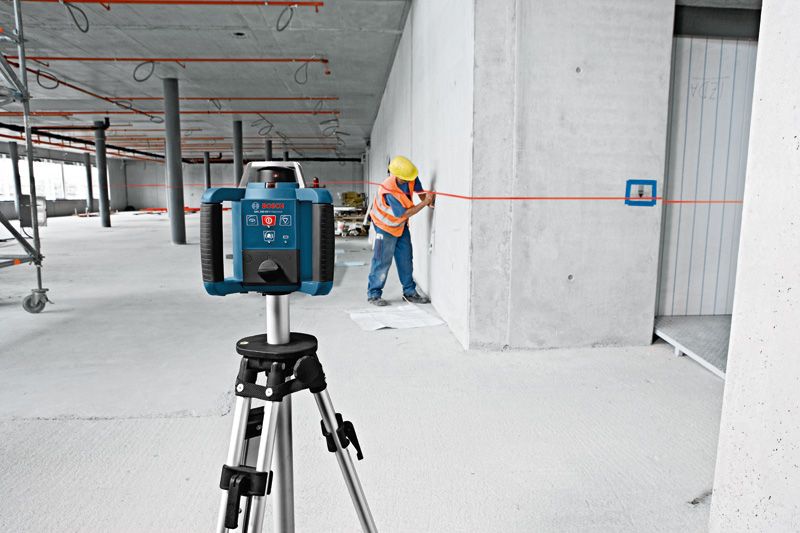

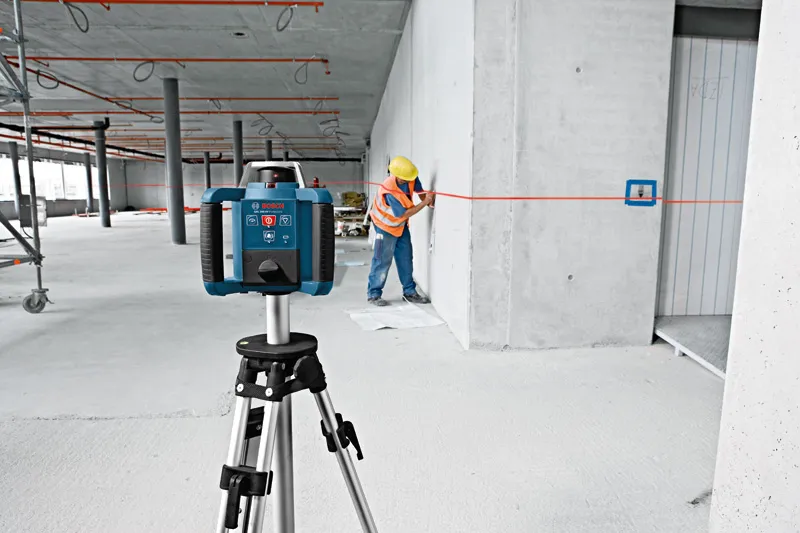

The GRL 300 HV in action!
