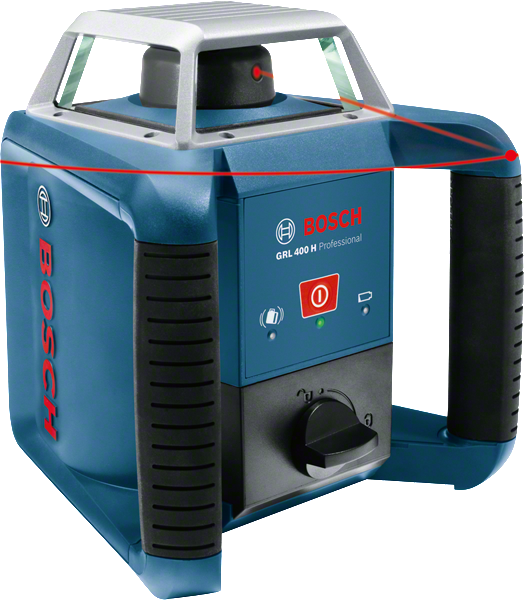

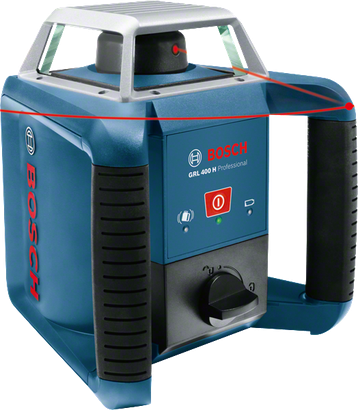

GRL 400 H Professional
Rotation Laser
Jobsite-ready – the intuitive, single-button tool for outdoor levelling applications
- One-button keypad, Electronic Self Levelling functionality, and convenient battery tray
- Consistently accurate results with an accuracy of ± 2.4 mm at 30m and an ADS shock warning system
- Withstands harsh conditions of any outdoor jobsite thanks to water and dust protection IP56
Functions & key features
Your Selection
- in carrying case with 2 x battery (LR20), receiver
Select a variant
Your Selection
Order number: 0 601 061 800
Recommended retail price excluding VAT

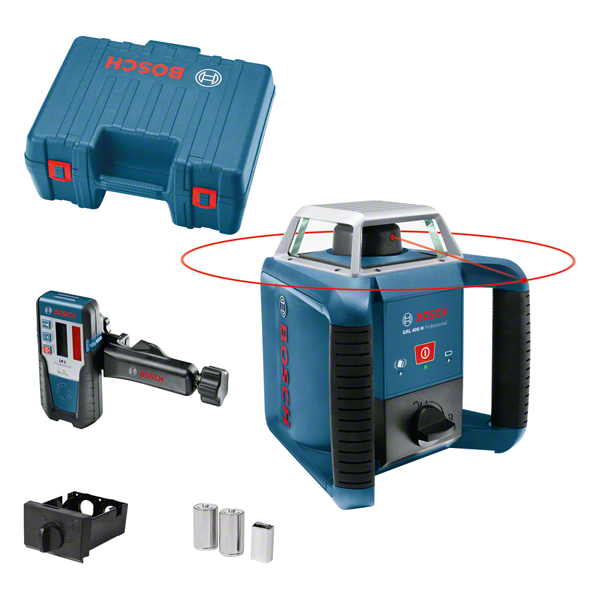

This product includes
- Carrying case (spare part number 1 608 M00 05F)
- Laser Receiver LR 1 Professional 0 601 015 400
- Non-rechargeable battery compartment 1 609 203 M02
- 2 x 1.5 V LR20 battery (D)
- 1 x 9 V block battery (6LR61)
Show less
Show more
Your Selection
Order number: 0 615 994 0JY
Recommended retail price excluding VAT

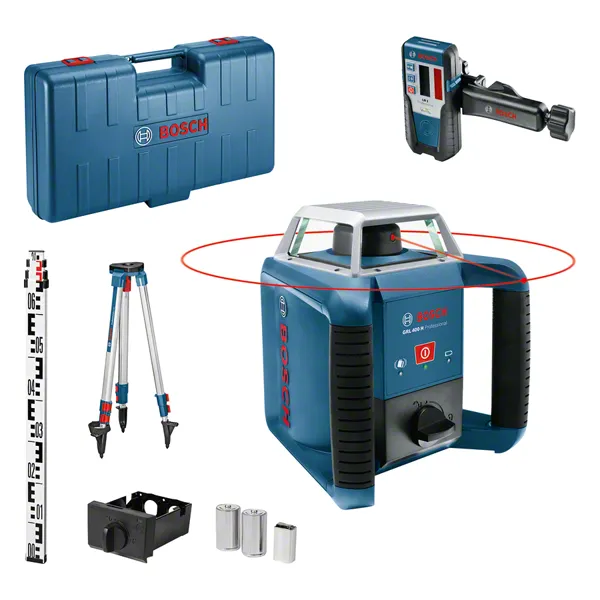

This product includes
- Rotation Laser GRL 400 H Professional
- Laser Receiver LR 1 Professional 0 601 015 400
- Building Tripod BT 152 Professional
- Measuring rod GR 2400 Professional
- Carrying case
- Non-rechargeable battery compartment 1 609 203 M02
- 2 x 1.5 V LR20 battery (D)
- 1 x 9 V block battery (6LR61)
Show less
Show more
Technical data
Additional data |
|
|---|---|
| Working range with receiver, value | 400 m |
| Dust and splash protection | IP 56 |
| Working range with receiver | up to 400 m (Diameter) |
| Accuracy | ± 2.4 mm at 30 m* (*plus use-dependent deviation) |
| Laser diode | 635 nm, < 1 mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range without receiver | up to 20 m (Diameter) |
| Self-levelling range | ± 8% (± 5°) |
| Levelling time | 15 s |
| Rotation speed | 600 rpm |
| Power supply | 2 x 1.5 V LR20 (D) |
| Tripod thread | 5/8"-11 |
| Weight, approx. | 2 kg |
| Colour of laser line | red |
| Compatible laser receivers | LR 1 |
| Slope function | no |
GRL 400 H Professional: Further information
Product Highlights
Easy to use and ready to go – the intuitive, single-button GRL 400 H rotary laser is always prepared for use at a moment´s notice when performing outdoor-levelling applications. Its one-button keypad, Electronic Self Levelling functionality, and convenient battery tray enable straightforward work with an easy setup and simple battery replacement – without even moving the tool. With an accuracy of ± 2.4 mm at 30m and an ADS shock warning system that indicates if the tool's position has changed, the GRL 400 H prevents levelling errors and delivers consistently accurate results.
Equipment & Application

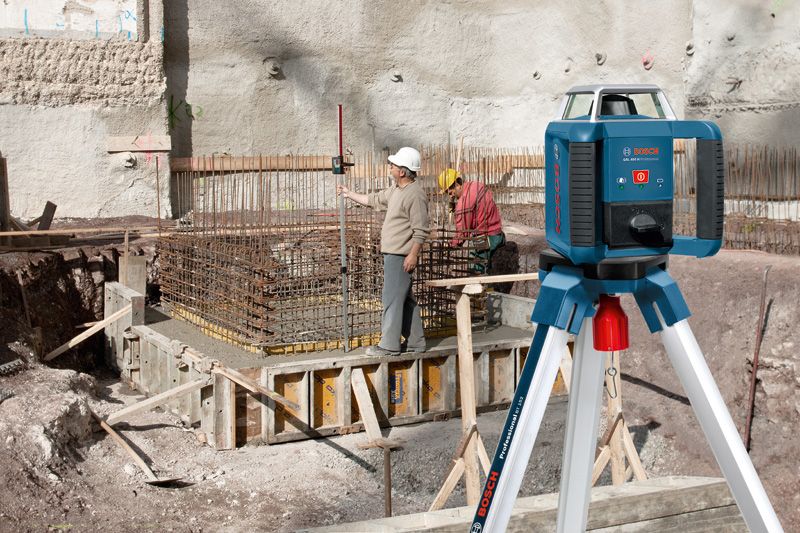

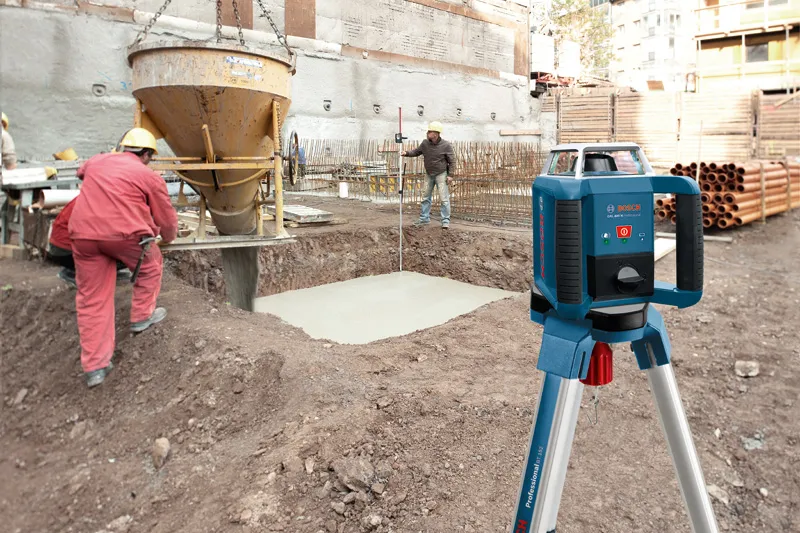

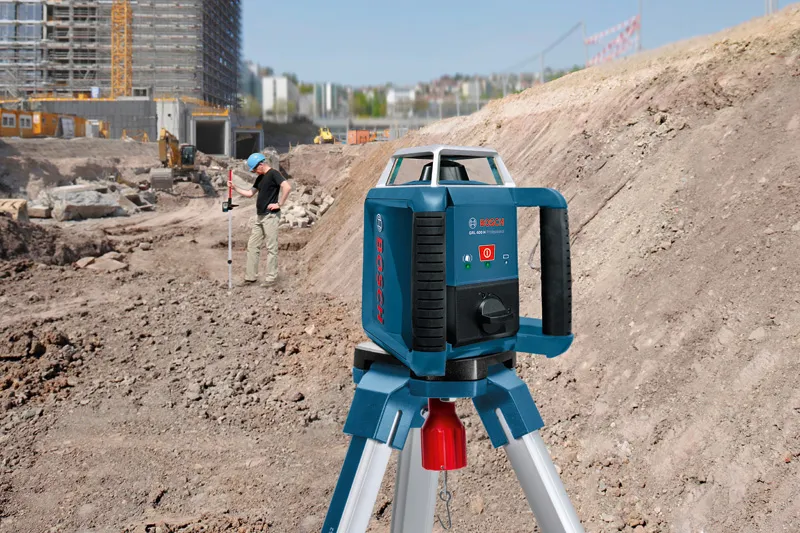

From determining cut and fill values for excavation and footings, to levelling concrete forms and landscaping, this tool does an excellent job. This rotary laser is prepared to withstand the harsh conditions of any outdoor jobsite thanks to its water and dust protection IP56.
