Line lasers

GTL 3 Professional

Tile Laser

Fast tile laying due to additional line at 45°

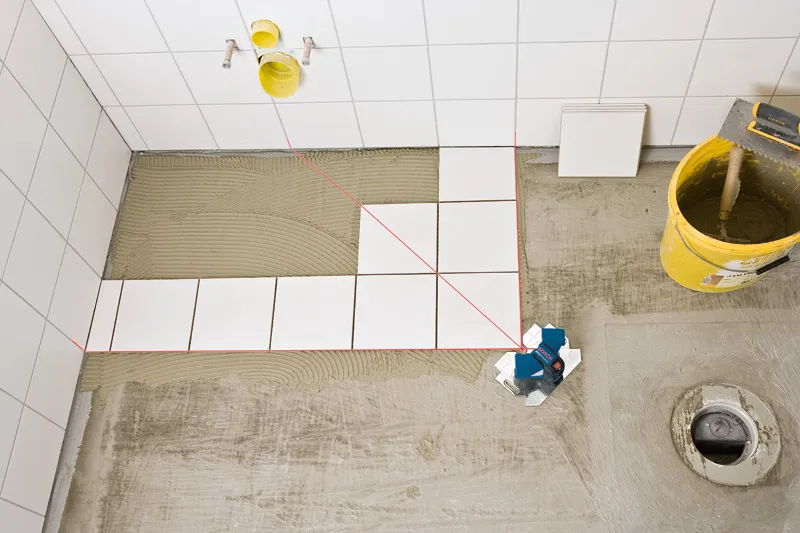

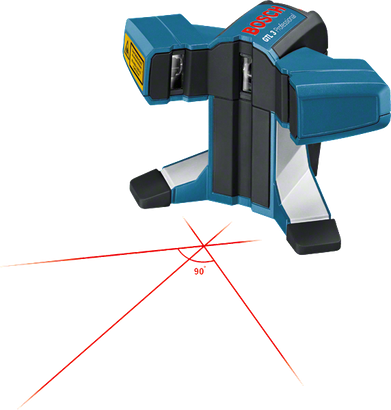

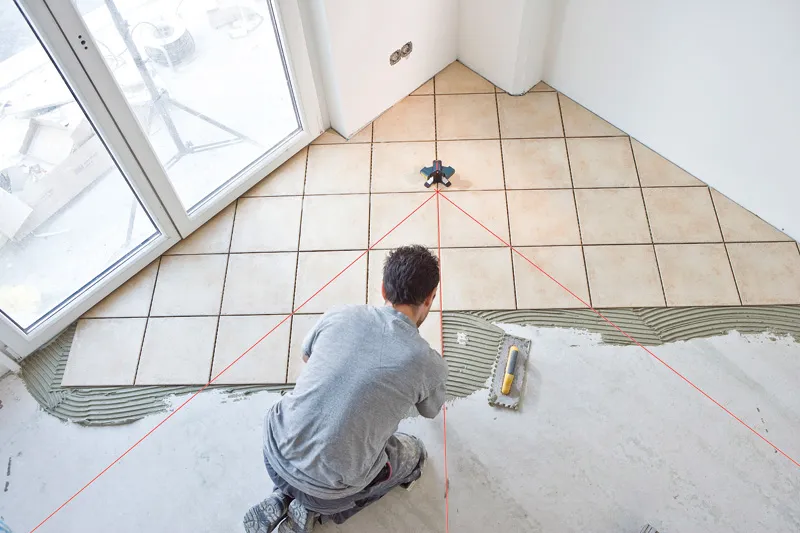

  • In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
  • High accuracy of 0.2 mm/m
  • Compact and lightweight design for optimum ease of use

Functions & key features

Line configuration
Working range up to 20 m
Laser class 2
Power supply 4 x AA battery
IP54 dust and splash water protection

Your Selection

  • with 4 x battery (AA), accessory set
Show variant
353.00 USD
Recommended retail price excluding VAT
Find a local dealer

with 4 x battery (AA), accessory set 0 601 015 200
353.00 USD
Recommended retail price excluding VAT

GTL 3 Professional

Your Selection

GTL 3
with 4 x battery (AA), accessory set

Order number: 0 601 015 200

353.00 USD
Recommended retail price excluding VAT
Find a local dealer

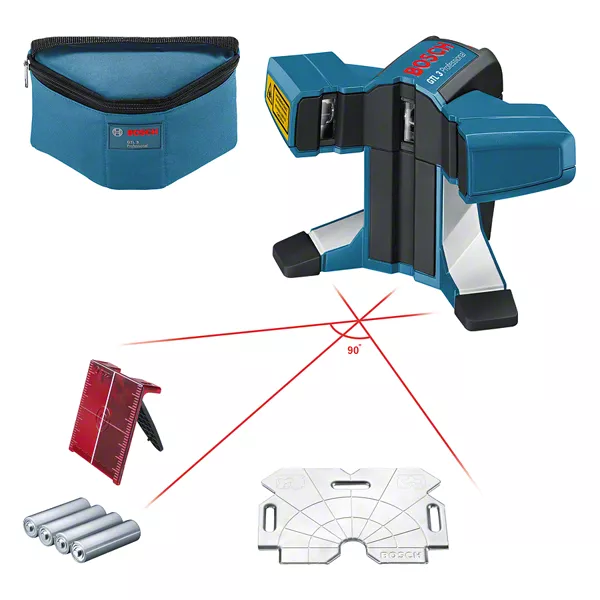

Included in this variant

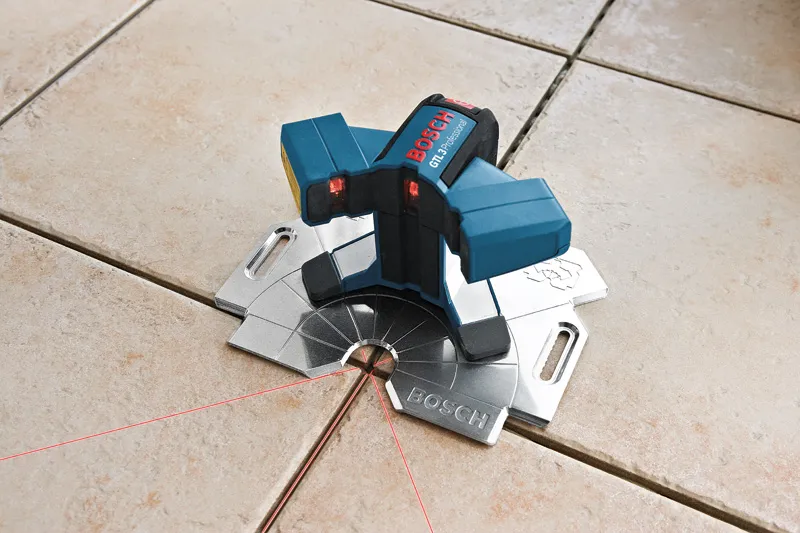

  • Alignment disc
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate

Technical data

Additional data

Dust and splash protectionnull IP 54
Working rangenull 20 m
Projectionnull 3 lines
Working range, valuenull 20 m
Laser diodenull 630 – 650 nm
Operating temperaturenull -10 – 50 °C
Storage temperaturenull -20 – 70 °C
Laser classnull 2
Working range with target platenull 20 m
Angular accuracy (between 0 – 90° angle)null ±0.2 mm/m* (*plus use-dependent deviation)
Power supplynull 4 x 1.5 V LR6 (AA)
Operating time (max.)null 18 h in 2-line mode, 12 h in 3-line mode

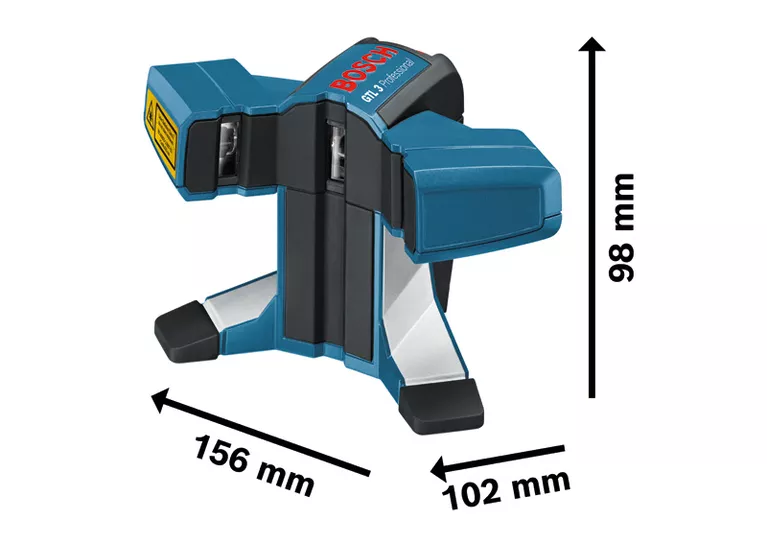

Weight, approx.null 0.44 kg
