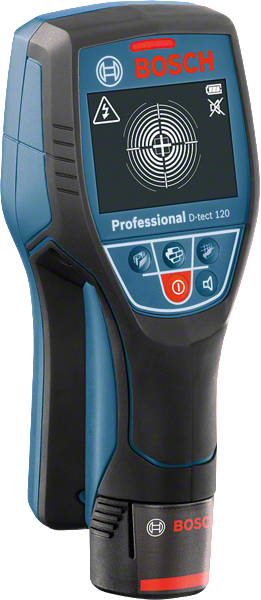

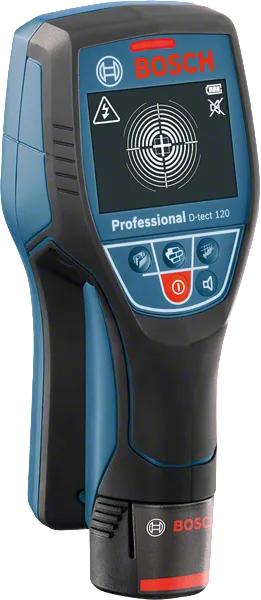

Detector D-tect 120 wallscanner Professional

Intuitive radar scanner for almost all materials

191.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Bosch Radar Technology yes
Max. detection depth 120

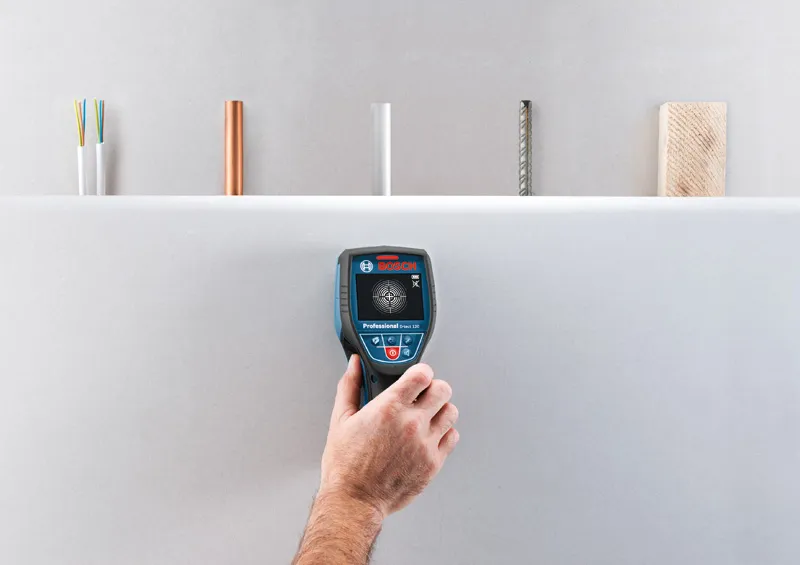

Detectable objects magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, water-filled plastic pipes, wooden substructures
Detection depth, magnetic metal, max. 120
Detection depth, non-magnetic metal, max. 120
Detection depth, live cables, max. 60
Detection depth, wooden substructures, max. 38
Accuracy ± 10 mm* (*plus use-dependent deviation)
Views Spot view
Wall types Concrete, Drywall, Universal
Material identification Live cable
Power supply 12 V Li-ion or 4 x 1.5 V LR6 (AA)
Automatic deactivation, approx. 5 minutes
Weight, approx. 0.5
Additional function Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator

Advantages

Intuitive radar scanner for almost all materials

  • Spot measurement provides accurate detection on narrow surfaces
  • Centre finder offers visual guidance, to clearly identify the precise location of the object's centre

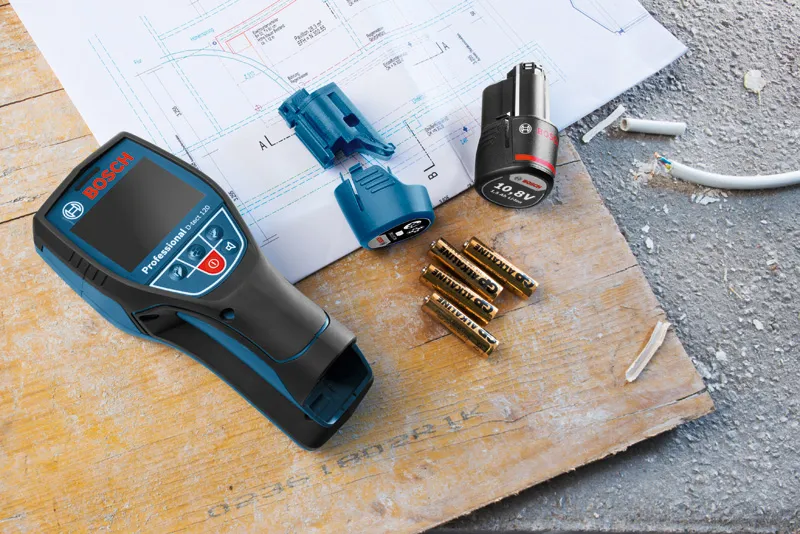

  • Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

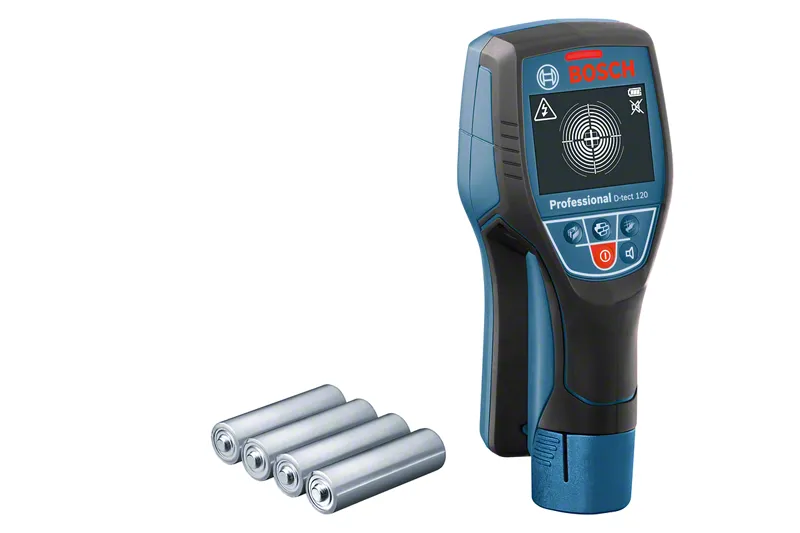

What’s Included in this Package
with 4 x battery (AA), adapter
with 4 x battery (AA), adapter
Order number: 0 601 081 300
  • AA1 alkaline battery adapter 1 608 M00 C1B
  • Quick-start card
  • 4 x 1.5 V LR6 battery (AA)
191.00 EUR Recommended retail price excluding VAT.

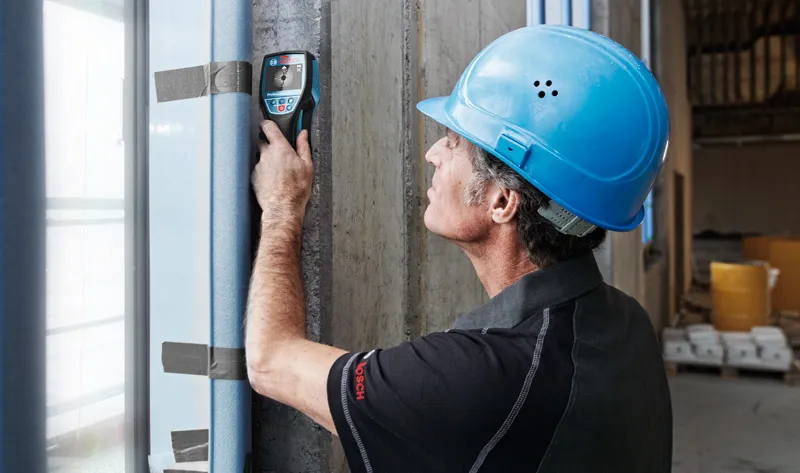

The D-tect 120 wallscanner in action!
