Batteries & chargers
GAL 18V6-80

GAL 18V6-80 Professional

Charger

GAL 18V6-80
GAL 18V6-80

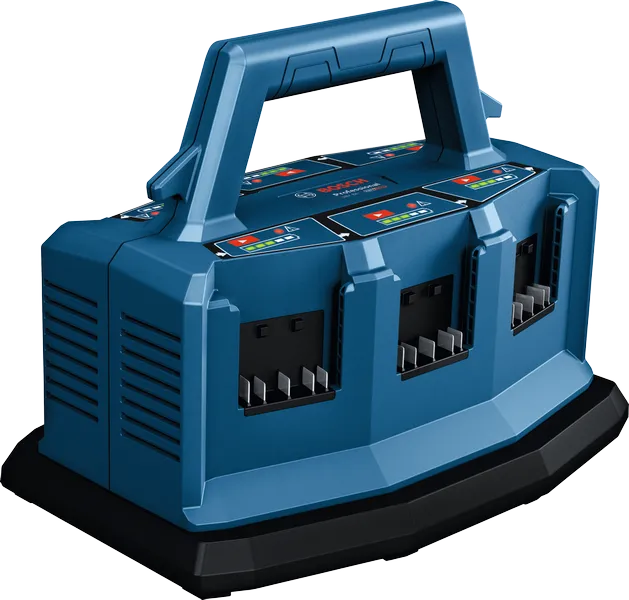

Continuous charging for non-stop work – multi-bay charger with 6 battery interfaces

  • Fast charging speed with 8A current – ProCORE18V 8.0Ah charges to 80% in 42 min
  • Efficient charge – 2 charging cycles ensure continuous work
  • Priority Start Button – easy prioritisation of a selected battery

Functions & key features

Charging current 8.0 A
Battery charge level indicator shows the level of remaining battery charge

Your Selection

  • in cardboard box
Show variant
146.00 EUR Recommended retail price excluding VAT
Check availability on location
Find a local dealer
in cardboard box 1 600 A01 U9M
146.00 EUR Recommended retail price excluding VAT
Find a local dealer

GAL 18V6-80 Professional

Your Selection

in cardboard box

Order number: 1 600 A01 U9M

146.00 EUR

Recommended retail price excluding VAT

Find a local dealer

Included in this variant

  • Cardboard box
  • L-BOXX adapter for GAL 18V6-80
Your selection

Technical data

Additional data
Battery charging voltage 14=4 – 18 V
Charge current 8 A
Battery voltage 18.0 V

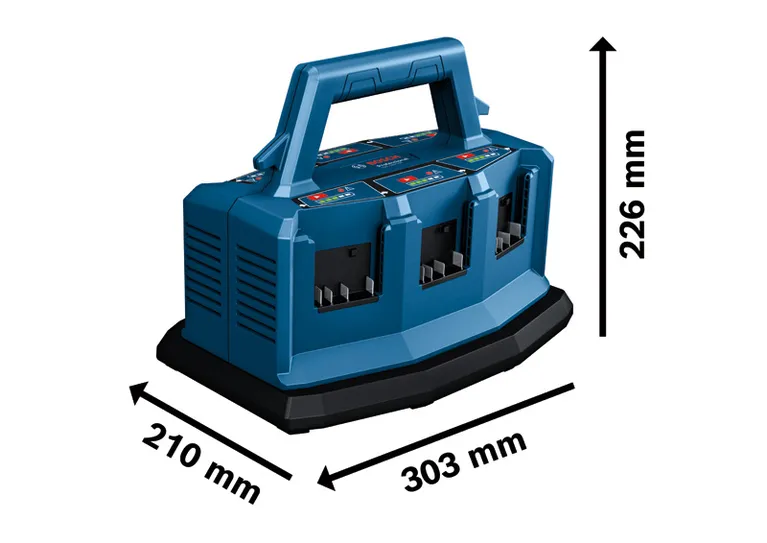

Weight 1.8 kg

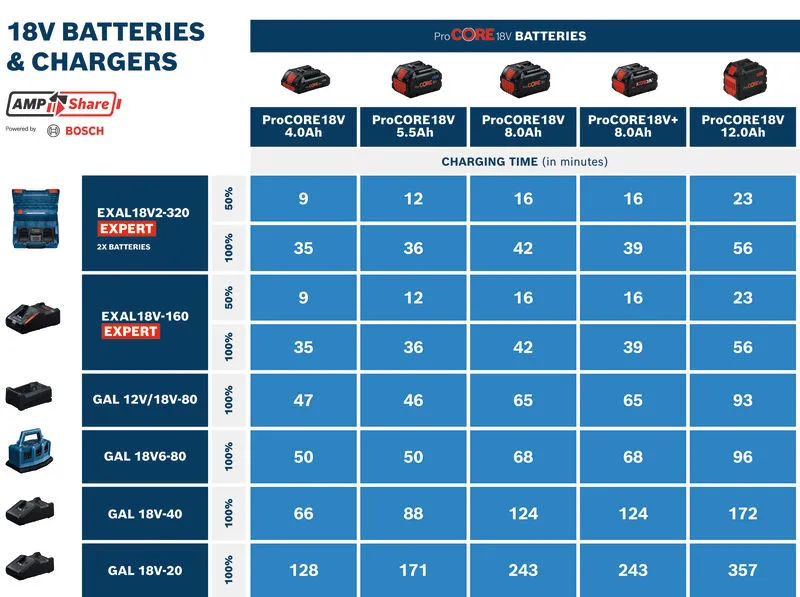

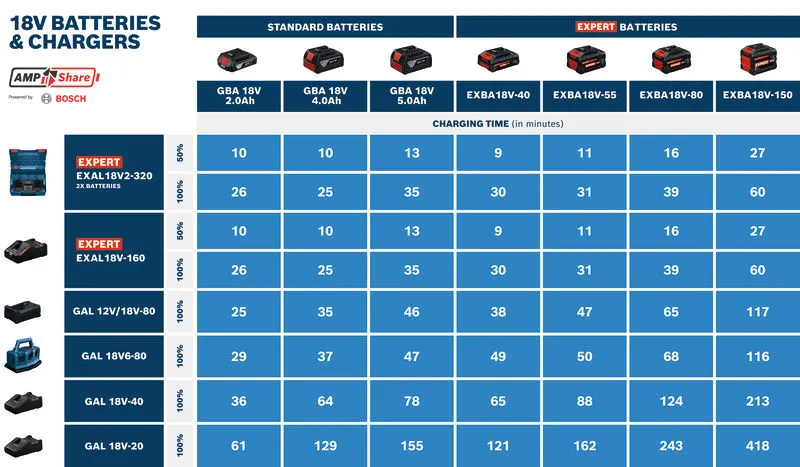

Charg. time at bat. cap. 2.0 Ah (80%/100%) approx. 16/24 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx. 23/37 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx. 28/47 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx. 32/57 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx. 32/50 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx. 42/68 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx. 65/96 min

GAL 18V6-80 Professional: Further information

Product Highlights

The GAL 18V6-80 offers continuous charging on the job or overnight in two cycles. The first cycle charges up to six batteries sequentially up to 80%. Cycle two then completes the process, charging all batteries to 100%. Thanks to an 8A charging current, ProCORE18V 8.0Ah batteries load up to 80% in just 42 minutes. Charge-level indicators with 5 LEDs on each charging interface display precise charging progress. With a Priority Start Button for each interface, the cycle can be interrupted to start charging the selected battery immediately.

Equipment & Application

The GAL 18V6-80 is compatible with 18V batteries. Fixing the multi-bay charger to an L-BOXX avoids potentially harmful movements when transporting. The charger's handle features pegs that allow its cable to be wound neatly in place for storage and safe transportation.

Downloads

User Manual

Instruction manual | GAL 18V6-80 (PDF 1.9 MB) Instruction manual | GAL 18V6-80 (Online version)
