Angle measurers and inclinometers
![GAM 220]( "GAM 220")
![GAM 220]( "GAM 220")
![GAM 220]( "GAM 220")

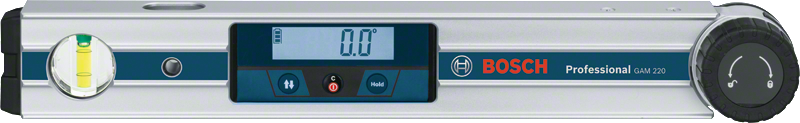

GAM 220 Professional
Angle Measurer
Precise and easy angle measurement
- Fast and precise calculation of angles
- Angles can be transferred precisely onto workpieces by means of a mechanical locking screw
Functions & key features
with 4 x battery (AA)
0 601 076 500
GAM 220 Professional
Your Selection
with 4 x battery (AA)
Order number: 0 601 076 500
Find a local dealerIncluded in this variant
-
4 x 1.5 V LR6 battery (AA)
Technical data
Additional data
Measurement range
0 – 220°
Arm length
40 cm
Measurement accuracy, angles
± 0.1°
Measurement accuracy, vials
± 0.05°
Accuracy of angle calculation
± 0.1°
Power supply
4 x 1.5 V LR6 (AA)
Battery power, approx.
80 h
Automatic deactivation, approx.
30 min
Weight, approx.
1.3 kg
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
