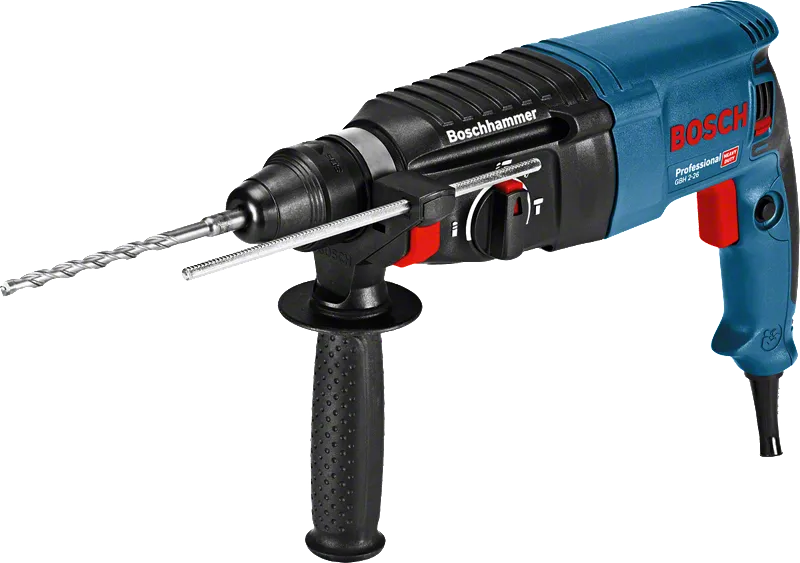

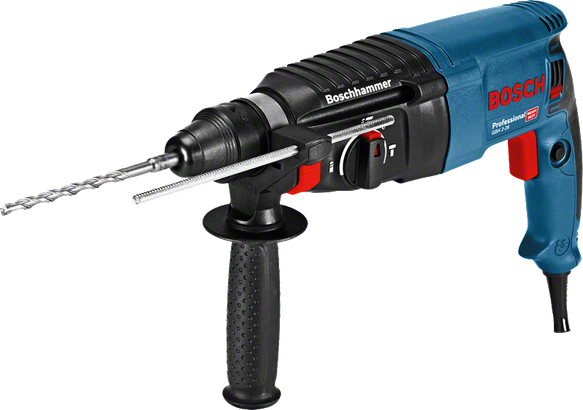

Rotary Hammer with SDS plus GBH 2-26 Professional

Fast all-rounder for daily use

197.00 EUR Recommended retail price excluding VAT.

Technical data
Performance data
Impact energy 2=7   J
Impact rate at rated speed 0 – 4.000   bpm
Rated speed 0 – 900   rpm
Additional data
Rated input power 830
Weight 2.7
Tool dimensions (width) 0
Tool dimensions (length) 0
Tool dimensions (height) 0
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits 4 – 26   mm
Opt. appl. range concrete, hammer drill bits 8 – 16   mm
Drilling diameter in concrete with core cutters 16 – 68   mm
Max. drilling diameter masonry, core cutters 68
Max. drilling diameter in metal 13
Max. drilling diameter in wood 30
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 1.5
Uncertainty K 17.5
Total vibration values (Chiselling)
Vibration emission value ah 1.5
Uncertainty K 14

Advantages

Fast all-rounder for daily use

  • Improved performance for a fast drilling rate and high chiselling removal rate
  • Reliable and robust with long lifetime due to high-quality components
  • Wide range of applications for drilling, hammer drilling and chiselling

Functions

Combi hammer with chisel function No rotary motion; impact effect only
Easy and precise control of the RPM thanks to variable speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Comfortable handling of the tool thanks to softgrip
Optimal power transmission for small hammers
Cable length 4.0 m
Convenient adjustment of the chisel position enabling you to adapt it to each work situation

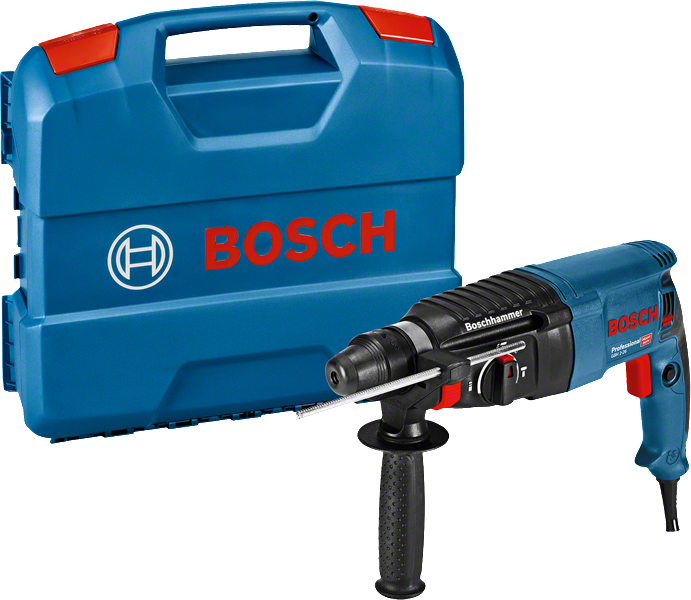

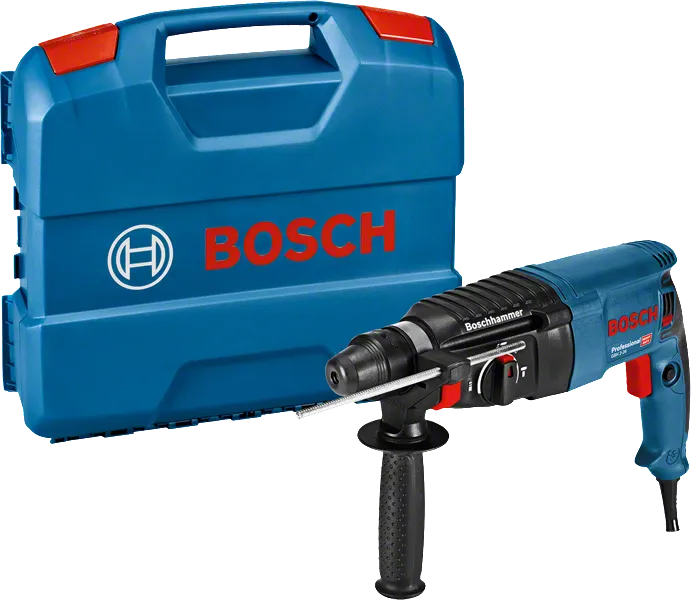

What’s Included in this Package
in carrying case with auxiliary handle, Accessory
in carrying case with auxiliary handle, Accessory
Order number: 0 611 2A3 060
  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Voltage 110 V
