Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,150 |
| Impact energy* | 8=8 J |
| Impact rate at rated speed | 1.500 – 3.050 bpm |
| Rated speed | 170 – 340 rpm |
| Weight | 6.8 |

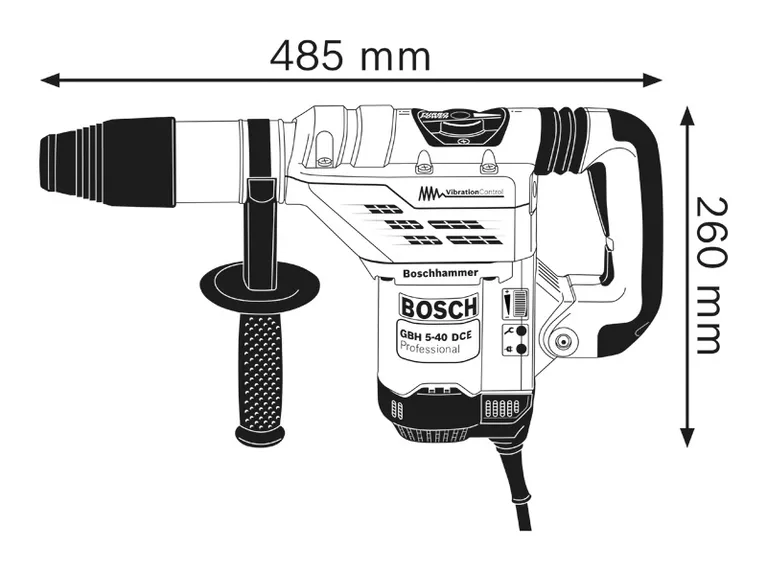

| Tool dimensions (length) | 485 |
| Tool dimensions (height) | 260 |
| Tool holder | SDS max |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 12 – 40 mm |
| Opt. appl. range concrete, hammer drill bits | 18 – 32 mm |
| Drilling dia. concrete, breakthrough drill bits | 45 – 55 mm |
| Drilling diameter in concrete with core cutters | 40 – 90 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 10.5 |
| Uncertainty K | 1.5 |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 7.5 |
| Uncertainty K | 1.5 |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 104 dB(A). Uncertainty K= 3 dB.
Advantages
The fast all-rounder with Vibration Control
- Fastest drilling rate in its class due to 1150 W motor and powerful hammer mechanism
- SDS max comfort for easy and fast tool changes with one hand
- Vibration Control (10 m/s² for drilling, 8 m/s² for chiselling) ensures convenient working, even in time-intensive applications
Functions

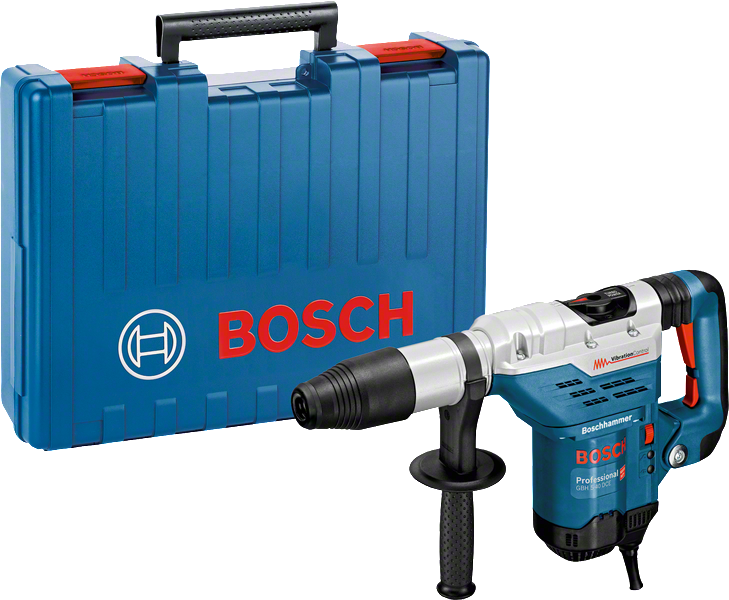

What’s Included in this Package
in carrying case with accessory set
Order number:
0 611 264 000
- Auxiliary handle 2 602 025 117
- Grease tube (spare part number 1 615 430 010)
- Machine cloth
- Carrying case (spare part number 1 615 438 460)
