Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,500 |
| Impact energy* | 12=5 J |
| Impact rate at rated speed | 1.380 – 2.720 bpm |
| Rated speed | 0 – 305 rpm |
| Weight | 8.2 |
| Tool dimensions (width) | 116 |
| Tool dimensions (length) | 540 |
| Tool dimensions (height) | 310 |
| Tool holder | SDS max |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 12 – 45 mm |
| Opt. appl. range concrete, hammer drill bits | 20 – 40 mm |
| Drilling dia. concrete, breakthrough drill bits | 80 mm |
| Drilling diameter in concrete with core cutters | 125 mm |
| Max. drilling diameter masonry, core cutters | 45 |
| Max. drilling diameter in metal | 125 |
| Max. drilling diameter in wood | 80 |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 18.5 |
| Uncertainty K | 1.5 |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 14 |
| Uncertainty K | 1.5 |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 96 dB(A); Sound power level 107 dB(A). Uncertainty K= 3 dB.
Advantages
Powerful 1,500 watt and highest sturdiness!
- Top performance when drilling and chiselling thanks to 1500 watt motor and 12.5 joules of single impact energy
- Exceptional durability thanks to robust components
- Automatic switch lock for the best convenience in continuous chiselling applications
Functions

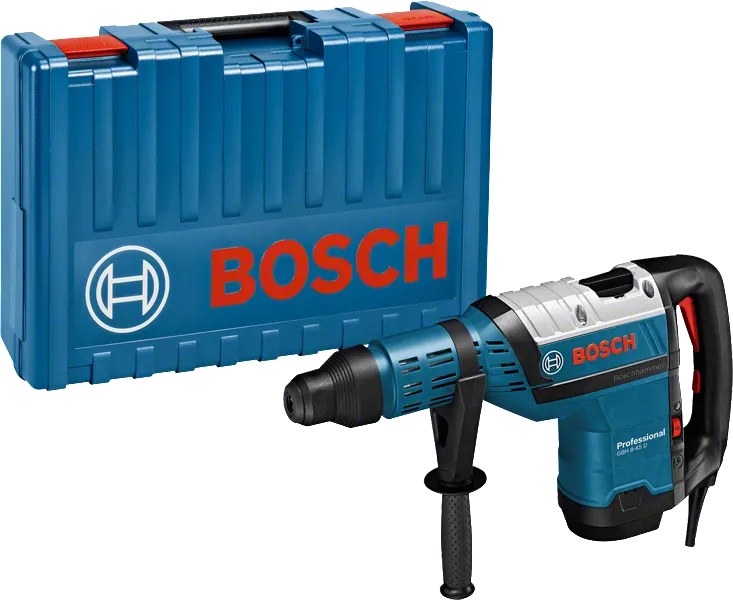

What’s Included in this Package
in carrying case with accessory set, Accessory
Order number:
0 611 265 160
- Auxiliary handle (spare part number 1 612 025 004)
- Grease tube (spare part number 1 615 430 010)
- Machine cloth
- Voltage 110 V
- Carrying case (spare part number 1 615 438 51A)
760.00 EUR
Recommended retail price excluding VAT.
