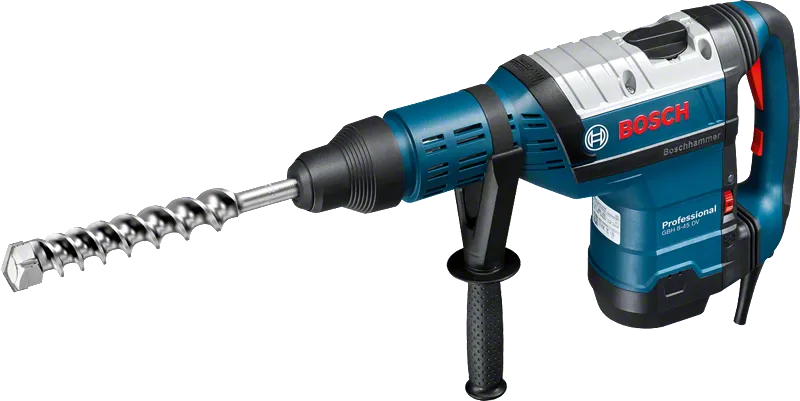

Rotary Hammer with SDS max GBH 8-45 DV Professional

Powerful 1500 watt at low vibrations

from  705.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Rated input power* 1,500
Impact energy* 12=5 J
Impact rate at rated speed 1.380 – 2.760 bpm
Rated speed 0 – 305 rpm
Weight 8.9

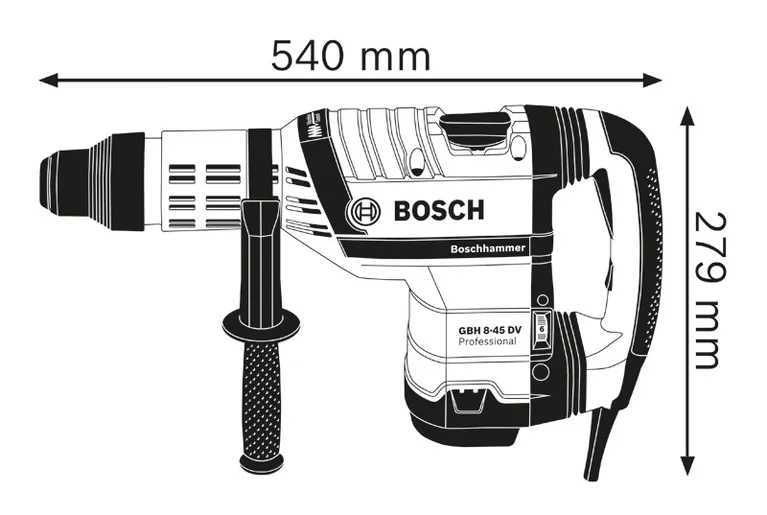

Tool dimensions (width) 116
Tool dimensions (length) 540
Tool dimensions (height) 310
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits* 12 – 45 mm
Opt. appl. range concrete, hammer drill bits 20 – 40 mm
Drilling dia. concrete, breakthrough drill bits 80 mm
Drilling diameter in concrete with core cutters 125 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 8
Uncertainty K 1.5
Total vibration values (Chiselling)
Vibration emission value ah 7
Uncertainty K 1.5

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 96 dB(A); Sound power level 107 dB(A). Uncertainty K= 3 dB.

Advantages

Powerful 1500 watt at low vibrations

  • User buys a GBH 8-45 DV Professional and gets various accessories for free!
  • Peak performance in Drilling and Chiselling
  • Three-way Vibration Control System, Turbo Power Function

Functions

Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Best work results with constant speed thanks to electronic regulation of speed - even under load
Better chiselling performance by utilizing the power used for drilling to increase impact energy when in hammer only mode
Optimal power transmission for large hammers
Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Construction The professional power tools for construction from Bosch.
What’s Included in this Package

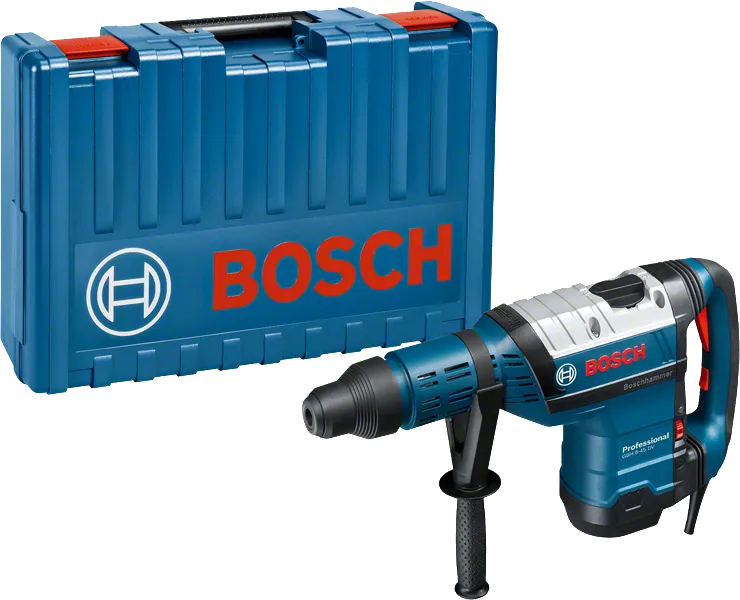

in carrying case with accessory set, (Voltage 110 V)
in carrying case with accessory set, (Voltage 110 V)
Order number: 0 611 265 060
  • Auxiliary handle (spare part number 1 612 025 004)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 110 V
  • Carrying case (spare part number 1 615 438 51A)
705.00 EUR Recommended retail price excluding VAT.
Product variations (2)
The GBH 8-45 DV in action!
