Technical data
| Additional data | |
|---|---|
| Rated input power* | 750 |
| Weight | 2.4 |
| No-load speed, 1st gear | 0 – 1.000 rpm |
| No-load speed, 2nd gear | 3.000 rpm |
| Power output | 353 |
| Rated speed | 500 / 1.750 rpm |
| Rated torque | 6=8 / 2=5 Nm |
| Drill spindle connecting thread | 1/2" – 20 UNF |
| Max. torque | 39=5 / 12=5 Nm |
| Drilling range | |
|---|---|
| Drilling diameter in aluminium | 20 / 12 mm |

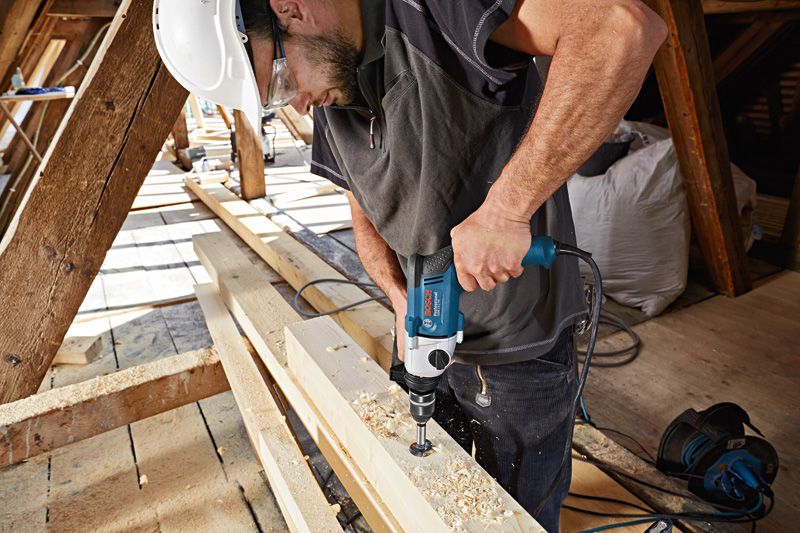

| Drilling diameter in wood* | 32 / 20 mm |

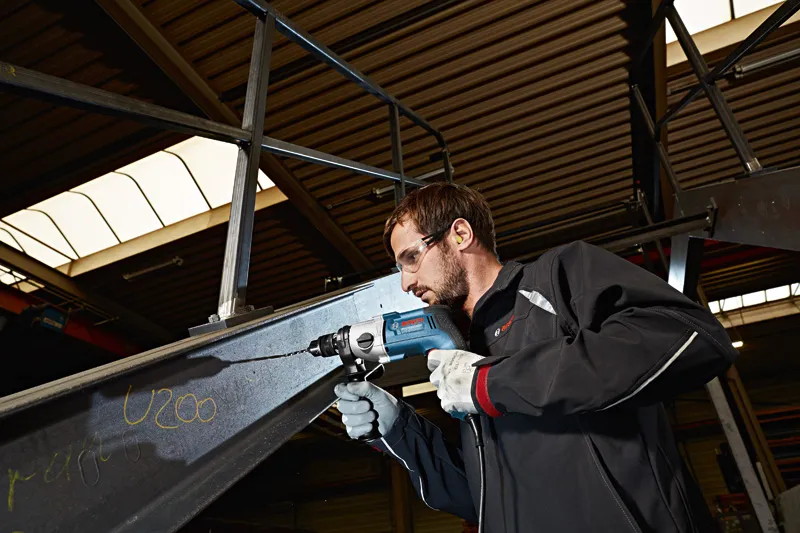

| Drilling diameter in steel* | 13 / 8 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 7.5 |
| Uncertainty K | 1.6 |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 |
| Uncertainty K | 1.5 |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages

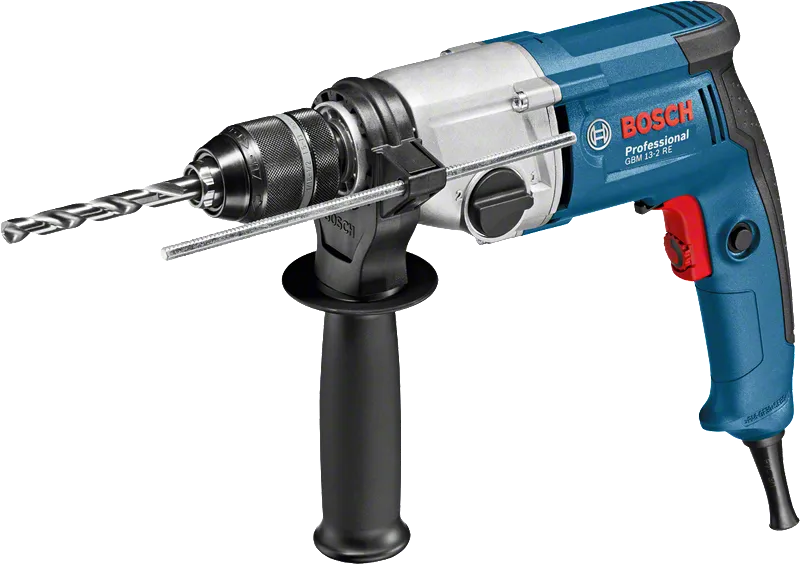

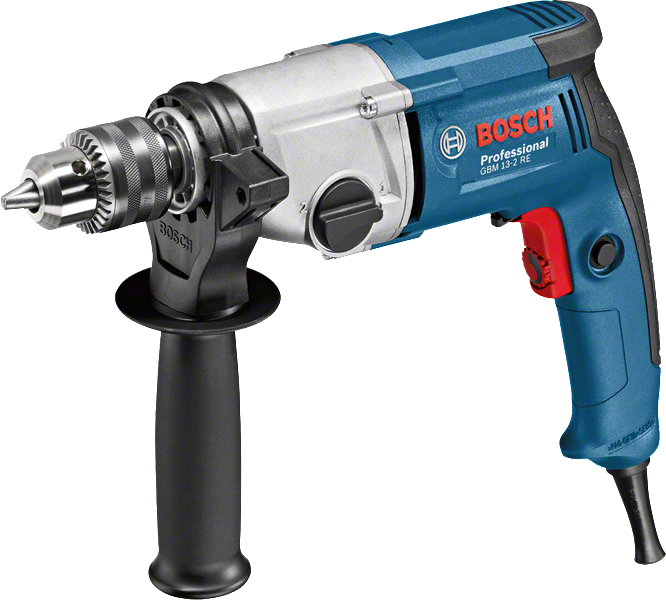

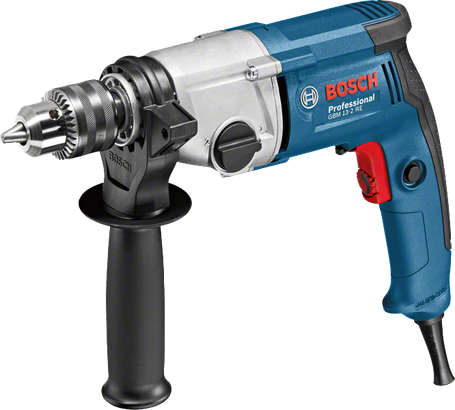

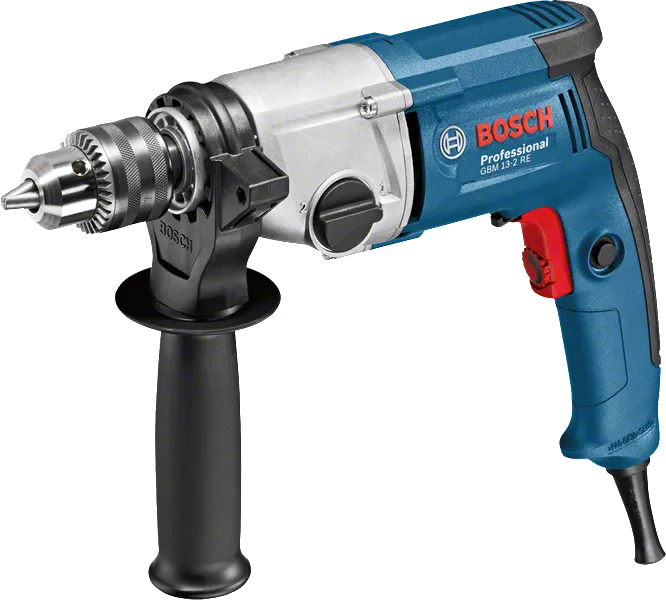

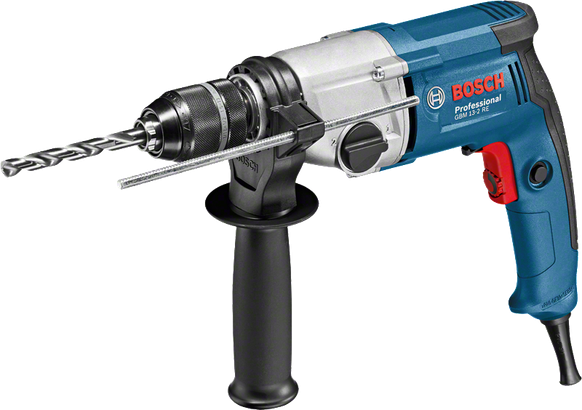

The powerful and precise tool with 2 gears
- A fast work rate for drilling holes of up to 13 mm in steel thanks to powerful 750 watt motor and high torque
- Precise work results due to compact, ergonomic design and metal keyless chuck
- Versatile applications thanks to 2-speed gearbox and speed preselection with setting wheel
Functions
What’s Included in this Package
in cardboard box with chuck
Order number:
0 601 1B2 001

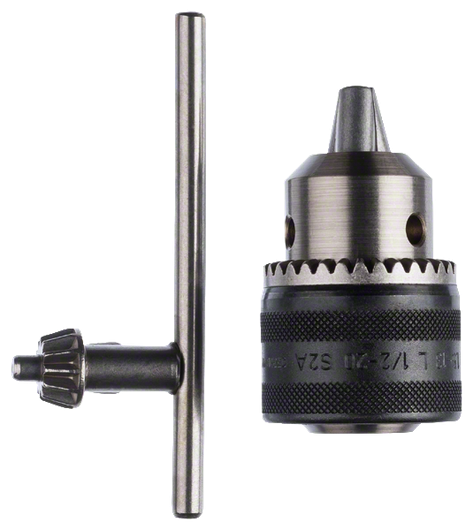

- Keyed chuck 1.5 - 13 mm 1 608 571 062
- Auxiliary handle 2 605 025 190
- Depth stop 210 mm 1 613 001 010
- Cardboard box
227.00 EUR
Recommended retail price excluding VAT.
