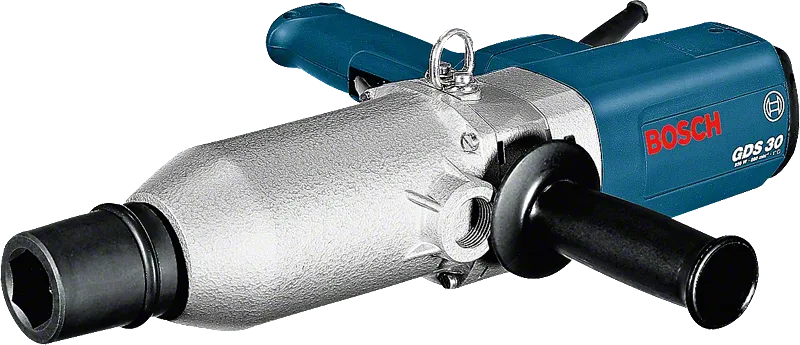

Impact Wrench

GDS 30 Professional

The powerful tool for large screwdriving applications
GDS 30 Professional
Technical data
Additional data
Rated input power* 920
Torque, max. (hard screwdriving applications)* 1,000
Torque, max. (soft screwdriving applications) 500
Bit holder 1" external square
Rated speed 860 rpm
Weight 7.3

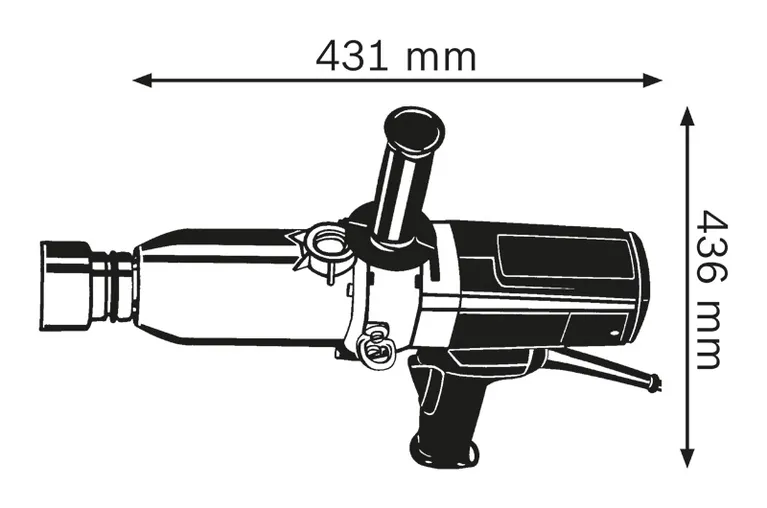

Tool dimensions (length) 431
Tool dimensions (height) 436
Screwdriving
Screw diameter* max. M 30
Total vibration values (Tightening screws and nuts of maximum permitted size)
Vibration emission value ah 4
Uncertainty K 0.5

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 100 dB(A); Sound power level 113 dB(A). Uncertainty K= 3 dB.

Advantages

The powerful tool for large screwdriving applications

  • For heavy screw joints on trucks, construction machinery, in commercial vehicle construction, in the petrochemical and other heavy industries
  • Auxiliary handle with backing pad that can be fitted in two positions for better handling
  • Hanging hook for attaching to a balancer

Functions

Forward / reverse rotation for inserting and removing screws
What’s Included in this Package

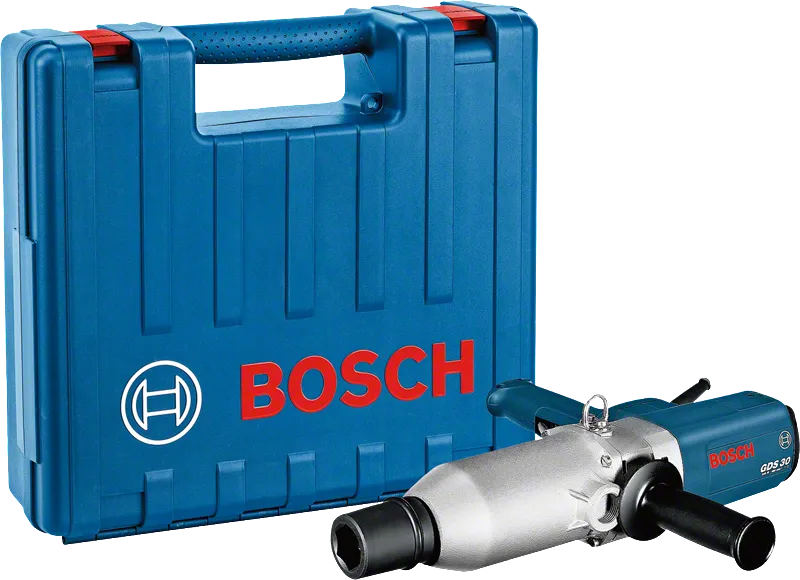

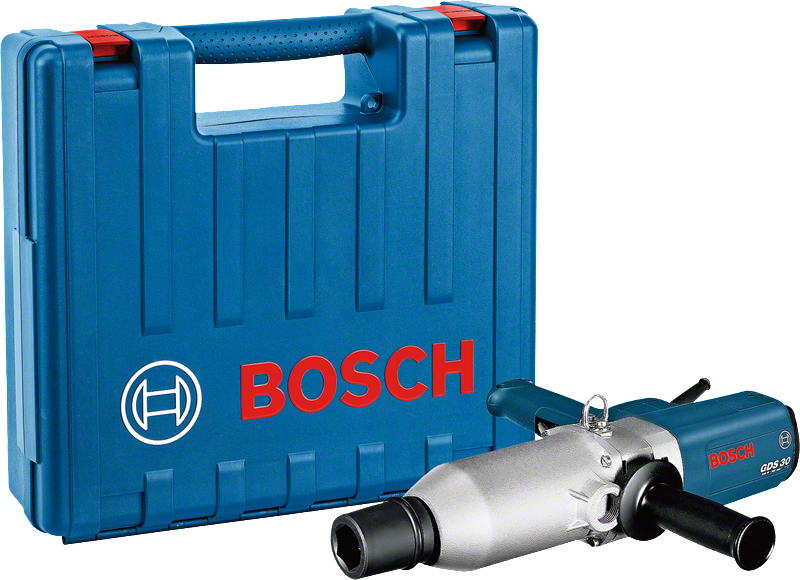

in carrying case with accessory set
in carrying case with accessory set
Order number: 0 601 435 103
  • Carrying case (spare part number 1 605 438 1BZ)
  • Auxiliary handle 2 602 025 075
  • Hanging loop (spare part number 3 601 310 013)
Product variations (2)
