Digital Inclinometer GIM 60 L Professional

Laser-accurate incline transfer over longer distances

235.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data

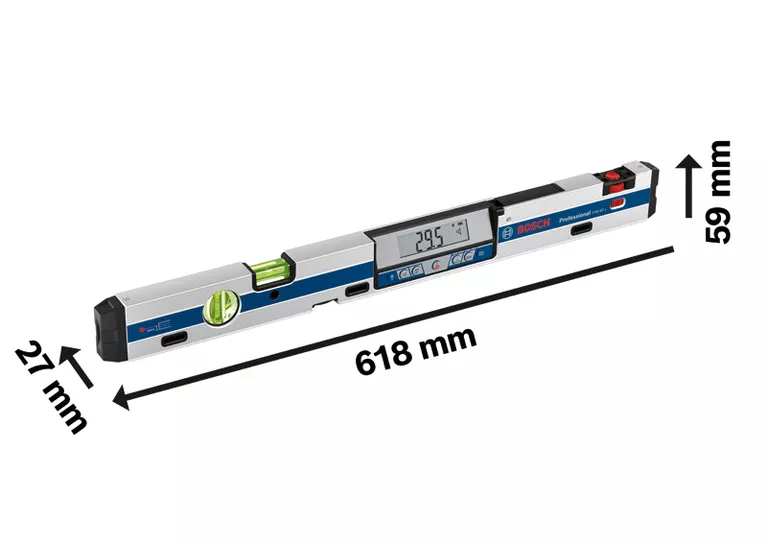

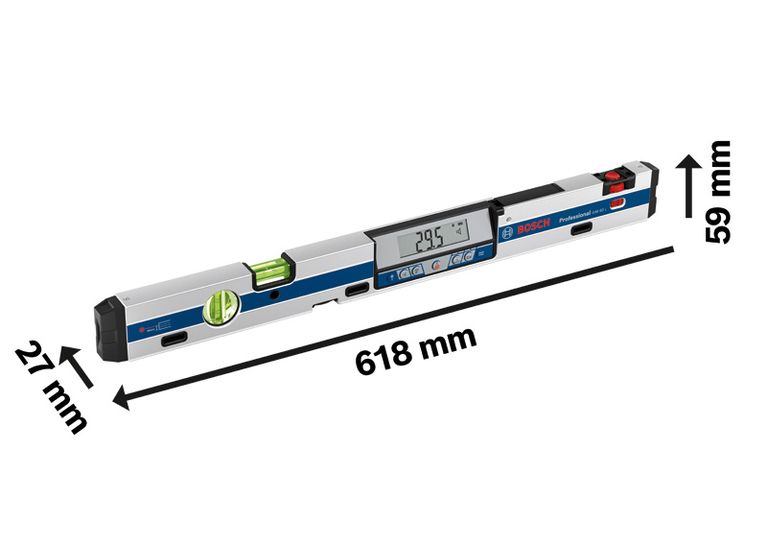

Length 60
Measurement range 0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90° ± 0.05°
Electronics measuring accuracy at 1– 89° ± 0.1°
Working range (laser) 30
Weight approx. 0.91
Laser type 635 nm, < 1 mW
Laser range 30
Laser class 2
Levelling accuracy of laser ± 0,5   mm/m
Units of measurement °, %, mm/m
Tripod thread 1/4"

Advantages

Laser-accurate incline transfer over longer distances

  • Integrated point laser for incline measurement up to a distance of 30 m
  • Strong magnets and two straps for securely fastening the instrument to workpieces
  • Incline mechanism for fine adjustment on uneven surfaces

Functions

Levelling mechanism Levelling mechanism
Magnetic Magnets for mounting on magnetic surfaces
Securing straps Securing straps for safe mounting on workpieces
Hold and Copy Hold/Copy function
IP protection 54 Dust and splash protection IP54
Laser class 2 Laser class for measuring tools.
Measuring range of angles 0°-360° Angle measuring range 0°-360°
Measuring accuracy of laser ± 0.5 mm/m Measuring accuracy ± 0.5 mm/m
Measuring range of laser max. 30 m Measuring range maximum 30 m
What’s Included in this Package
with 4 x battery (AAA), Protective Bag
with 4 x battery (AAA), Protective Bag
Order number: 0 601 076 900
  • Protective Bag
  • 4 x 1.5 V LR03 battery (AAA)
235.00 EUR Recommended retail price excluding VAT.

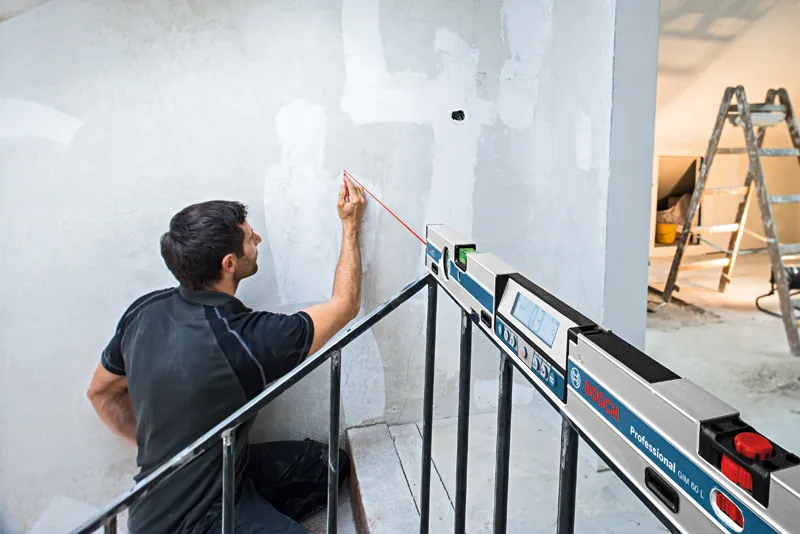

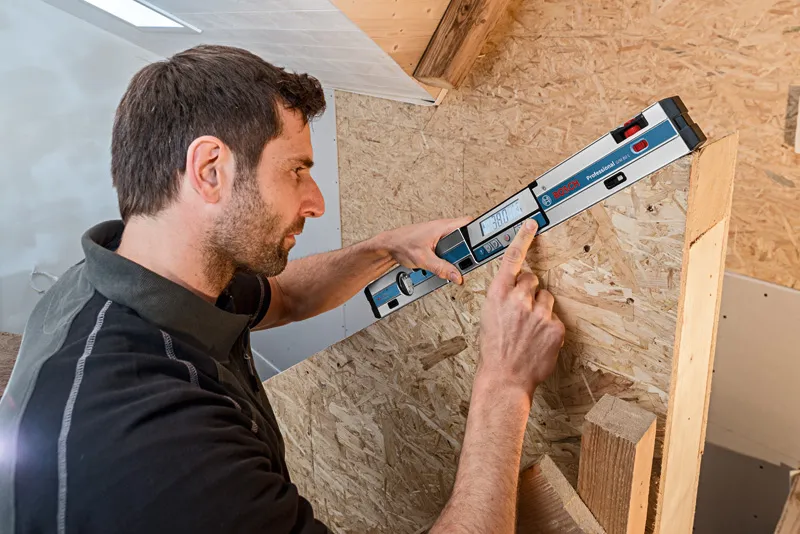

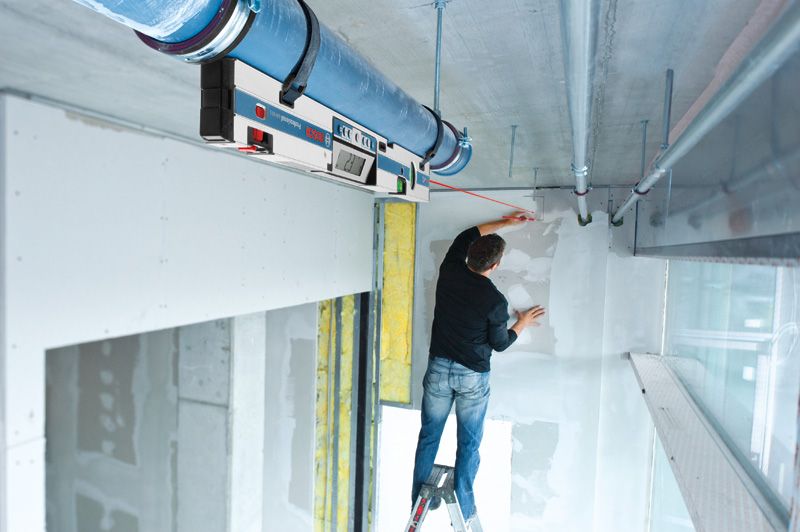

The GIM 60 L in action!
