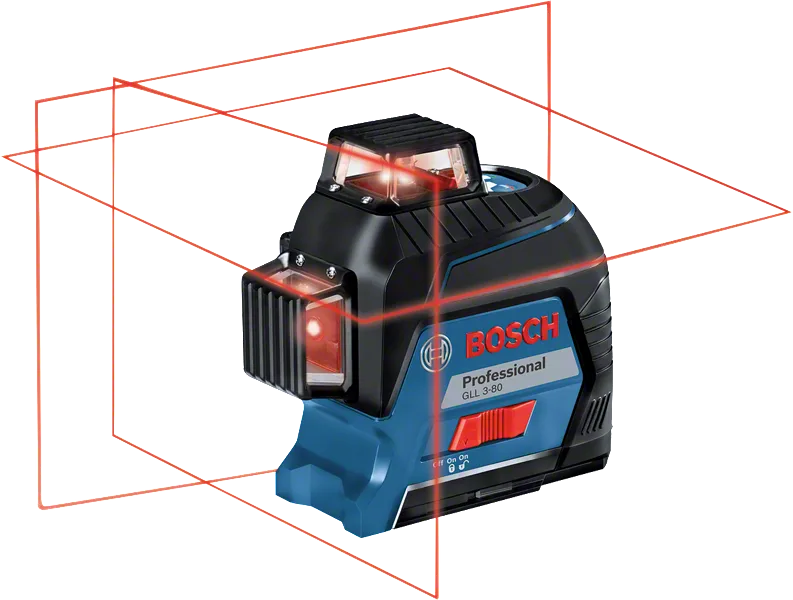

Line Laser GLL 3-80 Professional

3 x 360° for visibility on a new level

from  316.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Working range* up to 30   m
Working range with receiver* up to 120 m
Accuracy* +/- 0.3 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation)
Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature, from -10
Operating temperature, up to 40
Operating temperature -10 – 40   °C
Storage temperature, from -20
Storage temperature, up to 70
Storage temperature -20 – 70   °C
Laser class 2
Working range with receiver, sign up to
Working range with receiver, value 120
Working range without receiver, sign up to
Working range without receiver, value 30
Working range without receiver up to 30 m
Self-levelling range ± 4°
Levelling time 4
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 4 h in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.82
Colour of laser line red
Projection 3 x 360° line
Compatible laser receivers LR 6 + 7

* Highlighted Data

Advantages

3 x 360° for visibility on a new level

  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
  • Intuitive user interface offers easy operation

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

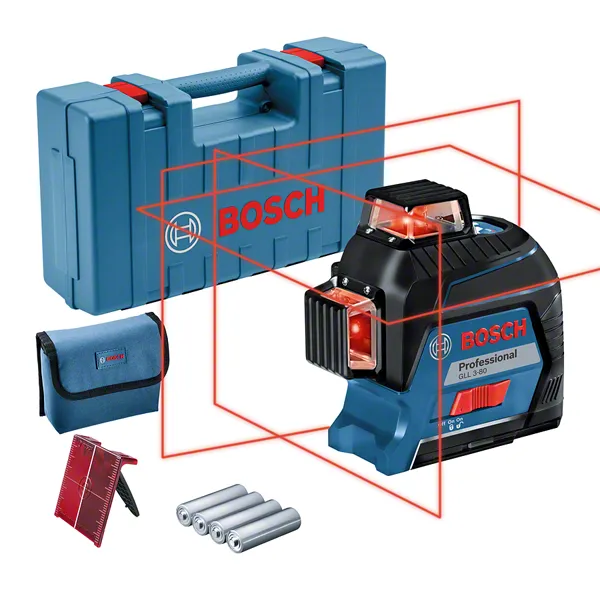

What’s Included in this Package
in carrying case with 4 x battery (AA), accessory set
in carrying case with 4 x battery (AA), accessory set
Order number: 0 601 063 S00
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate
  • Pouch
  • Carrying case
316.00 EUR Recommended retail price excluding VAT.
Product variations (3)

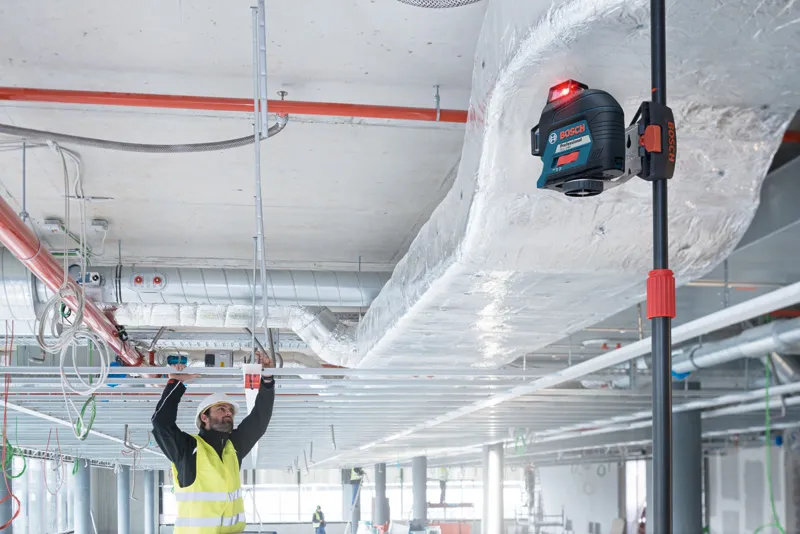

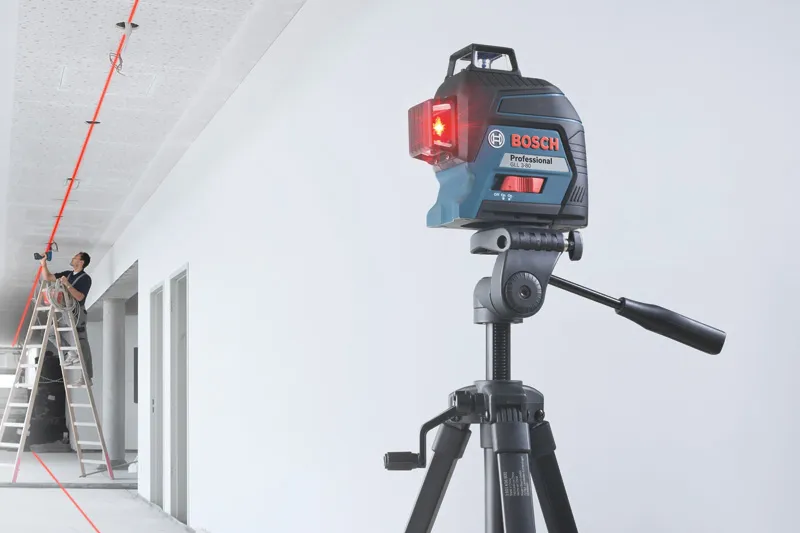

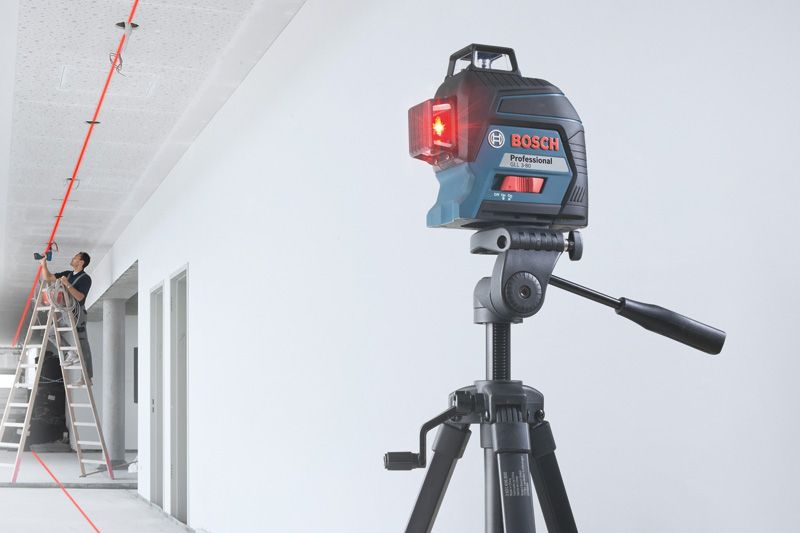

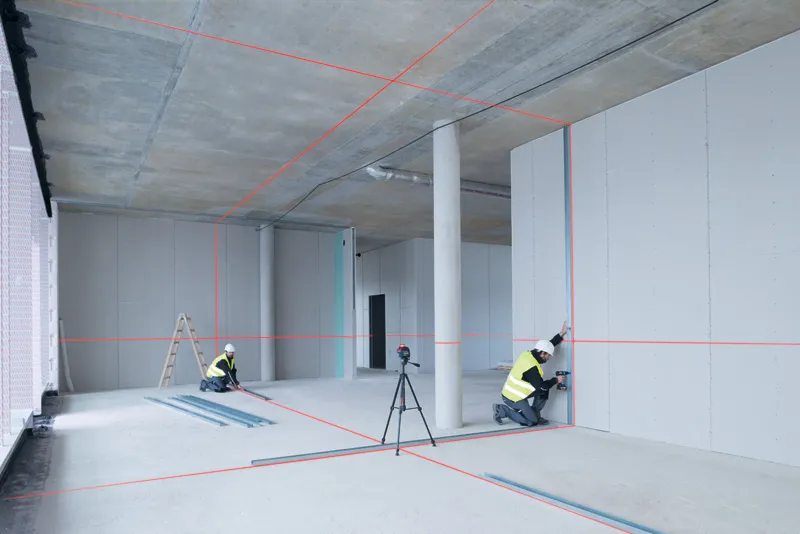

The GLL 3-80 in action!
