Line Laser GLL 3-80 C Professional

Visibility on a new level in 3 x 360°. Simply Connected.

from  603.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Working range* up to 30   m
Working range with receiver* up to 120 m
Accuracy* +/- 0,2 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation)
Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature, from -10
Operating temperature, up to 40
Operating temperature -10 – 40   °C
Storage temperature, from -20
Storage temperature, up to 70
Storage temperature -20 – 70   °C
Laser class 2
Working range with receiver, sign up to
Working range with receiver, value 120
Self-levelling range ± 4°
Levelling time 4
Dust and splash protection IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.) 8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.9
Colour of laser line red

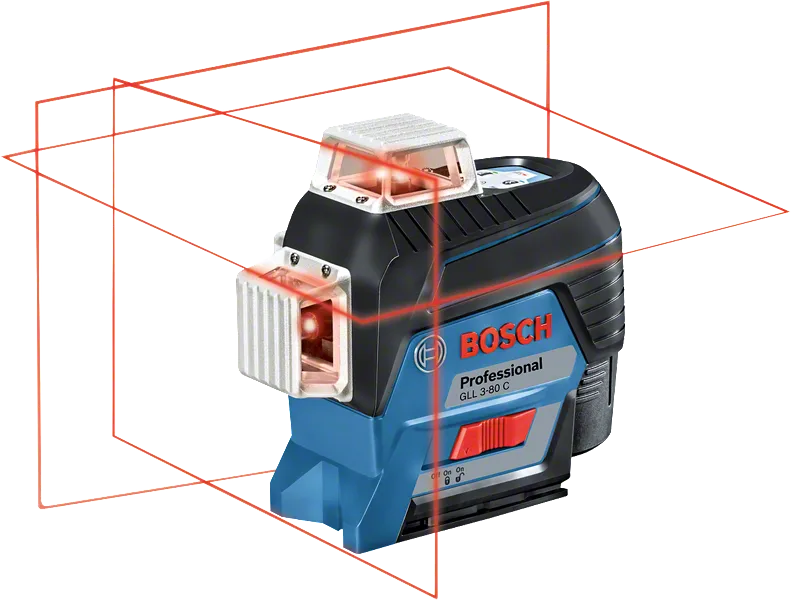

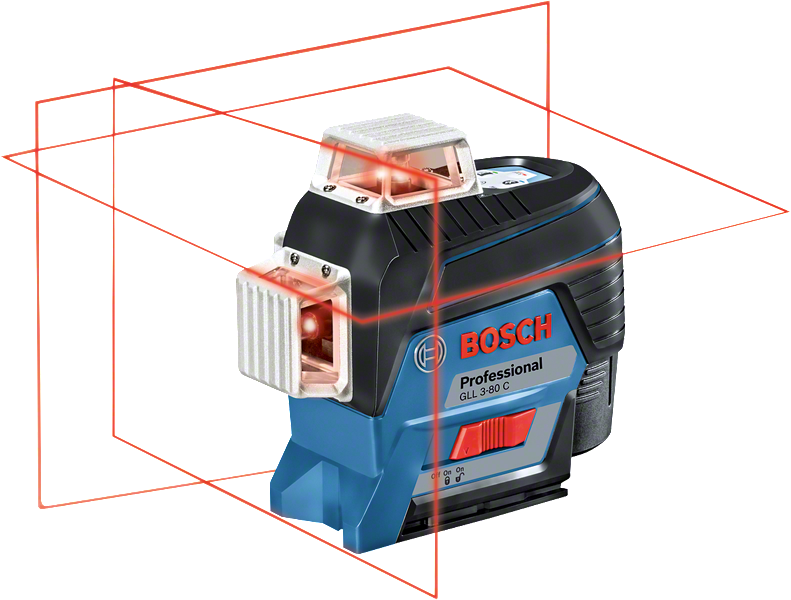

Projection 3 x 360° line
Compatible laser receivers LR 6 + 7

* Highlighted Data

Advantages

Visibility on a new level in 3 x 360°. Simply Connected.

  • Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work

Functions

Icon
Icon
Icon
Icon
Icon
 All Bosch Professional 10.8 V tools, batteries & chargers are 100% compatible with all Bosch Professional 12 V tools, batteries & chargers
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

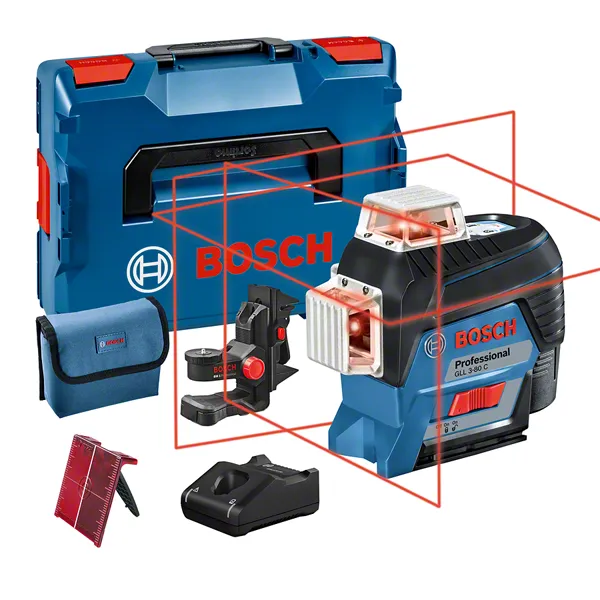

What’s Included in this Package
with Accessory, mount
with Accessory, mount
Order number: 0 601 063 R02
  • L-BOXX 136 1 600 A01 2G0
  • Universal mount BM 1 Professional 0 601 015 A01
  • Laser target plate
  • Pouch
  • 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
  • Quick charger GAL 1230 CV 1 600 A00 R44
603.00 EUR Recommended retail price excluding VAT.
