Laser measures

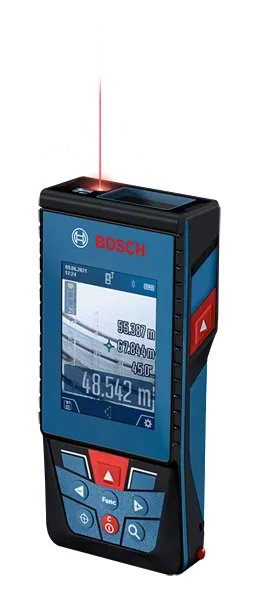

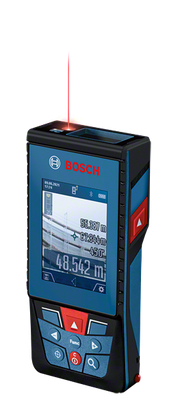

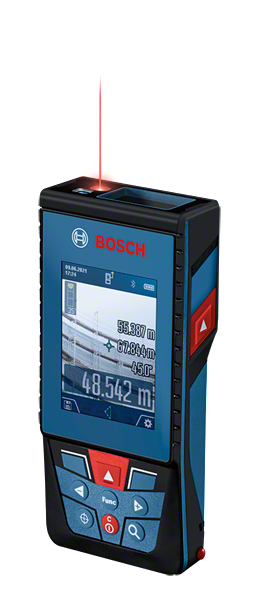

GLM 100-25 C Professional

Name: GLM 100-25 C
Brand: Bosch power tools
SKU: 0601072Y00
Availability: InStock

Laser Measure

Precise laser measure for easy indoor and outdoor measuring and documenting

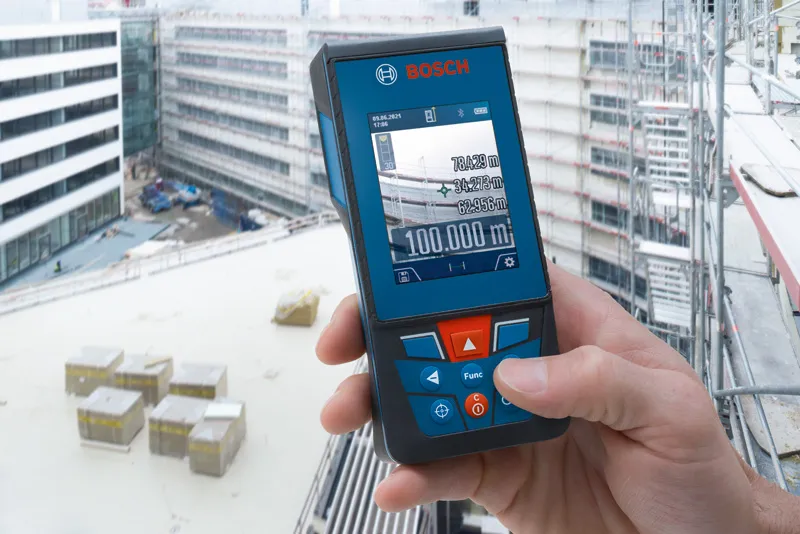

Accurate, 100-m laser measuring thanks to digital camera viewfinder with zoom function
Large, high-contrast IPS colour display with flip screen ensures optimal reading
Laser measure connects via Bluetooth for efficient data documentation

Functions & key features

Your Selection

with 3 x battery (AA), protective acc.

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

with 3 x battery (AA), protective acc. 0 601 072 Y00

Find a local dealer

GLM 100-25 C Professional

Your Selection

with 3 x battery (AA), protective acc.

Order number: 0 601 072 Y00

Find a local dealer

Included in this variant

Protective Bag
Carrying Strap
3 x 1.5 V LR6 battery (AA)

Your selection

Technical data

Additional data
Dust and splash protection	IP 54
Measurement time, typical	< 0.5 s
Laser diode	650 nm, < 1 mW
Measurement range	0=08 – 100=00 m
Laser class	2
Measurement accuracy, typical	± 1.5 mmᵈ
Measurement range of incline measurement	0 – 360° (4 x 90°)
Measuring accuracy (typical)	± 0.2°* (*plus use-dependent deviation)
Measurement time, max.	4 s
Power supply	3 x 1.5 V LR6 (AA)
Automatic deactivation	5 min
Weight, approx.	0.23 kg
Units of measurement	m/cm/mm/ft/inch/ft-inch
Memory capacity (values)	50
Tripod thread	1/4"
Digital viewfinder	integrated
Data transfer	Bluetooth™ 4.2 Low Energy
Laser colour	Red
Measuring range, up to	100 m

GLM 100-25 C Professional: Further information

Product Highlights

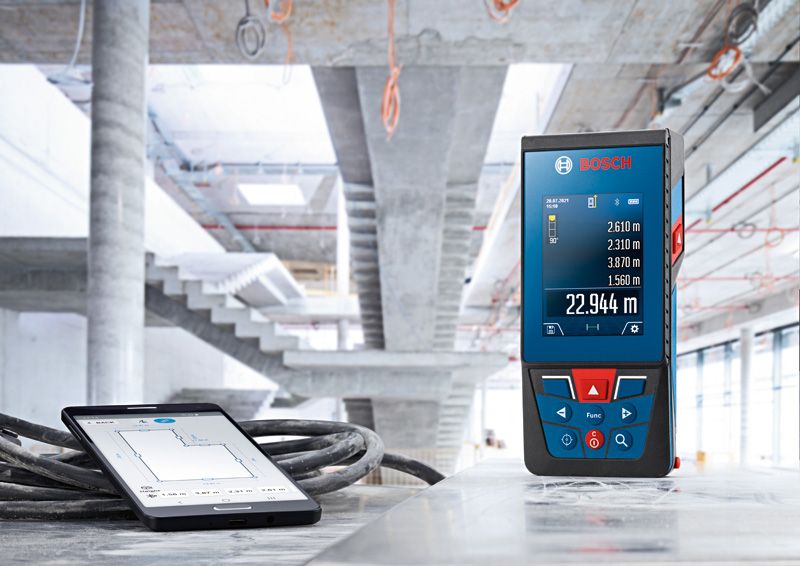

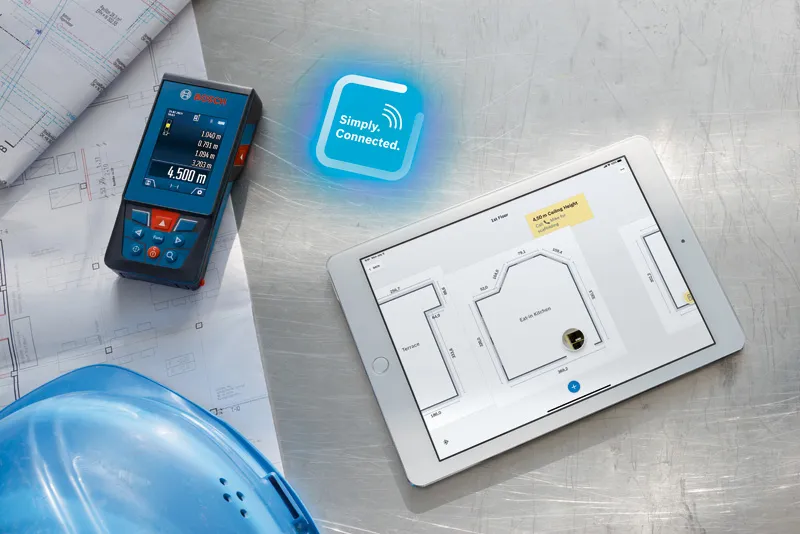

This professional outdoor laser measure features a digital camera viewfinder with a zoom function that precisely measures distances up to 100 m. The camera picture and measurements are easy to see on the big, high-contrast, 2.8” IPS colour display, which rotates for portrait or landscape view. For convenient documentation, measurement results can be transferred via Bluetooth to the Bosch MeasureOn App. This laser measure is the ideal solution for tough job sites thanks to IP54 dust and water protection, and scratch-resistant display glass.

Equipment & Application

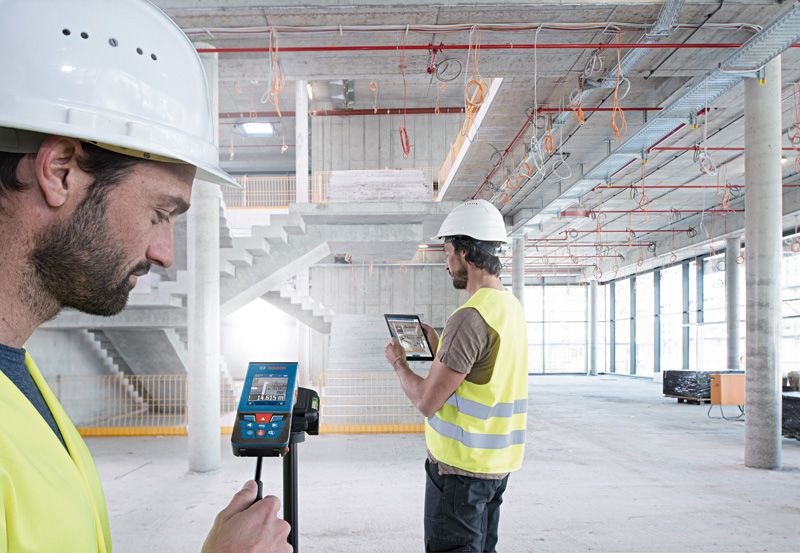

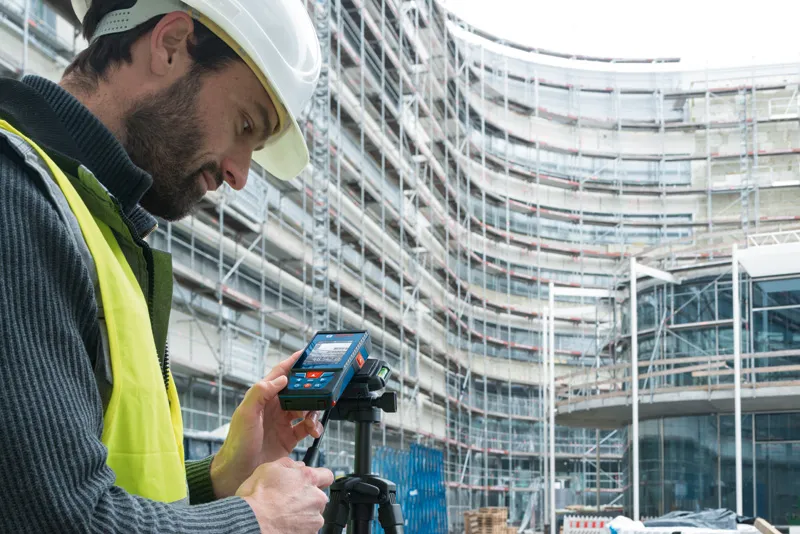

Architects, construction managers, and electricians will appreciate the outdoor capability, easy readability, and convenient documentation of this robust laser measure.

Additional Information

The GLM 100-25 C Professional has a user-friendly HMI interface with a click wheel for access to all features. A useful help option displays detailed images of each measuring function for easy comprehension.
