Laser measures

GLM 120 C Professional

Laser Measure

GLM 120 C

The smart solution for measuring and documenting surroundings, even outdoors

  • Digital viewfinder with zoom function allows for precision over large distances, outdoors and in complex surroundings

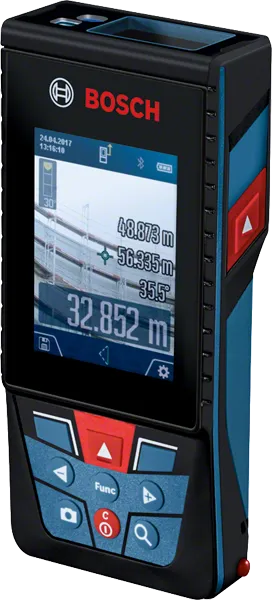

  • High-contrast IPS colour display provides optimal readability

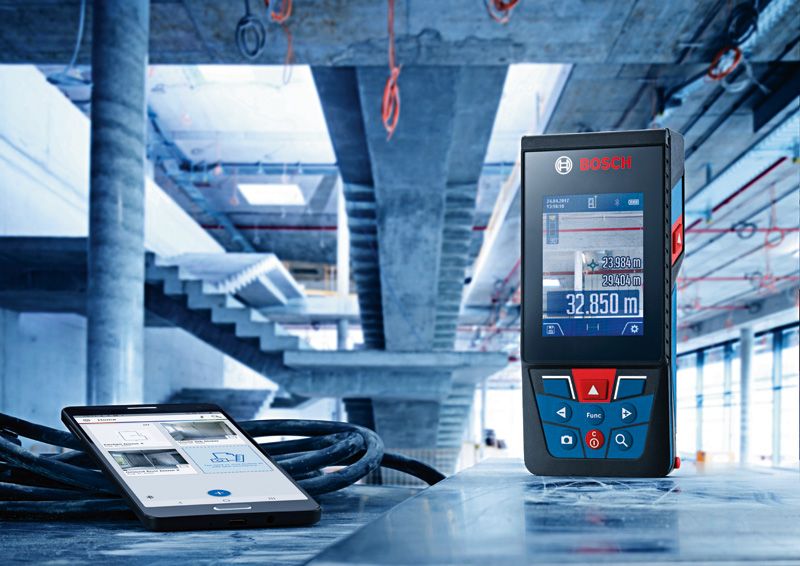

  • Remote controlling for rapid measurements and MeasureOn App for simple results documentation

Functions & key features

 Iso-Norm-16331 1-Icon-positive
Real time view
IP54 dust and splash water protection
 Get connected – personalise your tool and exchange information with your App. Enables fast connection of tool and Bosch Power Tools App for easy access, customisation, maintenance and asset management.

Your Selection

  • with carrying accessory
Show variant
306.00 EUR
Recommended retail price excluding VAT
Find a local dealer

with carrying accessory 0 601 072 F00
306.00 EUR
Recommended retail price excluding VAT

GLM 120 C Professional

Your Selection

GLM 120 C
with carrying accessory

Order number: 0 601 072 F00

306.00 EUR
Recommended retail price excluding VAT
Find a local dealer

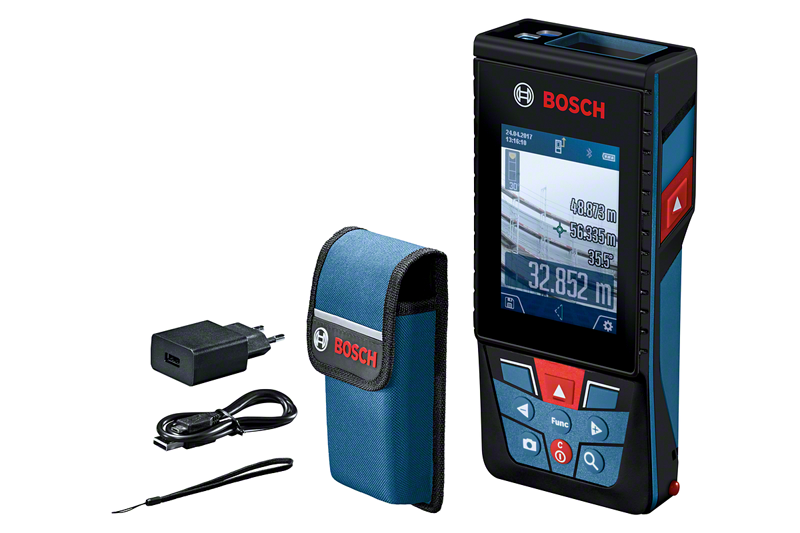

Included in this variant

  • Manufacturer’s certificate
  • Protective Bag
  • Micro USB charger
  • Micro USB cable
  • Carrying Strap

Technical data

Additional data

Dust and splash protection IP 54
Measurement time, typical < 0.5 s
Units of measurement m/cm/mm/ft/inch/ft-inch
Laser diode 650 nm, < 1 mW
Measurement range 0=08 – 120=00 m
Laser class 2
Measurement accuracy, typical ± 1.5 mmᵈ
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) ± 0.2°* (*plus use-dependent deviation)
Measurement time, max. 4 s
Power supply 1 x 3.6 V Li-Ion battery (3120 mAh)
Automatic deactivation 5 min
Weight, approx. 0.21 kg
Memory capacity (values) 50
Tripod thread 1/4"
Digital viewfinder integrated
Data transfer Bluetooth™ 4.2 Low Energy
Laser colour Red
Measuring range, up to 120 m
GLM 120 C

GLM 120 C Professional: Further information

Product Highlights

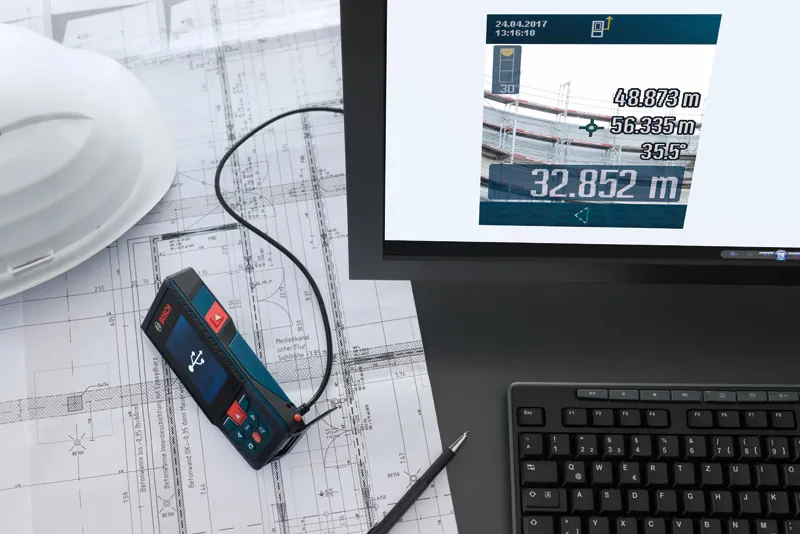

The laser measure GLM 120 C Professional is ideal for documenting surroundings and precisely measuring, even when working outdoors. The digital viewfinder allows for visual targeting in outdoor applications for distances up to 120 meters. Optimal clarity and durability are provided by the 2.8” colour display with a protective screen. Fast collection and documentation of values are made possible by the micro USB cable connection and the MeasureOn App.

Equipment & Application

This laser measure is the ultimate choice for measuring long distances, in complex surroundings and in situations of poor visibility.

Additional Information

The GLM 120 C Professional also has a user-friendly HMI interface with a click wheel for easy access to all the features and a useful help option with detailed images so that all of the functions are easily understandable.
