Laser measures

GLM 150-27 C Professional

Laser Measure

GLM 150-27 C

Advanced laser measure for long distances even outdoors with smart documentation

  • Precise, long-distance laser measuring thanks to digital camera viewfinder with zoom function
  • Optimal reading on large, high-contrast IPS colour display with flip screen capability

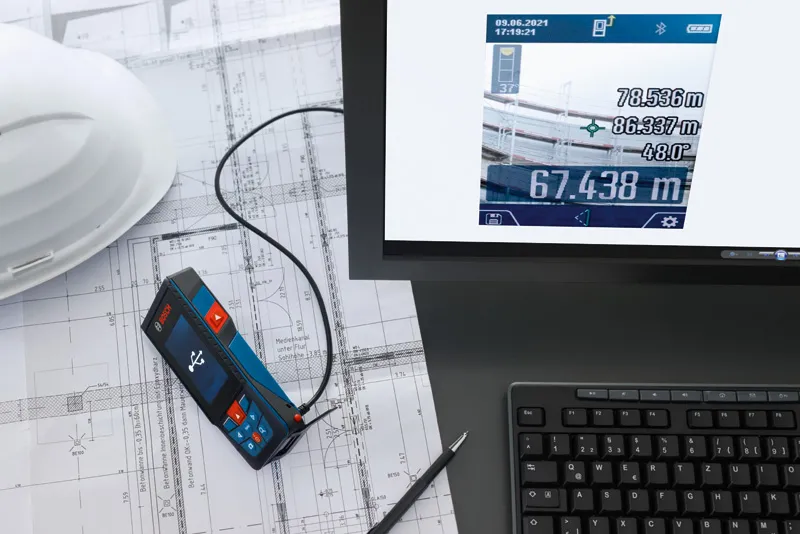

  • Connects via Bluetooth or USB cable for easy data documentation

Functions & key features

 Iso-Norm-16331 1-Icon-positive
 Bosch MT Icon GLM 100C Range Target 13 0.08 150m pos
Real time view
IP54 dust and splash water protection

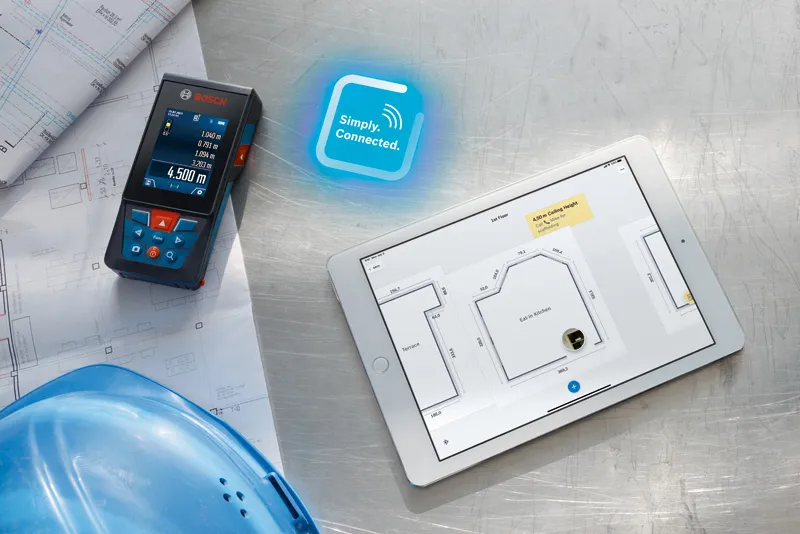

 Get connected – personalise your tool and exchange information with your App. Enables fast connection of tool and Bosch Power Tools App for easy access, customisation, maintenance and asset management.

Your Selection

  • with protective acc.
Show variant Find a local dealer

with protective acc. 0 601 072 Z00

GLM 150-27 C Professional

Your Selection

GLM 150-27 C
with protective acc.

Order number: 0 601 072 Z00

Find a local dealer

Included in this variant

  • Micro USB cable
    Order number: 2 609 120 670
  • Protective Bag
  • Carrying Strap

Technical data

Additional data

Dust and splash protection IP 54
Measurement time, typical < 0.5 s
Laser diode 650 nm, < 1 mW
Measurement range 0=08 – 150=00 m
Laser class 2
Measurement accuracy, typical ± 1.5 mmᵈ
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) ± 0.2°ᶜ
Measurement time, max. 4 s
Power supply 1 x 3.6 V Li-Ion battery (3120 mAh)
Automatic deactivation 5 min
Weight, approx. 0.21 kg
Units of measurement m/cm/mm/ft/inch/ft-inch
Memory capacity (values) 50
Tripod thread 1/4"
Digital viewfinder integrated
Data transfer Bluetooth™ 4.2 Low Energy
Laser colour Red
Measuring range, up to 150 m
GLM 150-27 C

GLM 150-27 C Professional: Further information

Product Highlights

This robust outdoor laser measure has a digital camera viewfinder with a zoom function for accurately measuring distances up to 150 m. Measurements and pictures are automatically saved and easy to read thanks to a large, high-contrast 2.8" IPS colour display that rotates between portrait and landscape view. For convenient documentation, all data can be transferred via Bluetooth to the Bosch MeasureOn App or via USB connection to a PC. With IP54 protection, scratch-resistant display glass, and user-friendly interface, this laser measure is the handy all-rounder for demanding jobsites.

Equipment & Application

Architects, construction managers, or HVAC installation professionals will reach for this smart laser measure for its long-distance capability, easy readability, and convenient documentation.

Additional Information

The GLM 150-27 C laser measure has an integrated lithium-ion battery, ensuring long operating time and more flexibility.
