GRL 600 CHV Professional

Rotation Laser

GRL 600 CHV
GRL 600 CHV
GRL 600 CHV

Get accurate results and save time with the GRL 600 CHV – perfect for heavy-duty jobs

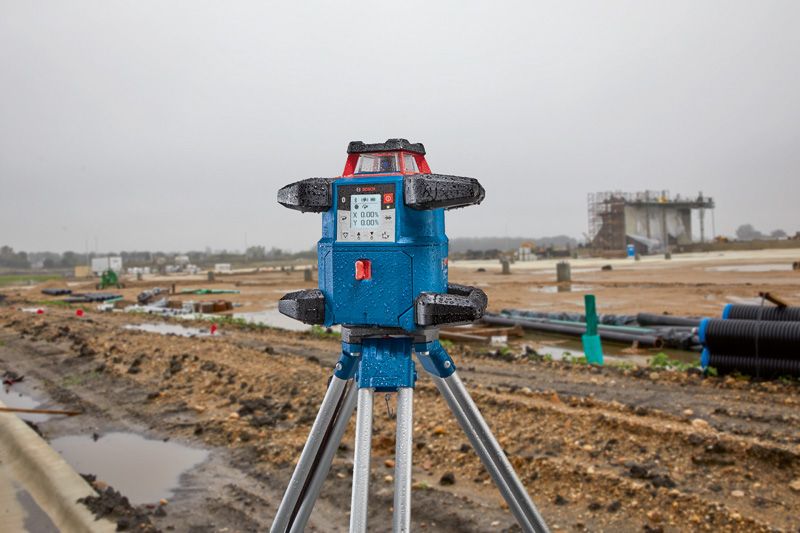

  • Highly flexible in bad weather with robust design, impact protection, and IP68 rating against dust and water

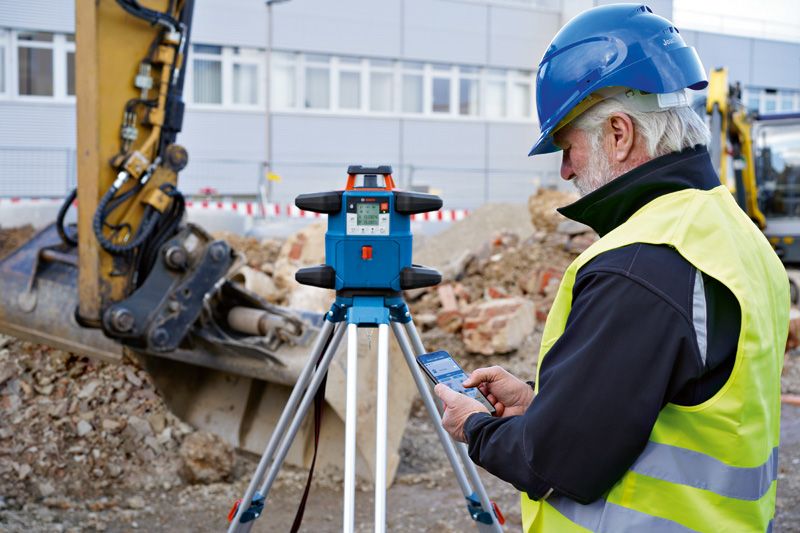

  • Intuitive via screen and access to levelling remote app that visualises all functions including dual slope setting to save time

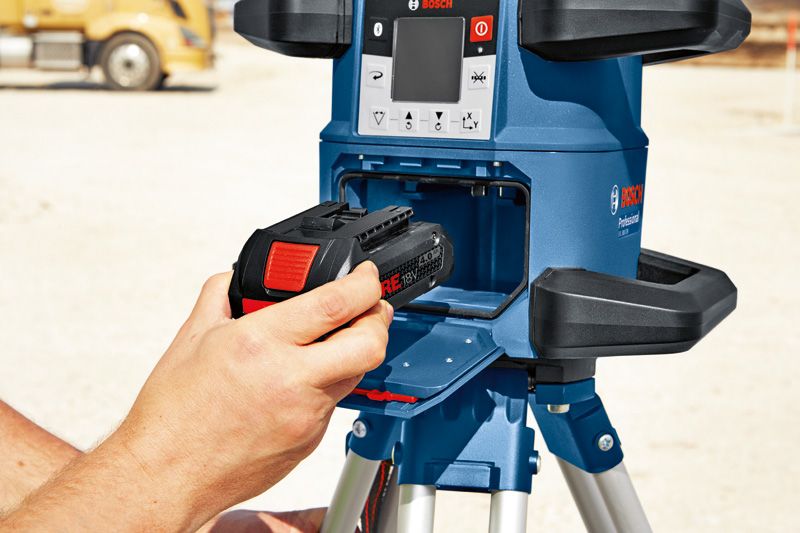

  • Conveniently long runtime both with 18V battery system and alkaline batteries (adapter included)

Functions & key features

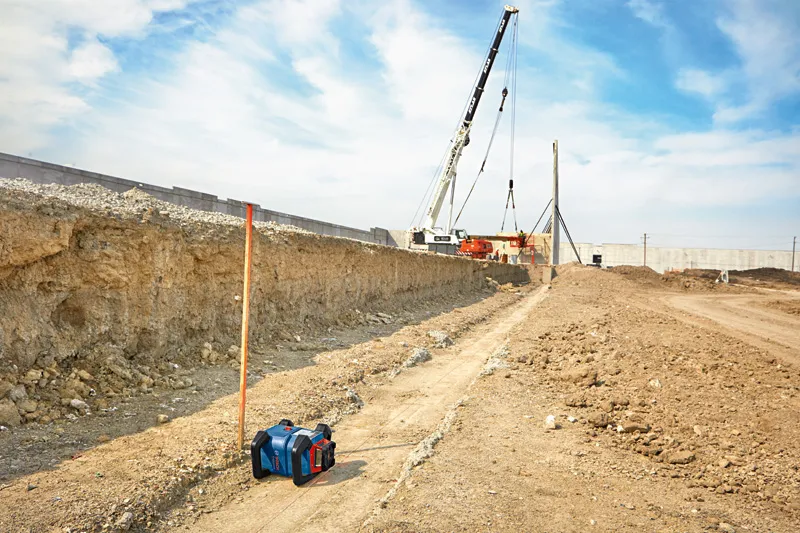

2 m* tripod-tip over for higher durability (*the measuring tool, mounted in a horizontal position on a tripod, tips on flat concrete floor)
Dual slope for creating inclined surfaces in two axes
Long reception area 125 mm

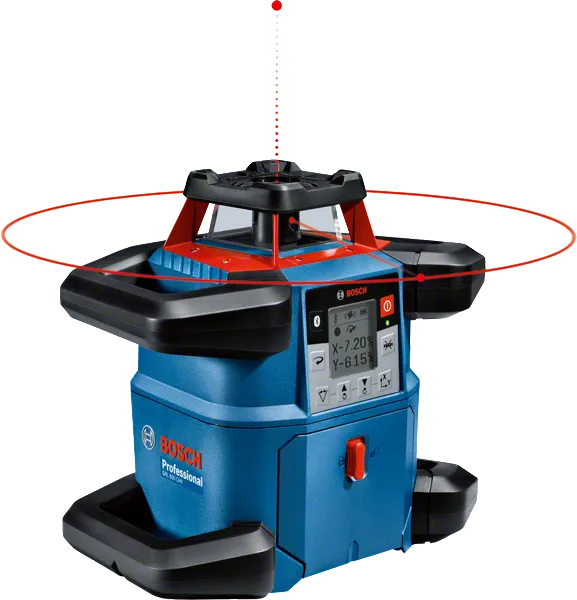

IP68 dust and water tight
User calibration for fast and easy calibration and precise work

Your Selection

  • in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser receiver
Show variant
2,109.00 EUR
Recommended retail price excluding VAT
Find a local dealer

in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser receiver 0 601 061 F00
2,109.00 EUR
Recommended retail price excluding VAT

GRL 600 CHV Professional

Your Selection

GRL 600 CHV
in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser receiver

Order number: 0 601 061 F00

2,109.00 EUR
Recommended retail price excluding VAT
Find a local dealer

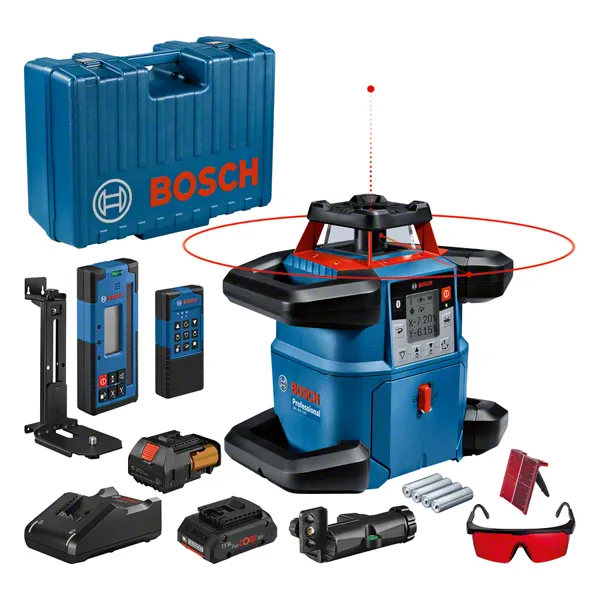

Included in this variant

  • Remote control RC 6 Professional
  • Receiver bracket RB 60 Professional
  • Battery adapter BA 1 Professional
  • 4 x 1.5 V LR6 battery (AA)
  • Quick charger GAL 18V-40 Professional
    Order number: 1 600 A01 9RJ

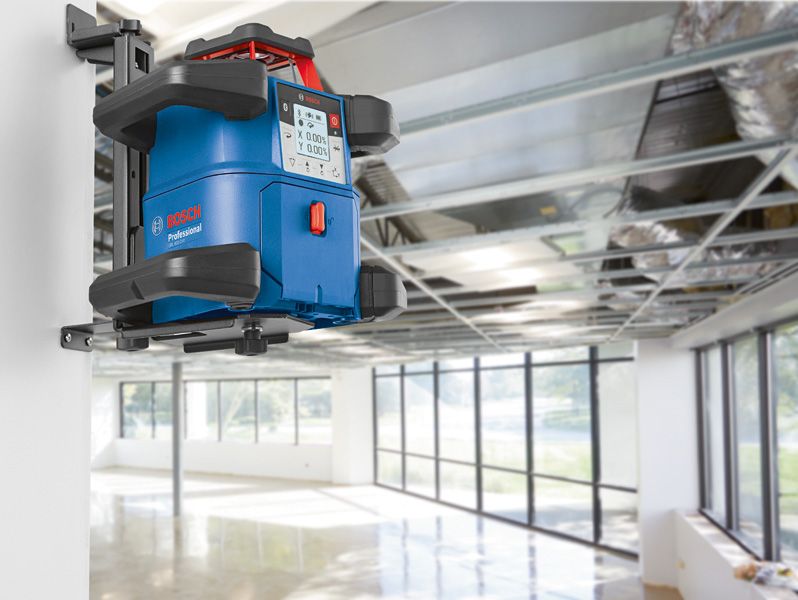

  • Wall mount WM 6 Professional
  • Laser receiver LR 60 Professional
    Order number: 0 601 069 P00
  • 4 x 1.5 V LR20 battery (D)

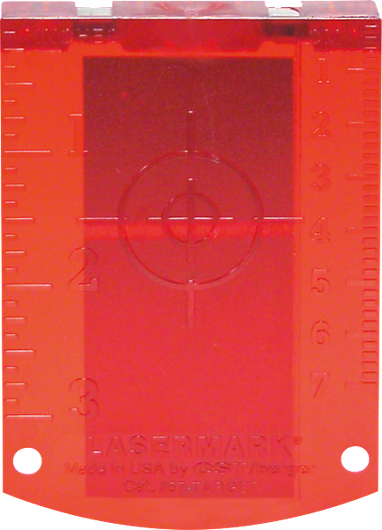

  • Laser target plate

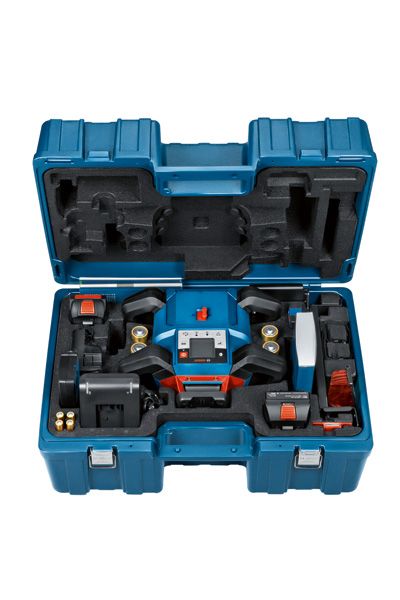

  • Carrying case
  • 1 x battery ProCORE18V 4.0Ah
    Order number: 1 600 A01 6GB
  • Laser viewing glasses (red) (spare part number 1 608 M00 05B)

Technical data

Additional data

Working range with receiver, value 600 m
Dust and splash protection IP 68
Battery voltage 18.0 V
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 50 °C
Laser class 2
Working range with receiver up to 600 m (Diameter)
Working range without receiver up to 60 m (Diameter)
Accuracy ± 1.5 mm at 30 m* horizontal (*plus use-dependent deviation), ± 3.0 mm at 30 m* vertical (*plus use-dependent deviation)
Self-levelling range ±8.5% (±5°)
Rotation speed 150/300/600 min−1
Power supply 18 V Li-ion battery, 4 x D cell batteries
Operating time (max.) 60 h, 70 h
Tripod thread 2 x 5/8"

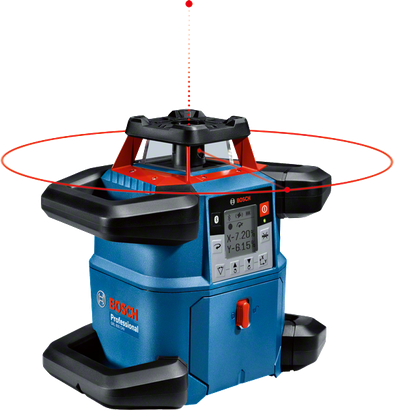

Projection 1 x 360° line
Compatible laser receivers LR 60
Weight with 4.0 Ah battery 4.3 kg
Weight with alkaline batteries 4.6 kg
Slope function yes
GRL 600 CHV

GRL 600 CHV Professional: Further information

Product Highlights

Heavy duty, jobsite-proof – the robust GRL 600 CHV Professional endures even the harshest environments. Its sturdy design offers impact protection and has an IP68 rating against dust and water – including the battery compartment for highly flexible work in bad weather conditions. It provides convenient connectivity, enabling more focused work with less wasted time. Operating the tool is intuitive thanks to its screen and access to the levelling remote app that visualises all functions, including a dual slope setting, to save valuable time. This highly accurate laser has a long runtime, both with the 18V battery system and alkaline batteries included for continuous working.

Equipment & Application

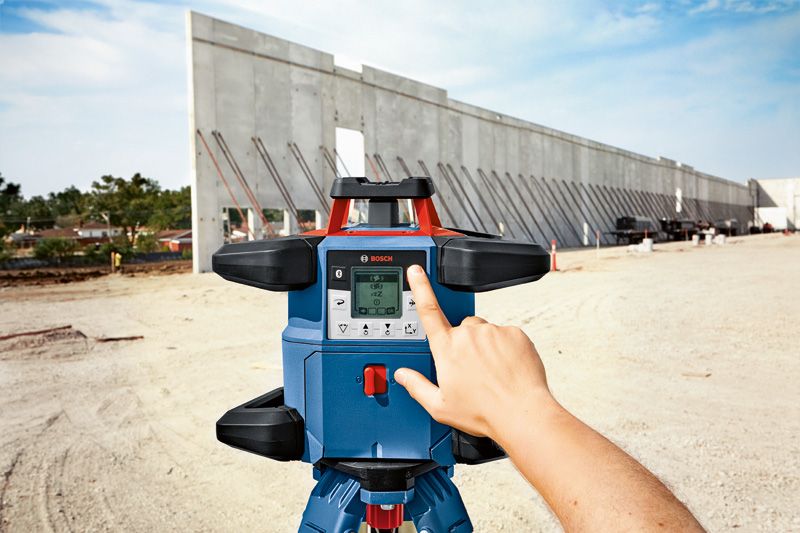

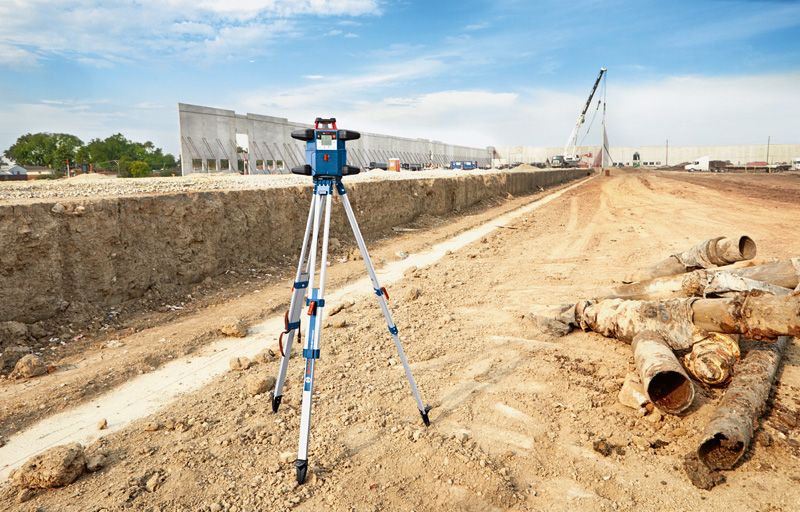

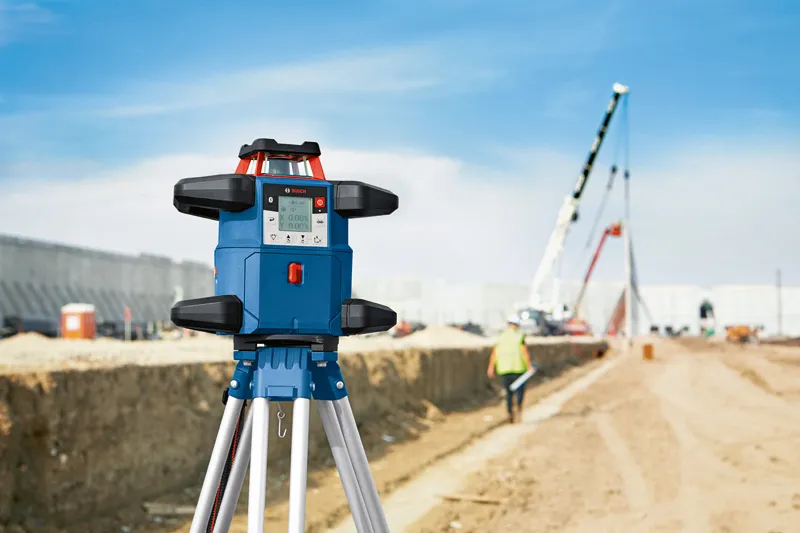

Use this tool for exterior applications when determining cut-and-fill excavation work, concrete forms, landscaping, and façade work.

Additional Information

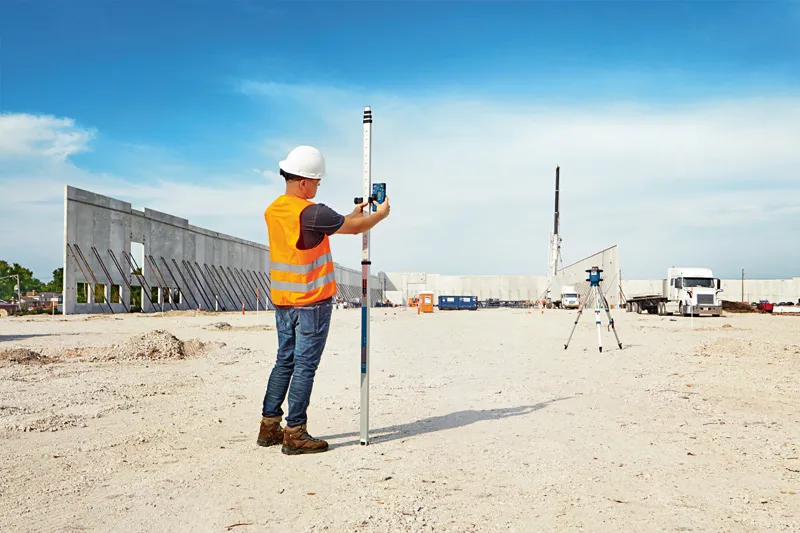

The GRL 600 CHV also features a high-quality receiver with a 125-mm reception area, a dual-sided display, and an offset feature in millimetres. Calibrating the tool is quick and easy – follow the step-by-step instructions via the intuitive app to save time and resources and ensure accurate results on every job. Use the handy 'mask mode' available in the app to avoid reflection and interference with other devices on the jobsite.
