Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,100 |
| Weight | 2.9 |
| No-load speed, 1st gear | 0 – 900 rpm |
| No-load speed, 2nd gear | 3.000 rpm |
| Power output | 630 |
| Rated speed | 580 / 1.900 rpm |
| Rated torque | 9=6 / 3=2 Nm |
| Chuck capacity, min./max. | 1=5 – 13 mm |
| Tool dimensions (width) | 90 |
| Tool dimensions (length) | 335 |
| Tool dimensions (height) | 220 |
| Impact rate at no-load speed | 0 – 15.300 / 51.000 bpm |
| Max. torque | 40=0 / 14=5 Nm |
| Drilling range | |
|---|---|
| Drilling diameter in concrete | 22 / 13 mm |
| Drilling diameter in wood* | 40 / 25 mm |
| Drilling diameter in steel | 16 / 8 mm |
| Drilling diameter in masonry* | 24 / 16 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 5.6 |
| Uncertainty K | 1.5 |
| Total vibration values (Impact drilling in concrete) | |
|---|---|
| Vibration emission value ah | 14.6 |
| Uncertainty K | 1.8 |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 |
| Uncertainty K | 1.5 |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages

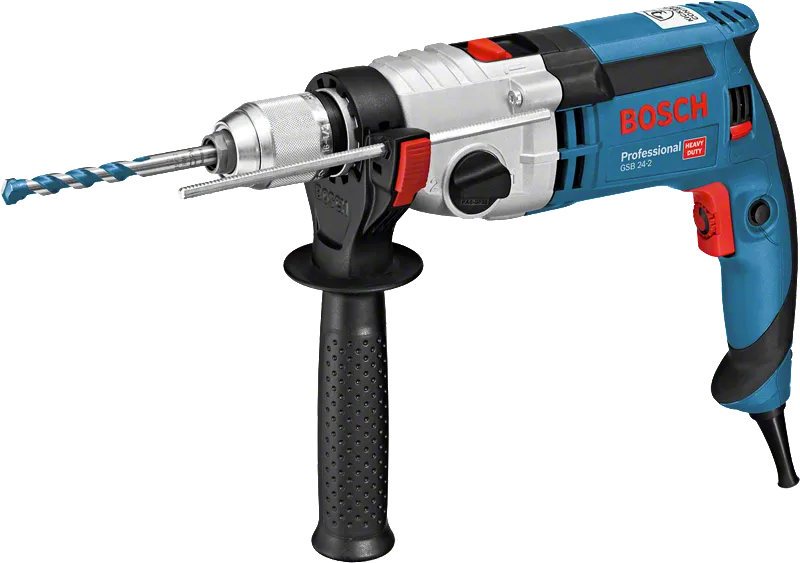

The powerful tool for toughest applications - now with the intelligent KickBack Control.
- Heavy-duty applications with large diameters due to the 1,100 W Bosch high-performance motor and high torque
Functions

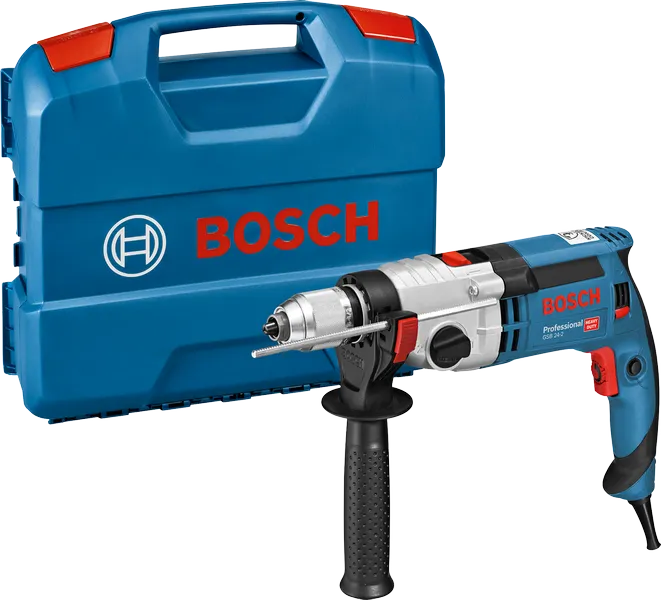

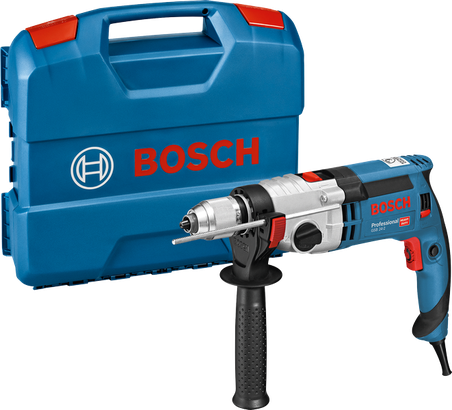

What’s Included in this Package
with chuck
Order number:
0 601 19C 801
- Keyless chuck 13 mm 2 608 572 150
- Auxiliary handle 2 602 025 193
- Depth stop 210 mm 1 613 001 010
- L-Case 1 600 A00 M7X
244.00 EUR
Recommended retail price excluding VAT.
