Technical data
| Additional data | |
|---|---|
| Cutting capacity in steel (400 N/mm²), max. | 2.8 |
| No-load stroke rate | 2,400 |
| Material that can be processed | Steel up to 400 N/mm² at 2.8 mm |
| Stroke rate under load | 1,500 |
| Weight | 2.7 |

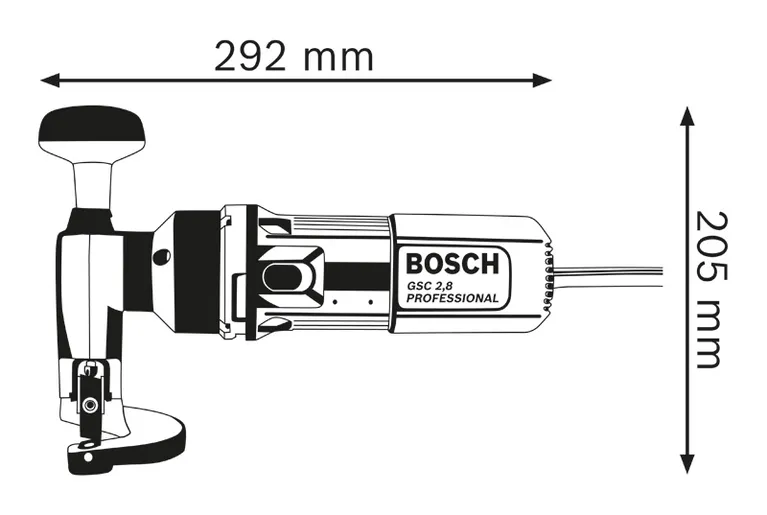

| Tool dimensions (length) | 292 |
| Tool dimensions (height) | 205 |
| Cutting capacity in steel (600 N/mm²), max. | 2.2 |
| Cutting capacity in steel (800 N/mm²), max. | 1.9 |
| Cutting capacity in aluminium (200 N/mm²), max. | 3.5 |
| Electric specifications | |
|---|---|
| Rated input power | 500 |
| Power output | 270 |
| Total vibration values (Cutting sheet metal) | |
|---|---|
| Vibration emission value ah | 22 |
| Uncertainty K | 2 |
Advantages
The slim tool with reversible blade
- Slim design with planetary gears
- Reversible blade for particularly high economic efficiency
- Knob grip for comfortable and safe guidance
Functions
What’s Included in this Package
with accessory set
Order number:
0 601 506 103
- Alignment gauge (spare part number 2 607 970 001)
- Hex key WAF 2.5 (spare part number 1 907 950 003)
- Hex key WAF 5 (spare part number 1 907 950 006)
- 1 x blade set for metal shear 2 607 010 025
592.00 EUR
Recommended retail price excluding VAT.
