Table saws & work benches

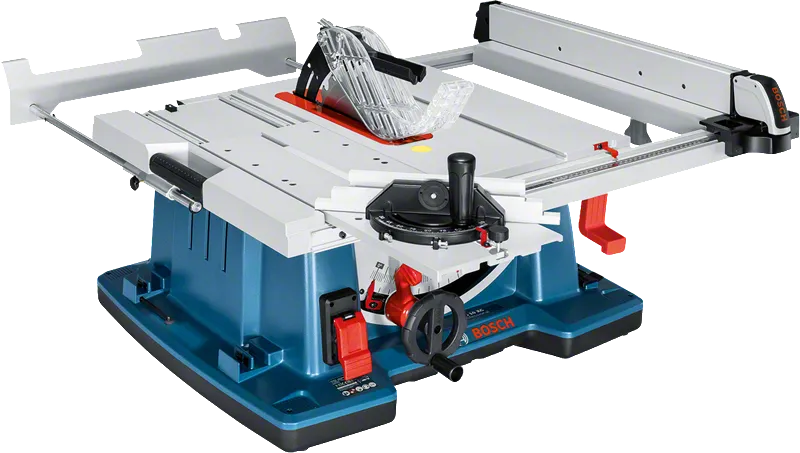

GTS 10 XC Professional

Table Saw

The versatile tool with a powerful motor

  • Powerful motor with motor brake, starting current limitation, overload protection and Constant Electronic for the toughest applications

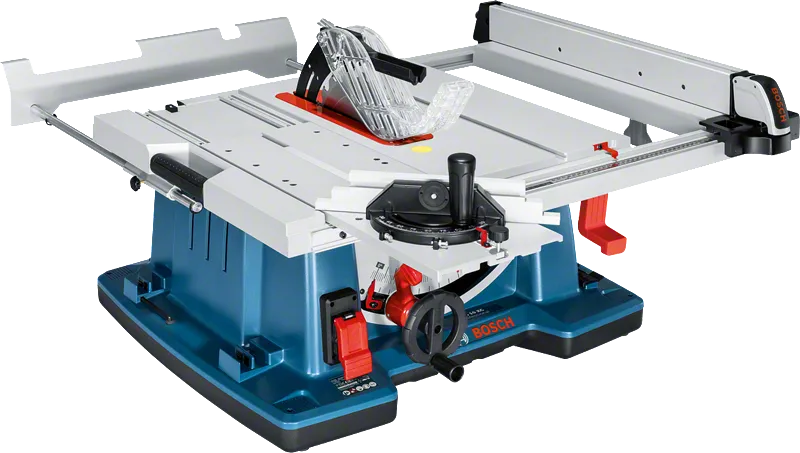

  • Versatile due to integrated slide carriage as well as table-widener and table extension
  • Tool-free lowering of the riving knife for concealed cuts

Functions & key features

Easy disc / tool change thanks to spindle lock
Two layers of insulating material surrounding live parts or reinforced insulation. Does not require a connection to electrical earth (ground)
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.

Your Selection

  • with dust extraction accessory, Accessory
Change variant Find a local dealer

with dust extraction accessory, Accessory 0 601 B30 470

Select a variant

Your Selection

GTS 10 XC
with dust extraction accessory, Accessory

Order number: 0 601 B30 470

Find a local dealer

Included in all variants

  • Parallel guide
    Order number: 2 610 016 851
  • Angle guide
    Order number: 2 610 015 508
  • Dust extraction adapter
    Order number: 2 610 015 509
  • Push stick
    Order number: 2 610 015 022
  • Storage for additional saw blade
  • 1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24
    Order number: 2 608 838 412

Additional in this variant

  • Voltage 240 V

Your Selection

GTS 10 XC
with dust extraction accessory

Order number: 0 601 B30 400

1,016.00 EUR
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • Parallel guide
    Order number: 2 610 016 851
  • Angle guide
    Order number: 2 610 015 508
  • Dust extraction adapter
    Order number: 2 610 015 509
  • Push stick
    Order number: 2 610 015 022
  • Storage for additional saw blade
  • 1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24
    Order number: 2 608 838 412

Technical data

Additional data

Saw blade diameter 254 mm
Incline setting 47 ° L / 1 ° R
Table size 640 x 705 mm
Voltage 240 V
Rated input power 2,000 W
No-load speed 4,200 rpm
Saw blade bore diameter 30 mm
Weight 35 kg

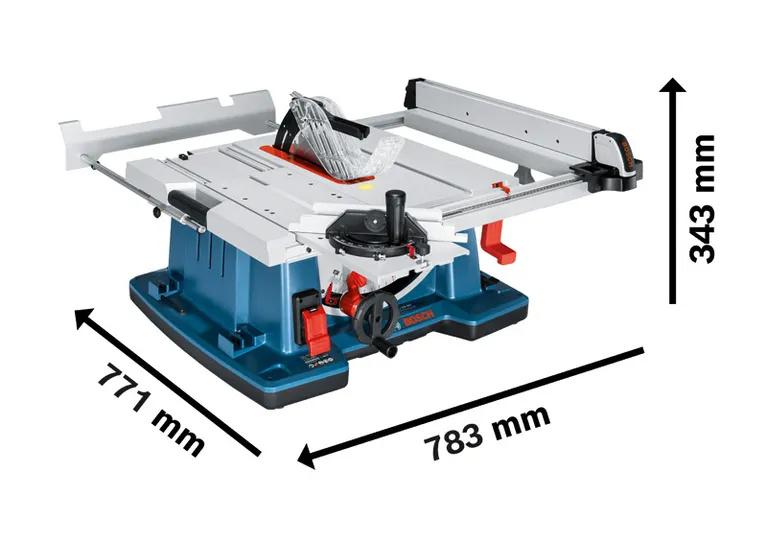

Tool dimensions (width x length x height) 771 x 783 x 343 mm
Cutting height 90° 79 mm
Cutting height 45° 56 mm
Max. cutting capacity on the right 635 mm
Max. cutting capacity on the left 250 mm

The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 105 dB(A). Uncertainty K= 3 dB.

GTS 10 XC

* You can find more information about the deviations in the following link: Technical features of products
