Large angle grinders

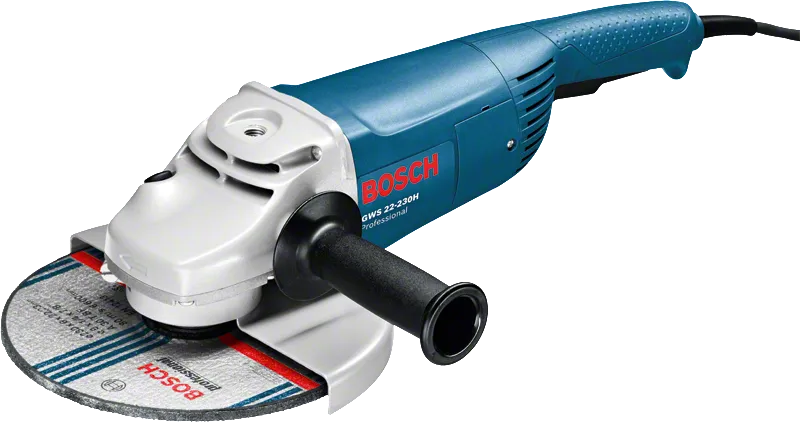

Bosch GWS 22-230 H angle grinder with 230mm disc.
GWS 22-230 H

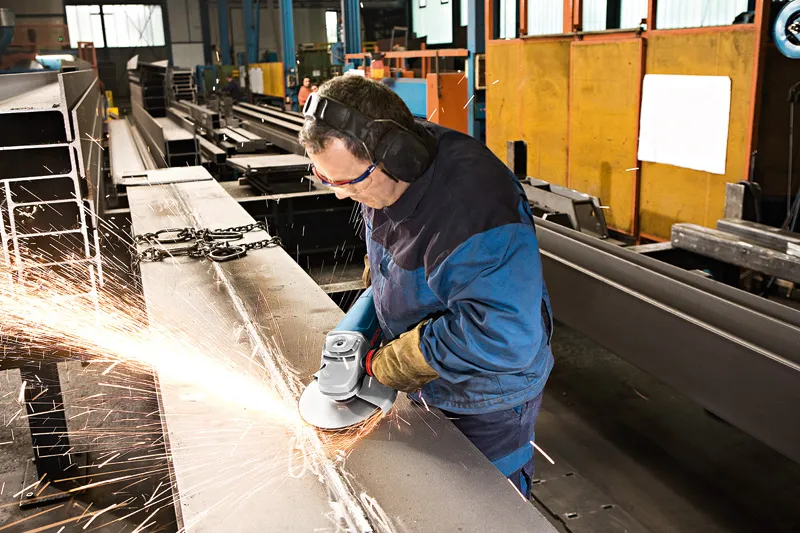

A person wearing safety equipment grinds a metal beam, producing sparks.

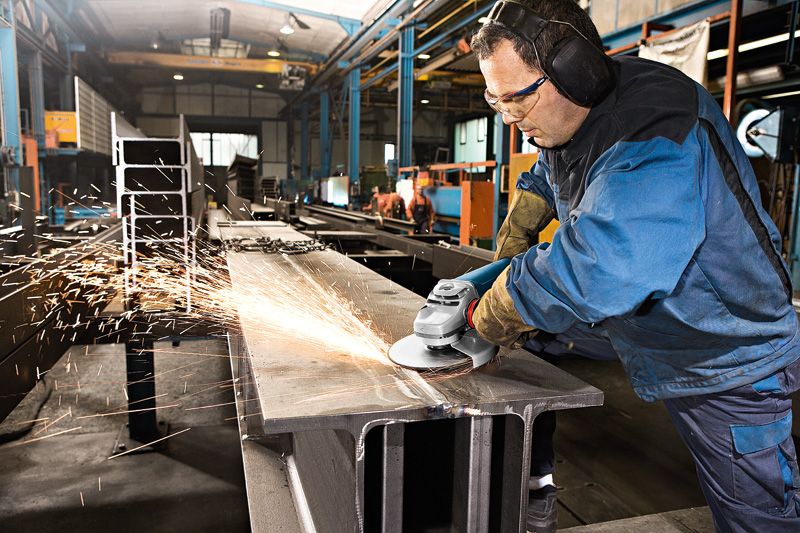

A person wearing safety equipment grinds a steel beam in an industrial workshop.

GWS 22-230 H Professional

Angle Grinder

Efficient for versatile cutting and grinding applications in the 2,200 W category

  • Powerful 2200 W Champion motor – for fast work progress
  • Low weight for optimum handling

Functions & key features

Twist-proof guard
Protection switch

Your Selection

  • with auxiliary handle
Change variant Find a local dealer

with auxiliary handle 0 601 882 103

Select a variant

Your Selection

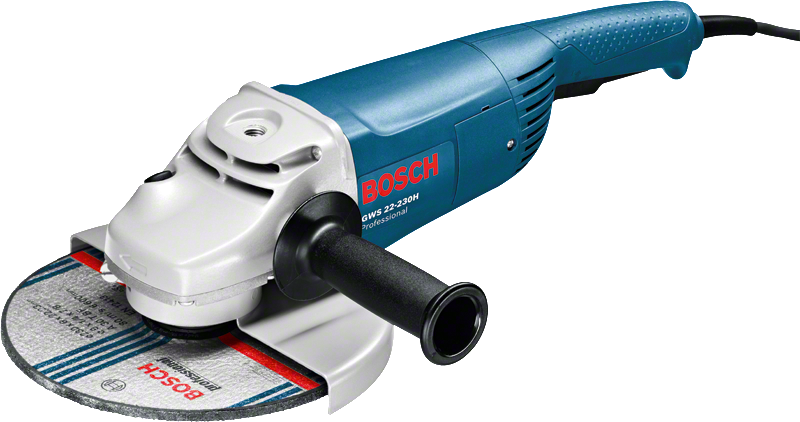

Bosch GWS 22-230 H angle grinder with 230mm disc.
with auxiliary handle

Order number: 0 601 882 103

Find a local dealer

Included in all variants

  • Backing flange
    Order number: 1 605 703 099
  • Locking nut
    Order number: 1 603 340 040
  • Protective guard
    Order number: 2 605 510 298
  • Two-hole spanner
    Order number: 1 607 950 048
  • Auxiliary handle
    Order number: 1 602 025 022

Additional in this variant

  • Tri-Control switch

Your Selection

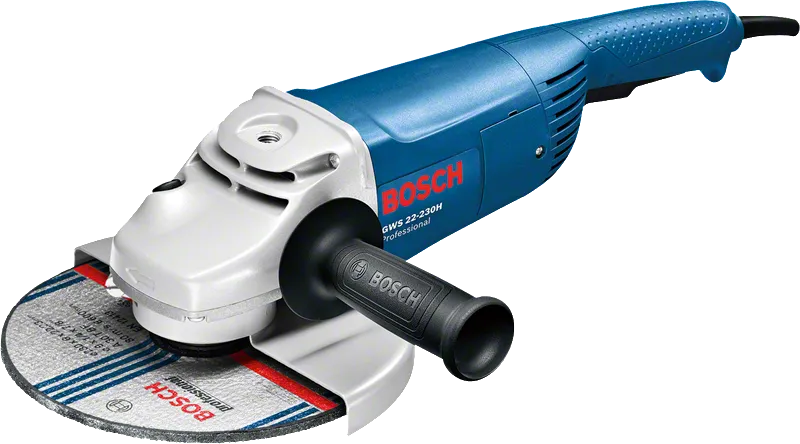

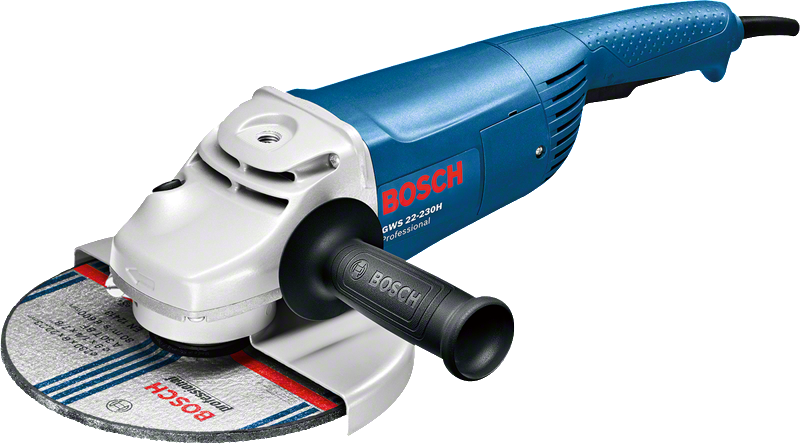

Bosch GWS 22-230 H angle grinder with side handle.
with auxiliary handle, Accessory

Order number: 0 601 882 L63

Find a local dealer

Included in all variants

  • Backing flange
    Order number: 1 605 703 099
  • Locking nut
    Order number: 1 603 340 040
  • Protective guard
    Order number: 2 605 510 298
  • Two-hole spanner
    Order number: 1 607 950 048
  • Auxiliary handle
    Order number: 1 602 025 022

Additional in this variant

  • Voltage 110 V

Technical data

Additional data

Rated input power
2200 W
No-load speed
6.500 rpm
Disc diameter
230 mm
Grinding spindle thread
M14
Main handle
Barrel
Switch
Lockable Switch
Weight
5.2 kg
Show more

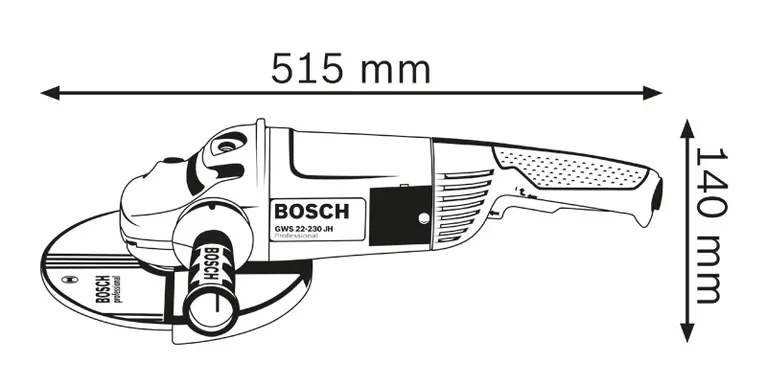

Angle grinder dimensions

* You can find more information about the deviations in the following link: Technical features of products

GWS 22-230 H Professional: Further information

Product Highlights

The GWS 22-230 H Professional corded large angle grinder delivers efficient performance for various cutting and grinding applications in the 2,200 W category. Its 2,200 W motor ensures high-powered results for general work. User protection is increased due to the grinder´s PROtection switch. Moreover, its compact ergonomic housing design enables comfortable handling for versatile use. This tool is intended for cutting and grinding metal, tiles, and bricks. It is compatible with dust attachment GDE 230 FC-S Professional and Bosch Click & Clean dust extraction system.

Equipment & Application

The GWS 22-230 H Professional also features a protection guard.
