Large angle grinders

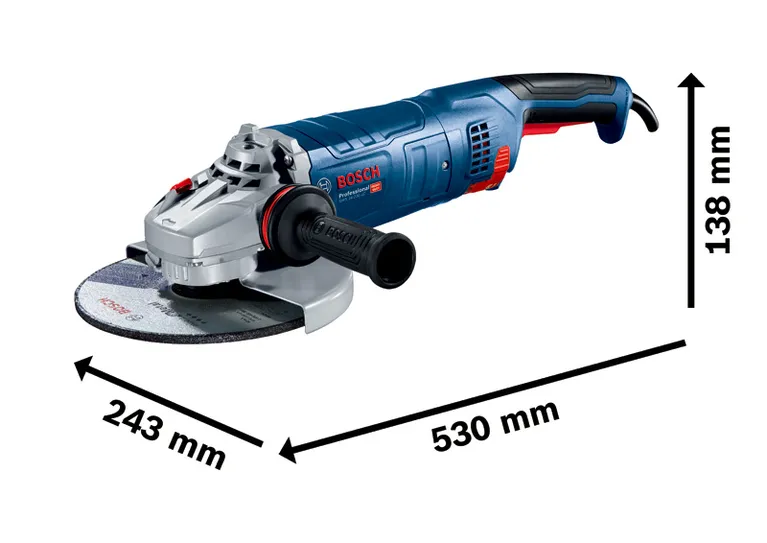

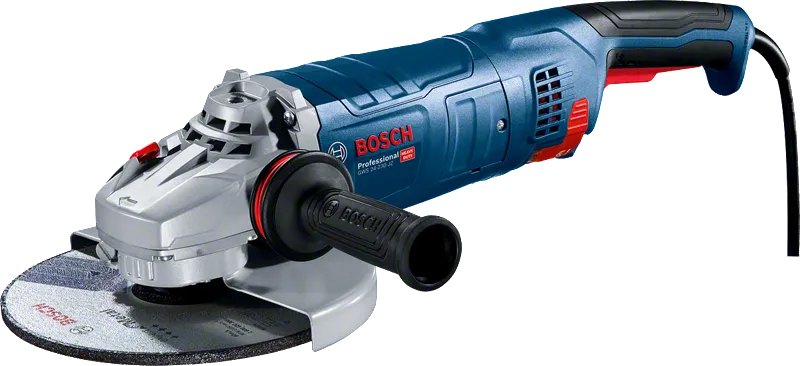

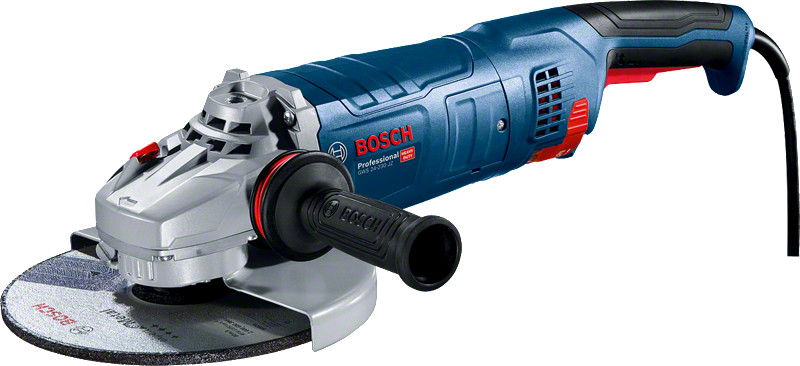

GWS 24-230 JZ Professional

Angle Grinder

Powerful 2,400W angle grinder with CYCLON TECH dust protection system for extended performance

  • World’s first CYCLON TECH removes up to 90% of dust from cooling air for up to 3X increased motor lifetime
  • New patented motor delivers up to 2X high overload capability for higher material removal rate
  • Precision engineered mechanical system together with the vibration control auxiliary handle reduces the vibration by 13% for the operator
  • Overload Protection shuts down the tool under extended overload conditions, to protect the tool
  • Restart Protection for increased user safety and Soft Start adds to convenience

Functions & key features

Comfortable working Vibration Control reduces vibration for less tiring work
 CYCLON TECH – Up to 90%*dust removal for motor protection and increased tool performance.
Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
Comfortable handling of the tool thanks to softgrip
Disc diameter 230 mm

Your Selection

  • in cardboard box with spanner
Show variant Find a local dealer

in cardboard box with spanner 0 601 8C3 3P0

GWS 24-230 JZ Professional

Your Selection

GWS 24-230 JZ
in cardboard box with spanner

Order number: 0 601 8C3 3P0

Find a local dealer

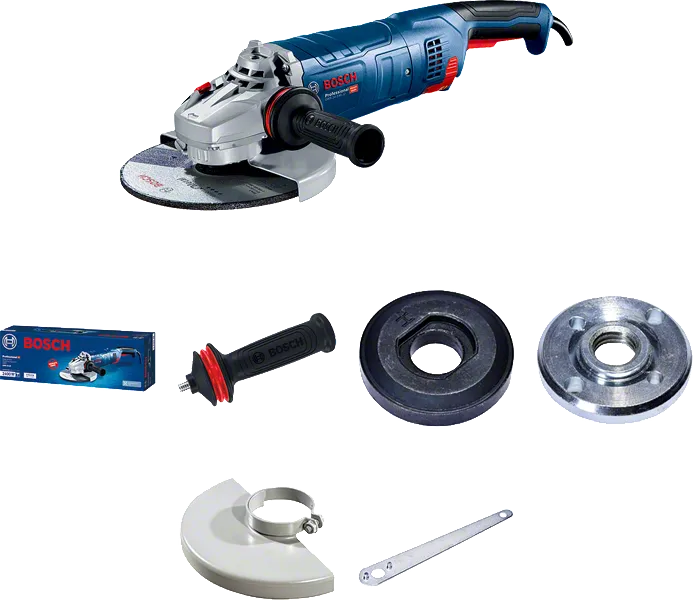

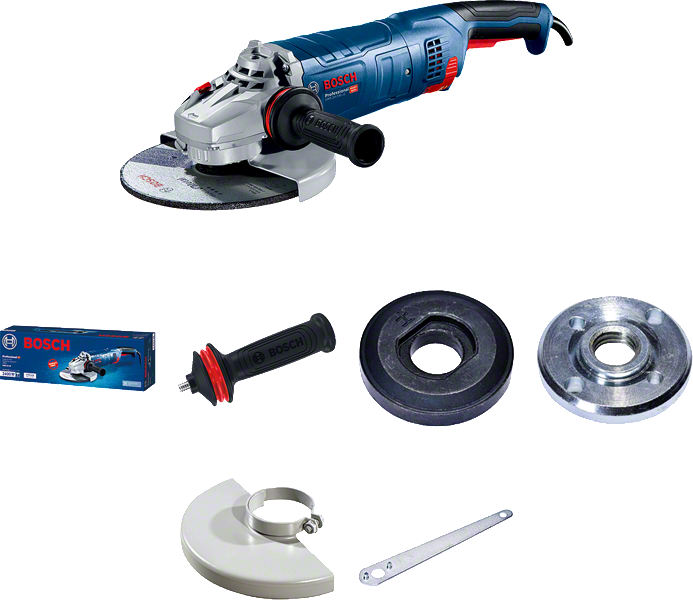

Included in this variant

  • Two-hole spanner
    Order number: 1 607 950 061
  • Cardboard box
  • Locking nut
    Order number: 1 603 345 043
  • Protective cover
    Order number: 1 619 P15 622
  • Backing flange (spare part number 2 605 703 014)
  • Auxiliary handle
    Order number: 1 602 025 030

Technical data

Additional data

Rated input power 2400 W
No-load speed 6.500 rpm
Disc diameter 230 mm
Voltage, electrical 230 V
Grinding spindle thread M14
Main handle Barrel
Rubber backing pad, diameter 180 mm
Grinding head, diameter 140 mm
Weight 6 kg
Switch Lockable Switch
Show more
GWS 24-230 JZ

GWS 24-230 JZ Professional: Further information

Product Highlights

New GWS 24 JZ Professional unleashes 2400W of pure power that gets your jobs done faster, while CYCLON TECH dust protection system increases motor lifetime! The new motor delivers up to 2X higher material removal rate that results in faster job completion. The CYCLON TECH is world’s first dust protection system that removes up to 90% of dust from the cooling air, thereby increasing motor lifetime by up to 3X in extremely dusty work conditions. The Vibration Control auxiliary handle further increases operator comfort. Restart Protection and Soft Start adds to user safety, while Overload Protection shuts the tool down under extended overload conditions.

Equipment & Application

GWS 24 offers benchmark performance in metal and construction applications by delivering up to 2X higher material removal rate,so work gets done faster!
