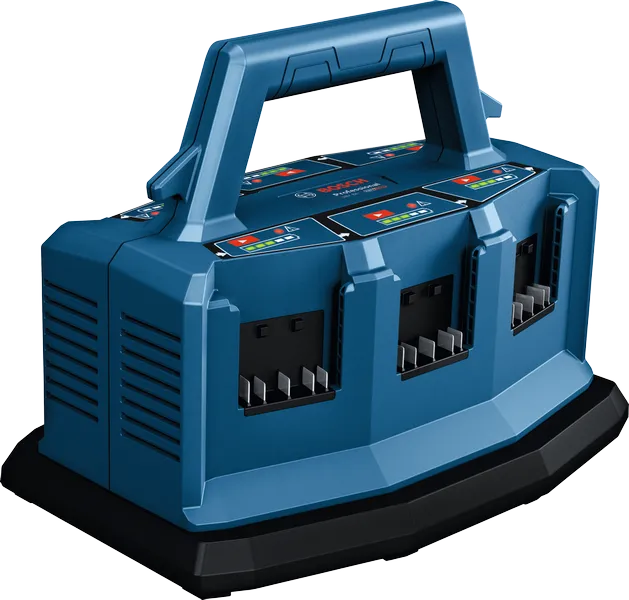

GAL 18V6-80 Professional
Charger
Continuous charging for non-stop work – multi-bay charger with 6 battery interfaces
- Fast charging speed with 8A current – ProCORE18V 8.0Ah charges to 80% in 42 min
- Efficient charge – 2 charging cycles ensure continuous work
- Priority Start Button – easy prioritisation of a selected battery
Functions & key features
GAL 18V6-80 Professional
Your Selection
Order number: 1 600 A01 U9M
Find a local dealerIncluded in this variant
-
Cardboard box
-
L-BOXX adapter for GAL 18V6-80
Technical data
Additional data |
|
|---|---|
| Battery charging voltage | 14.4 – 18 V |
| Charge current | 8 A |
| Weight | 1.8 kg |
| Battery voltage | 18.0 V |
| Charg. time at bat. cap. 2.0 Ah (80%/100%) approx. | 16/24 min |
| Charg. time at bat. cap. 4.0 Ah (80%/100%) approx. | 23/37 min |
| Charg. time at bat. cap. 5.0 Ah (80%/100%) approx. | 28/47 min |
| Charg. time at bat. cap. 6.0 Ah (80%/100%) approx. | 32/57 min |
| Charg. time ProCORE18V 4.0 Ah (80%/100%) approx. | 32/50 min |
| Charg. time ProCORE18V 8.0 Ah (80%/100%) approx. | 42/68 min |
| Charg. time ProCORE18V 12.0 Ah (80%/100%) approx. | 65/96 min |
* You can find more information about the deviations in the following link:
GAL 18V6-80 Professional: Further information
Product Highlights
The GAL 18V6-80 offers continuous charging on the job or overnight in two cycles. The first cycle charges up to six batteries sequentially up to 80%. Cycle two then completes the process, charging all batteries to 100%. Thanks to an 8A charging current, ProCORE18V 8.0Ah batteries load up to 80% in just 42 minutes. Charge-level indicators with 5 LEDs on each charging interface display precise charging progress. With a Priority Start Button for each interface, the cycle can be interrupted to start charging the selected battery immediately.
Equipment & Application
The GAL 18V6-80 is compatible with 18V batteries. Fixing the multi-bay charger to an L-BOXX avoids potentially harmful movements when transporting. The charger's handle features pegs that allow its cable to be wound neatly in place for storage and safe transportation.
